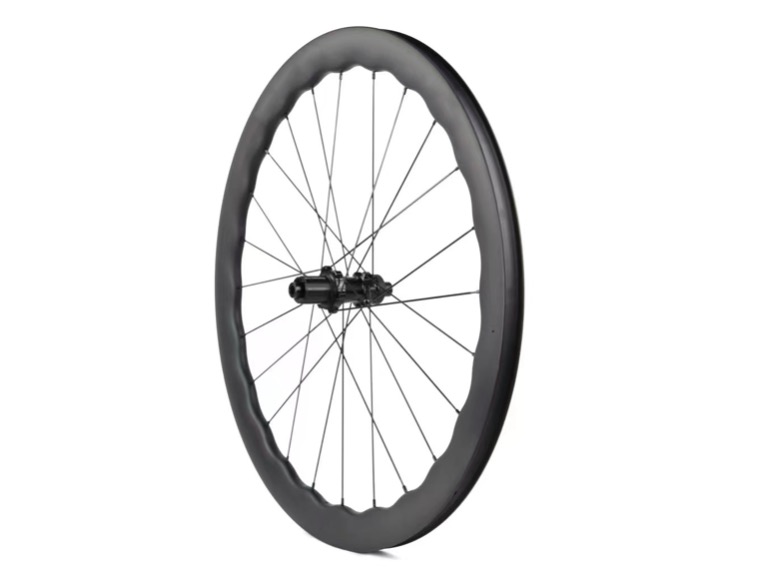

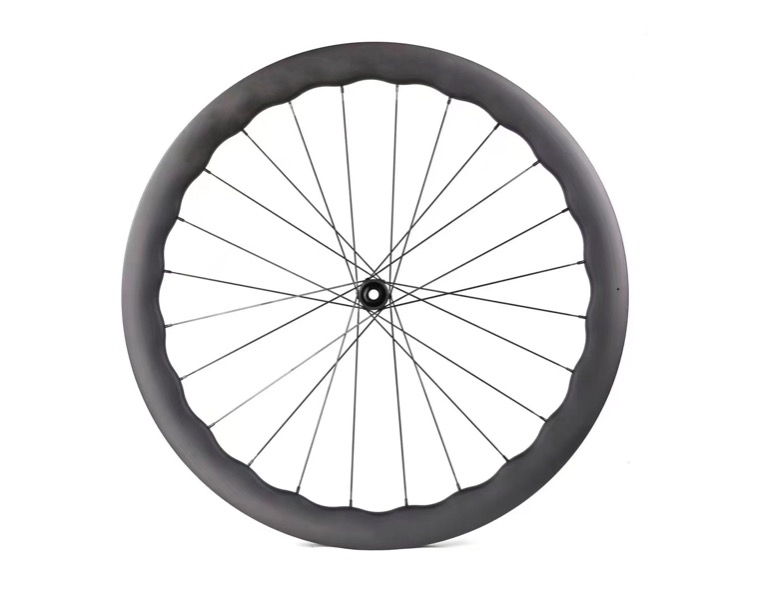

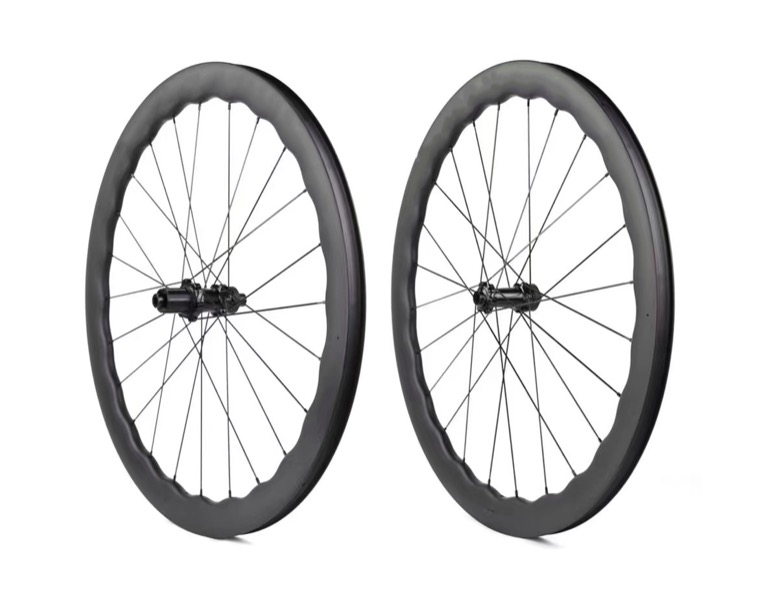

21mm Internal Wide Wavy Shape Carbon Road Disc Tubeless Wheelset
- Item Num :
- SC-28WHD35WS / SC-28WHD40WS / SC-28WHD45WS / SC-28WHD50WS / SC-28WHD68WS

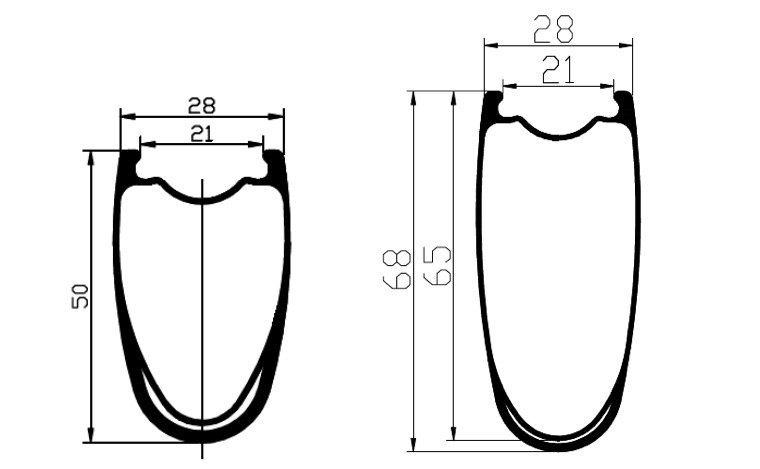

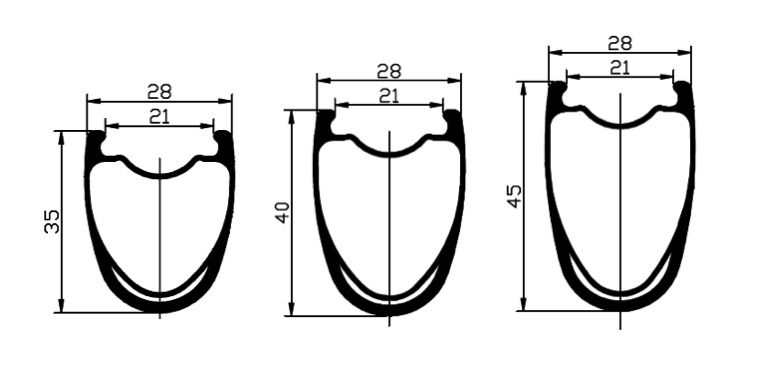

Rims
Material: Toray T700 / T800
Size: 700C
External Width: 28mm
Internal Width: 21mm
Depth: 35mm / 40mm / 45mm / 50mm / 68mm
Weave: UD / 3K / 12K / Butterfly Pattern
Finish: Matte / Gloss / Non-Paint
Spoke count: 24/24H
Nipple hole: External / Internal
Weight: From 1280g+/-30g
Rider weight limit: 120KG
Max tire pressure: 125PSI
Max spoke tension: 140KGF
Flatness: ≤0.2mm
Roundness: ≤0.3mm

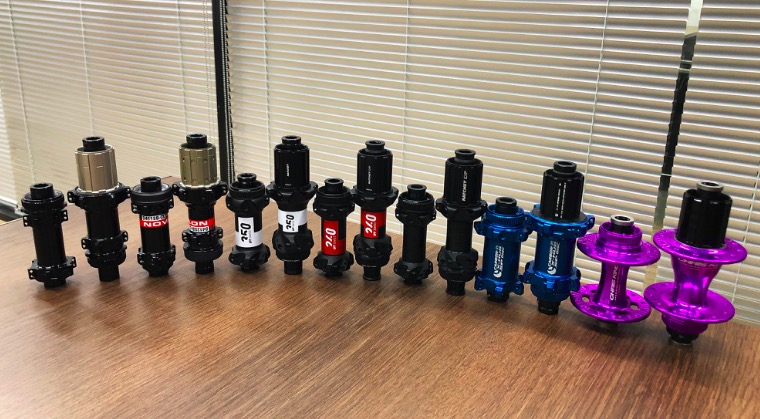

Hubs
Powerway CT43 (308g)
Novatec D411/D412 (329g)
DT Swiss 350 (364g)
DT Swiss 240 (310g)
DT Swiss 180 (284g)
Carbon-Ti X-HUB SP DISC (286g)
Chris King R45D (404g)
Spokes
Sapim CX-Ray
Pillar PSR AERO 1423
Highlights

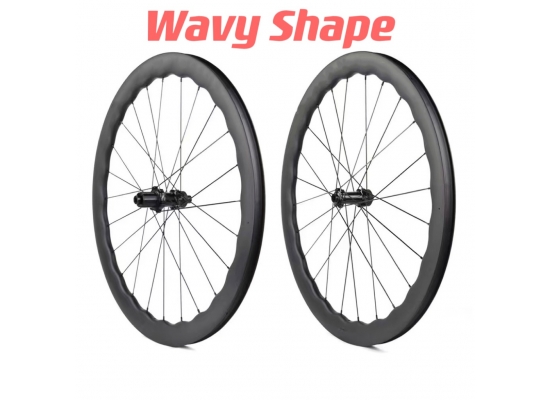

Wavy shape design (irregular structure) provides muti-angle bracing to increase the strength / rigidity.
With a nice aero profile and rim shape designed to help crosswind stability.
Precise layup design with super smooth 3k inside wall results a light weight rim.
