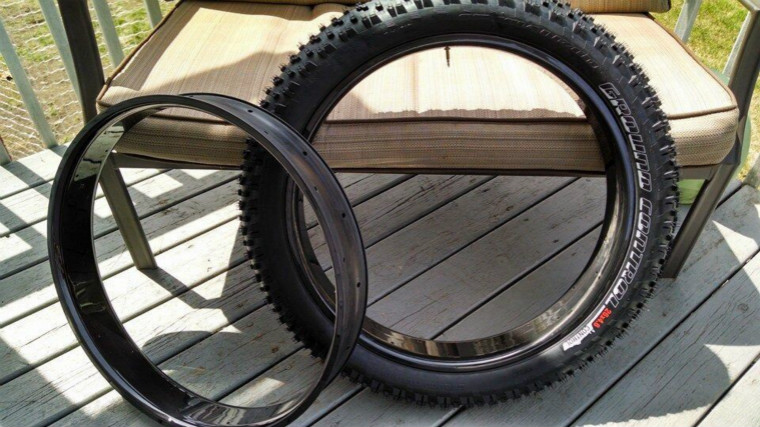

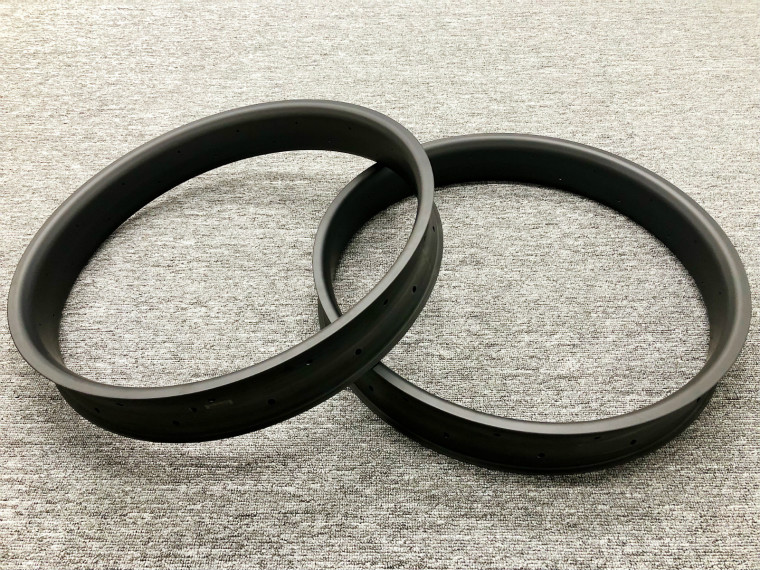

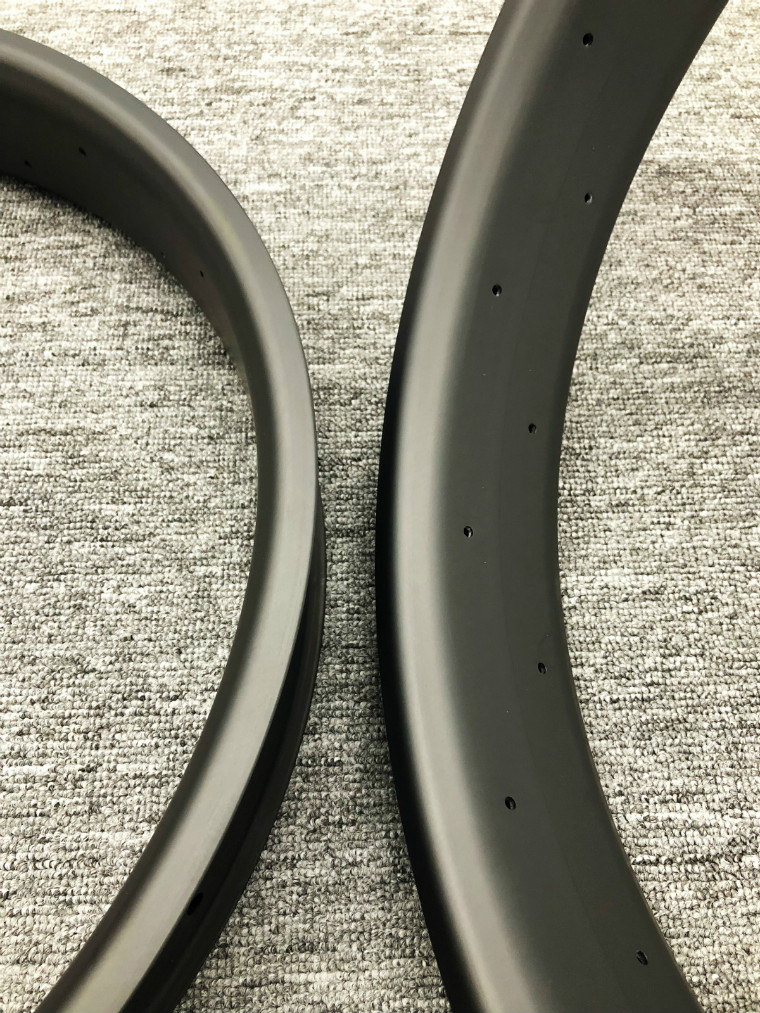

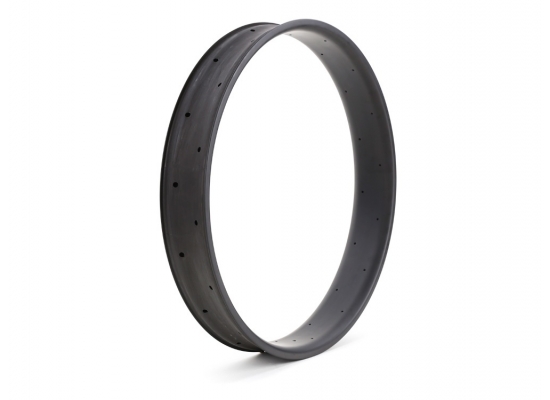

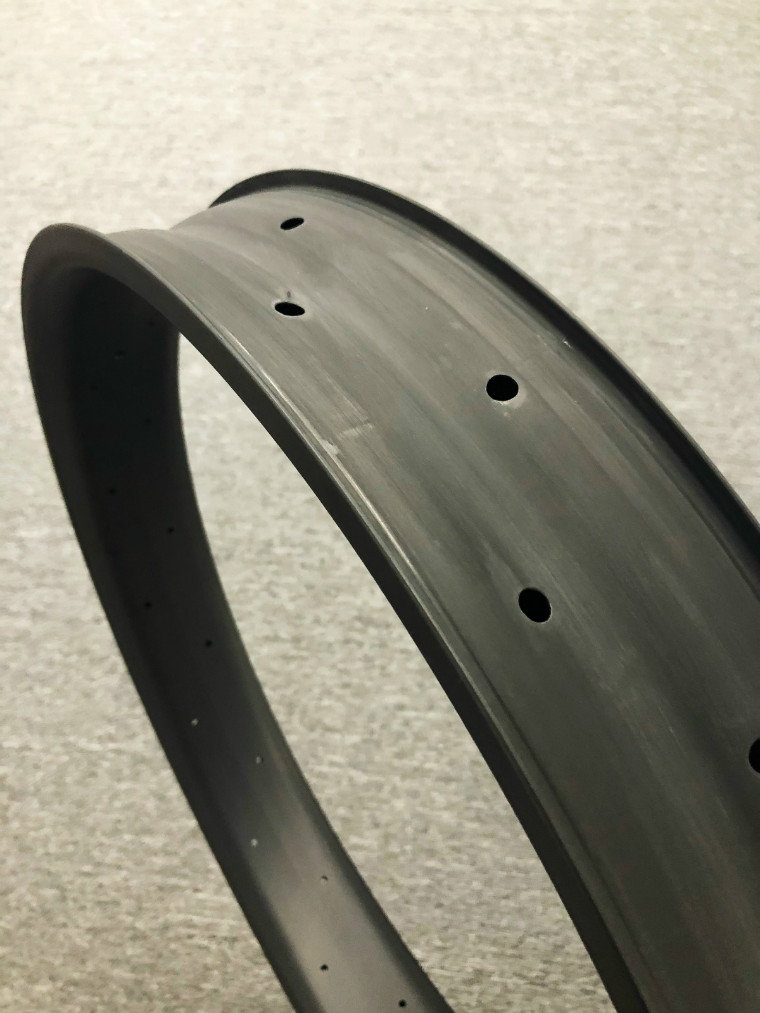

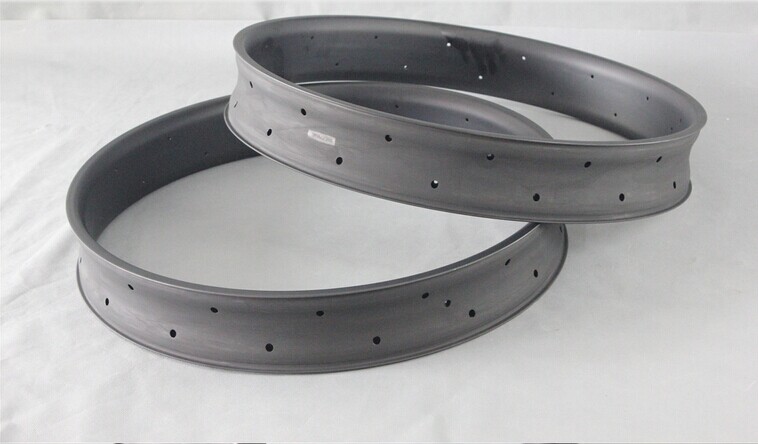

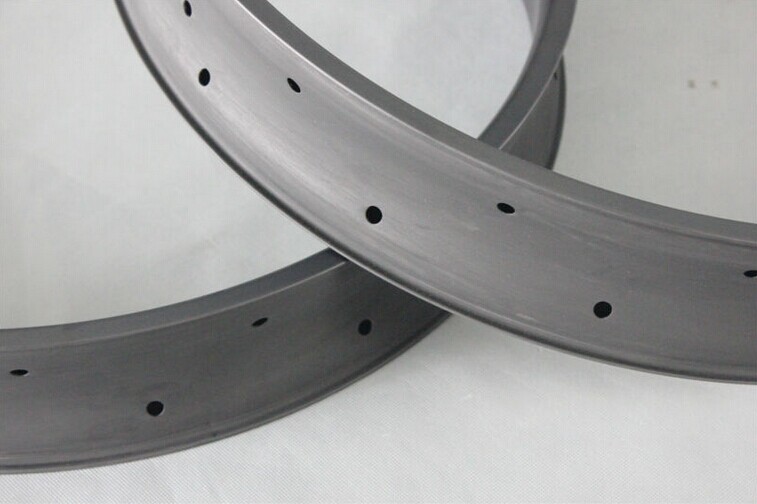

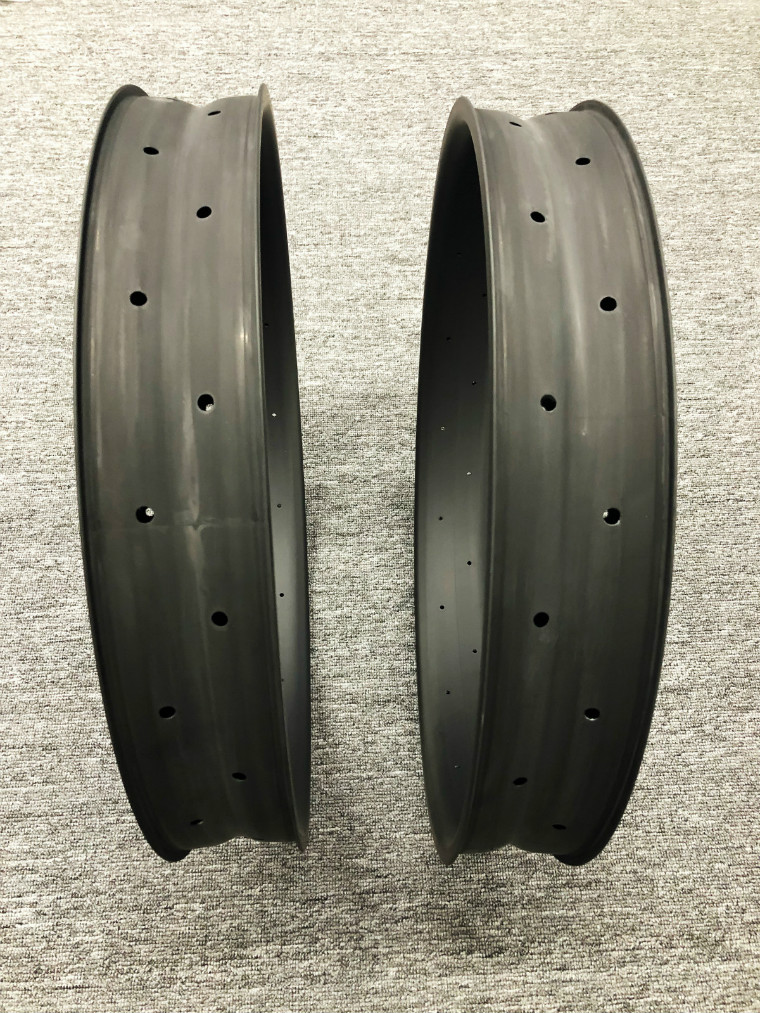

26er 90mm wide carbon fat bike rims (SC-90F25H26)

  • Item Num :
  • SC-90F25H26
Product Details

Overview

The 90mm rims allow quick, easy and well performing transitions from 3.8" tires to 4.8”, rather than needing a different rim for each size. Double wall construction at 650 grams achieves an optimal balance of weight, stiffness and durability. These rims are tubeless ready and perform great at super low pressure.



Specification

Material: Toray T700 Full Carbon Fiber

Weave: UD / 3K

Finish: Glossy / Matt

External Wide: 90mm

Internal Wide: 85mm

Rim Depth: 25mm

Spoke count: 32H / 64H

Weight: 670g+/-10g

ERD: 531mm

Max spoke tension: 300kgf

Tire: 3.8" ~ 4.8" wide

Rim tire: Clincher/Tubeless

New design: Double wall

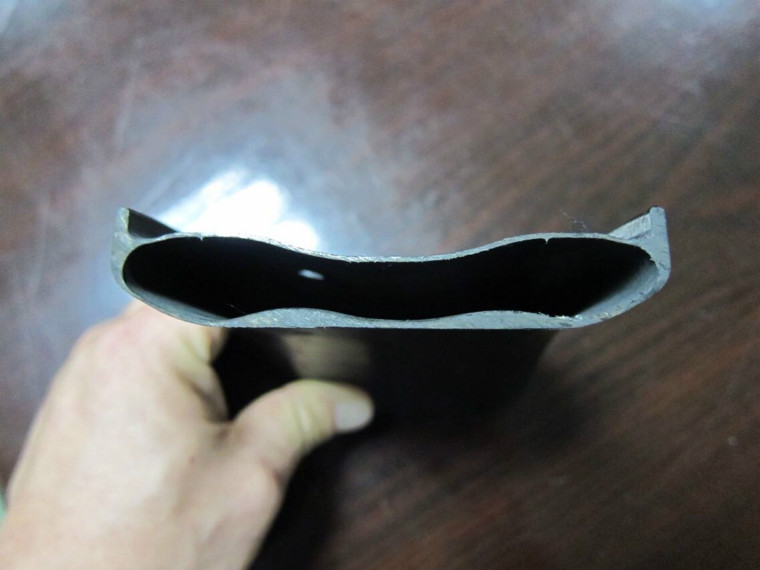

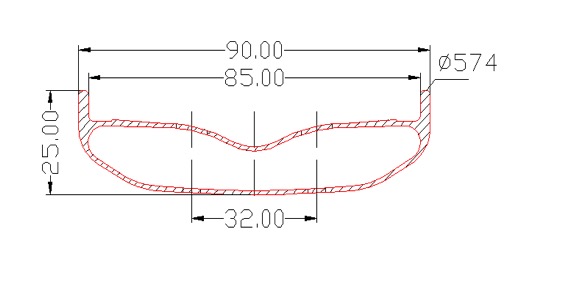

Cross Section
