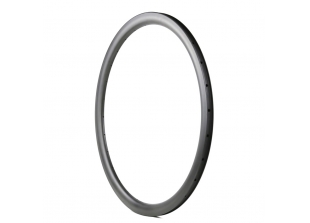

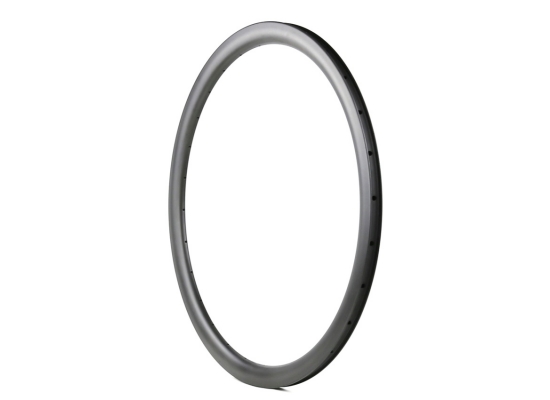

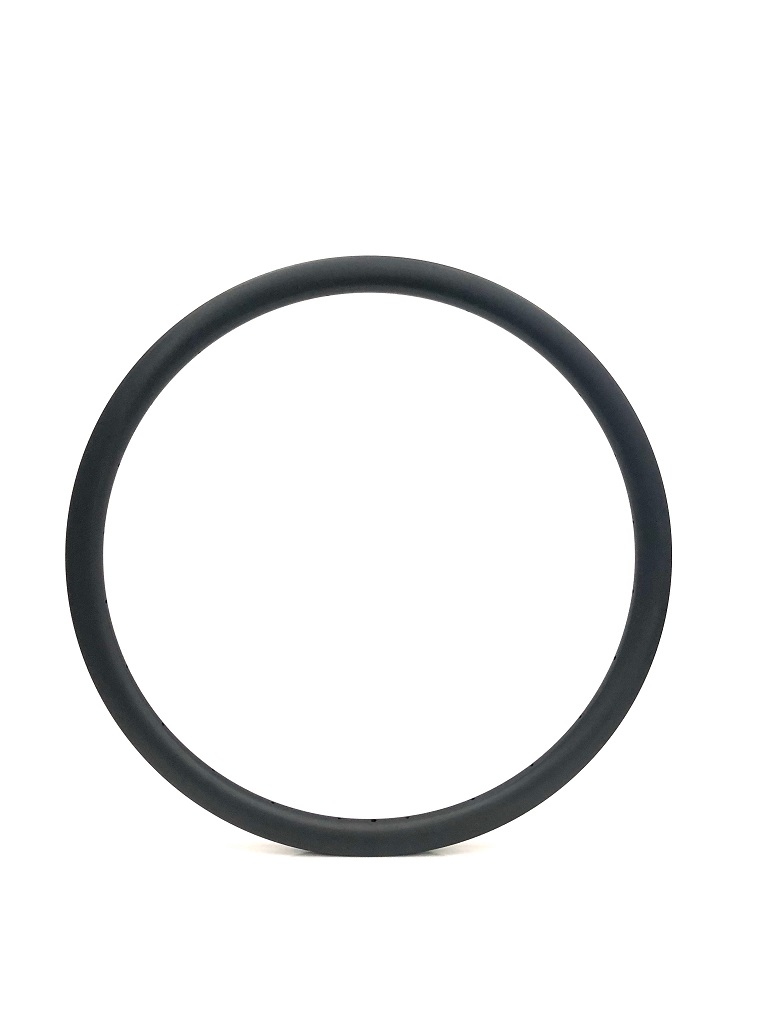

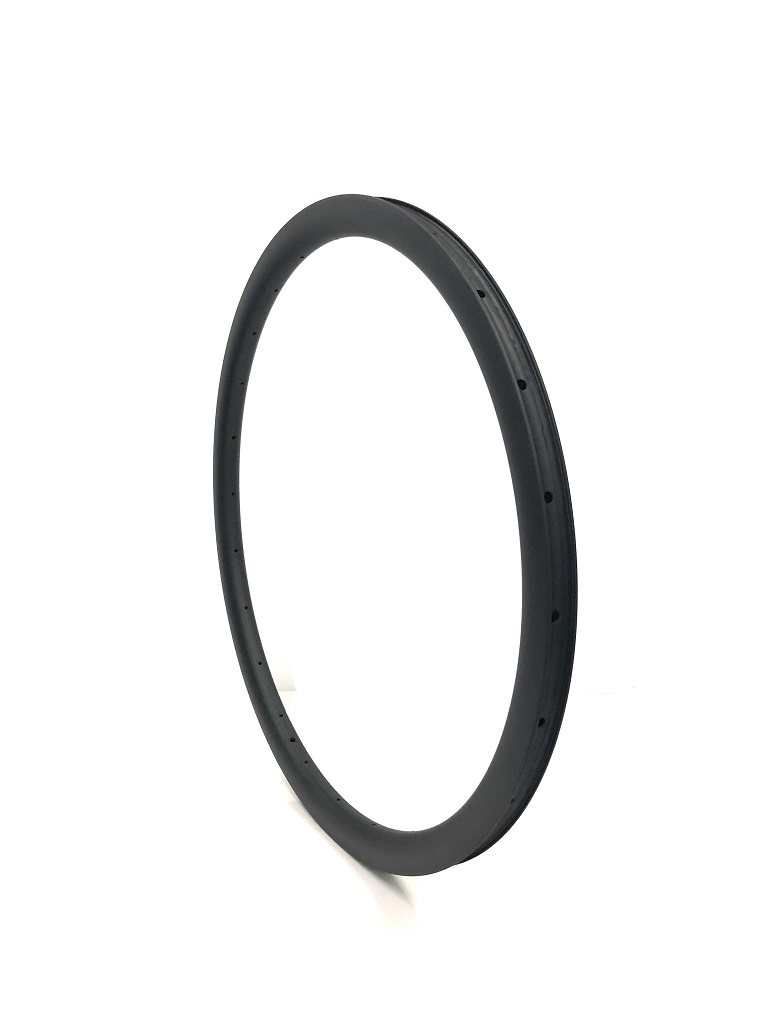

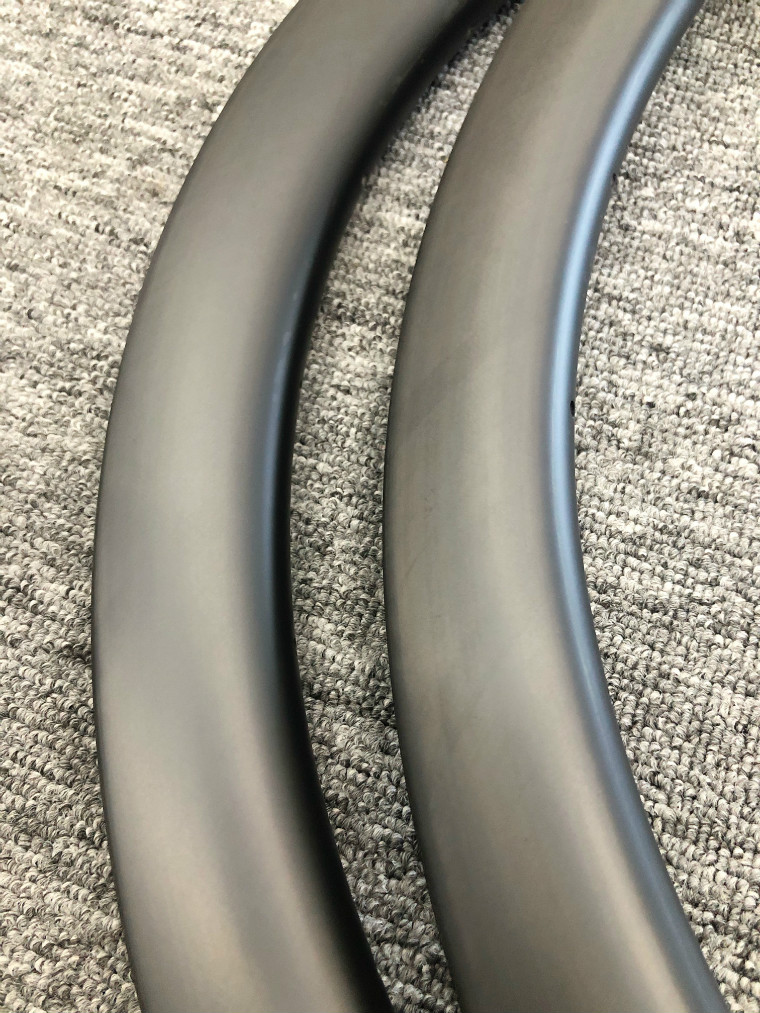

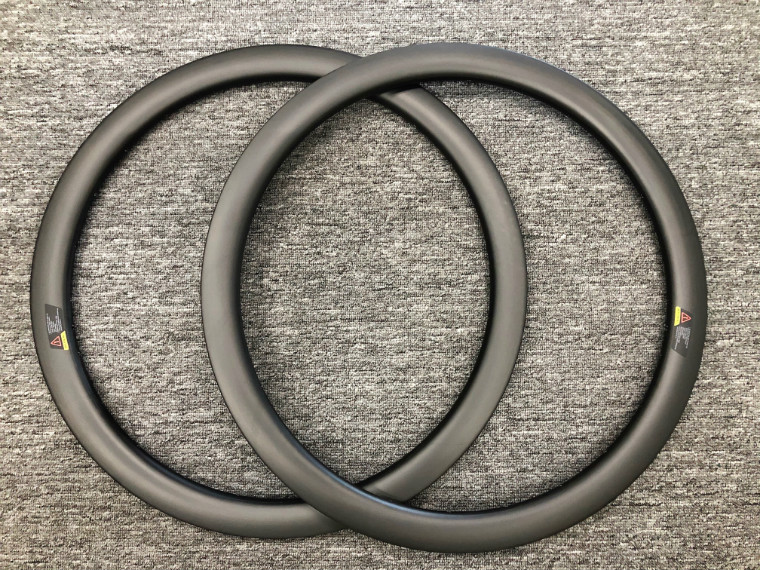

28mm Wide 35mm Filament Wound Carbon Road Disc Tubeless Rims (SC-28RD35TL)

  • Item Num :
  • SC-28RD35TL
Product Details

Filament wound series is the first choice and highest level, they are manufactured by filament winding machine and applied with self-developed yellow color high temp resin, the advanced manufacture tech and layup design make filament wound series more superior than other Chinese carbon rims. They have been used by lots of big brands and Tour-de-France pro teams for years.

Filament winding process offers precise and repeatable carbon construction, without the variability associated with hand layup, it results in a more consistent layup that allows a low proportion of resin to be used, reducing weight for the same strength.

The new 21mm internal wide provides better fit for higher volume tires that increase grip, lower rolling resistance and greater comfort. They have been optimized for crosswind stability at a variety of yaw angles.


Specs

Material: Toray T700 (Imported from Japan / Korea)

Size: 700C tubeless

Type: Disc Brake Only

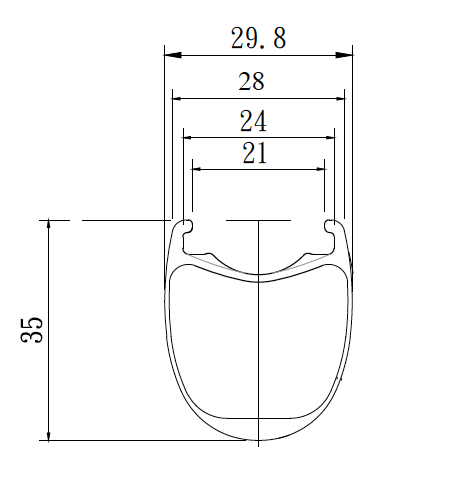

External Width: 28mm (Max 30mm)

Internal Width: 21mm

Depth: 35mm

Finish: UD Matt / UD Glossy (Customized with your logo artworks)

Spoke count: 24/24H

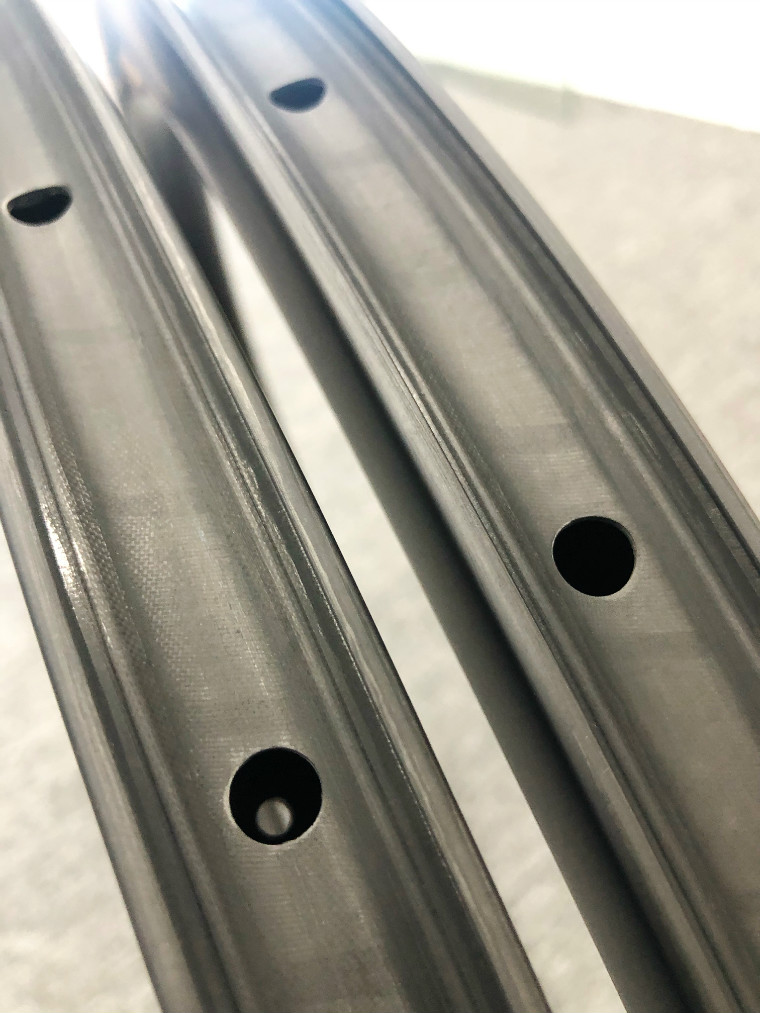

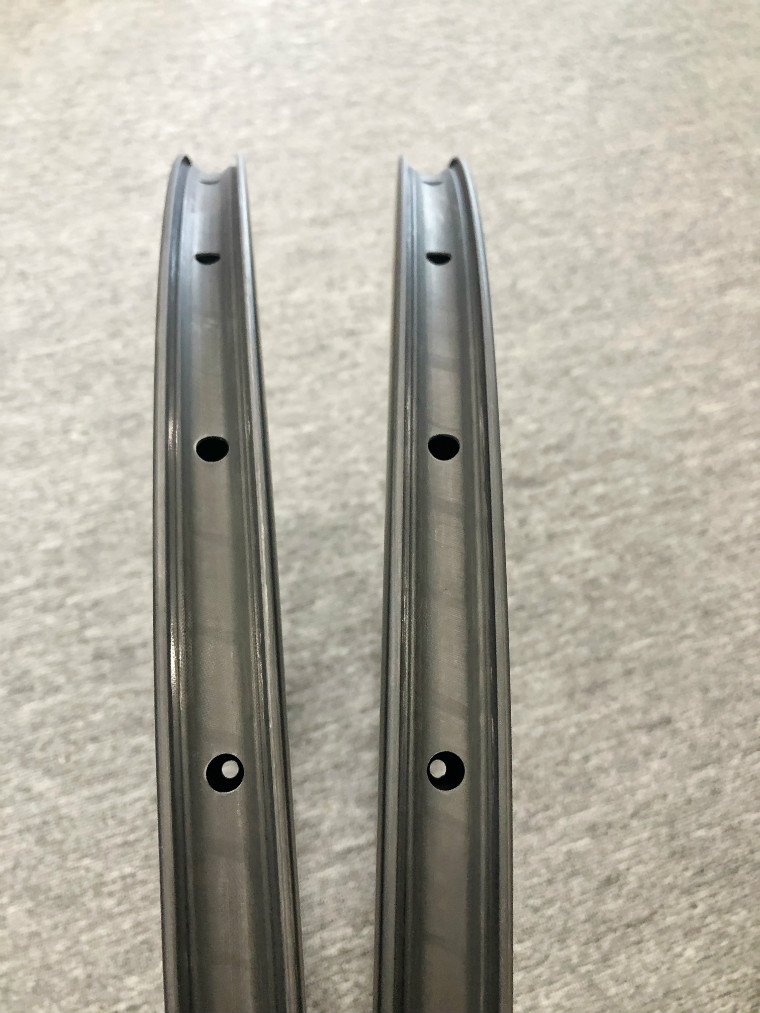

Nipple hole: External / Internal

Weight: 420g+/-15g

ERD: 568.2mm

Rider weight limit: 120KG

Max tire pressure: 125PSI

Max spoke tension: 140KGF

Flatness: ≤0.2mm

Roundness: ≤0.3mm



Highlights

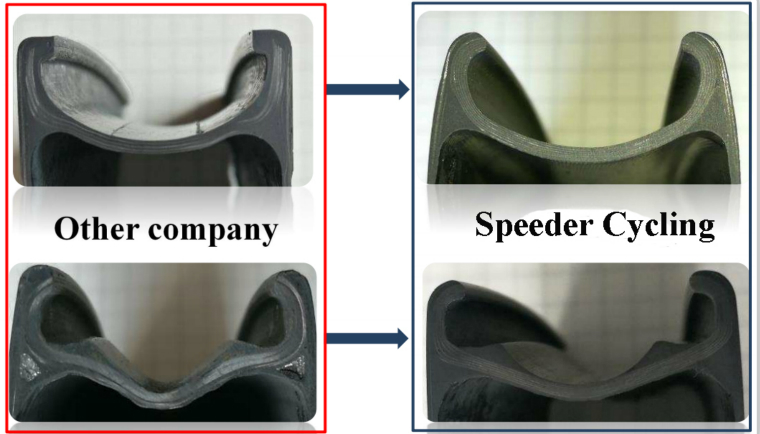

  • Patented filament winding process to ensure that each carbon fiber layer can be distributed evenly and bonded tightly, enabling its strength to reach a maximum value. Also machine managed process can avoid the random layup errors and result higher accuracy & precision.

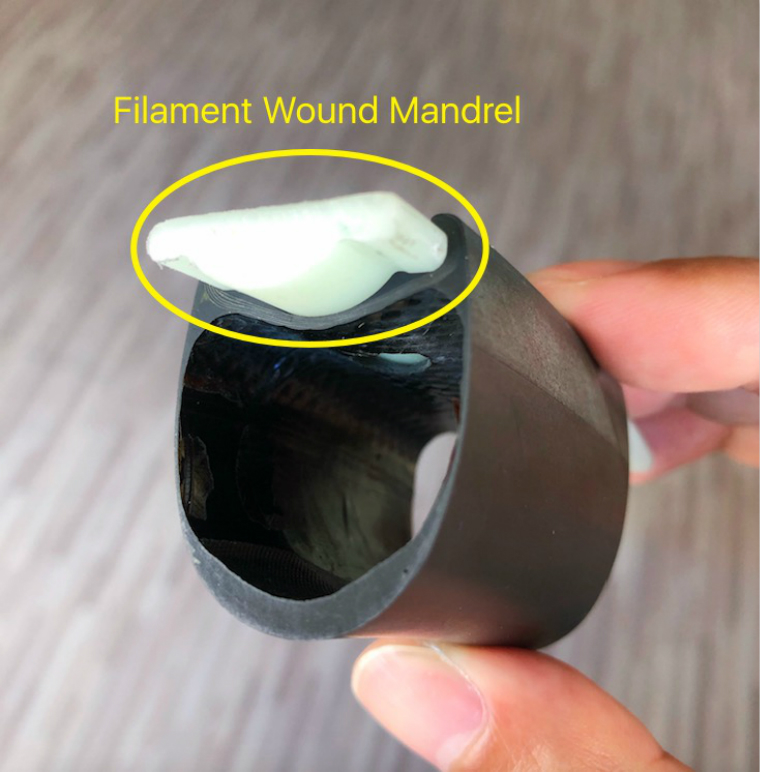

  • The rim bed is wound layer by layer in carbon fibre over a mandrel in a computer controlled process, this enables precise fibre orientation, continuous fibre paths, and higher fibre to resin ratios, resulting a more durable carbon rim.

  • Patented self-developed 240 degree high temperature resin, tested by DMA / DSC in house.
  • Carbon fiber pre-preg weaving in house, impregnating with own HTG resin system.
  • X-Ray machine to inspect the inside layup structure to guarantee the strength from every aspect.
  • First time 220 degree molding; Second time 230 degree baking 8 hours; Third time 230 degree baking 6 hours.
  • Full inspection of tire pressure test at 140psi for every rim.
  • Rim profile designed by American composite expert who use CFD work to optimize the aerodynamics.
  • UCI / ISO test standard; Wind tunnel test in Arizona USA.
