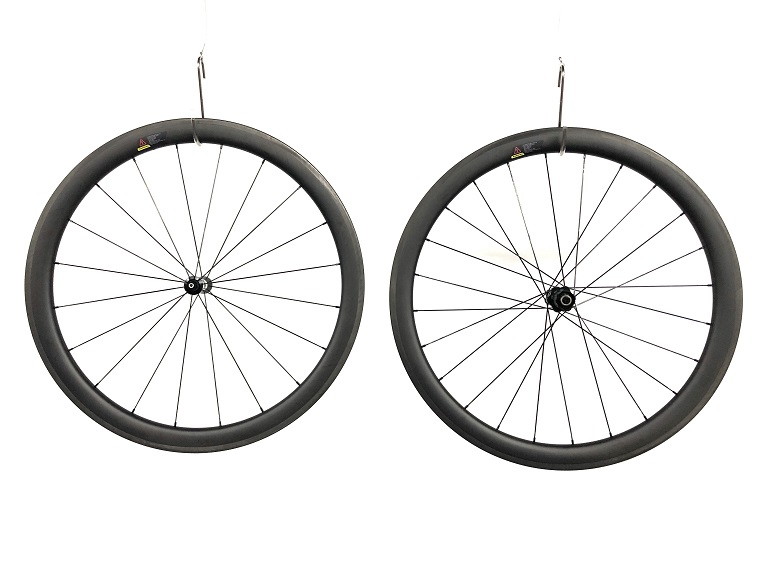

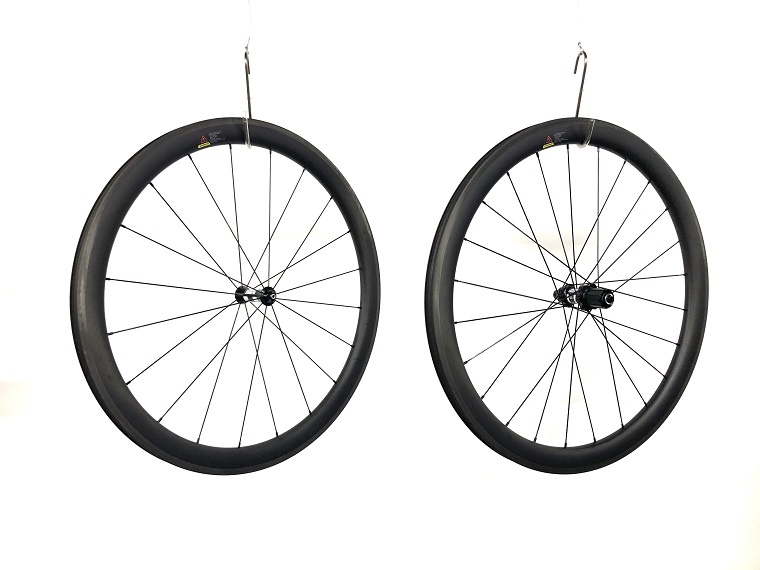

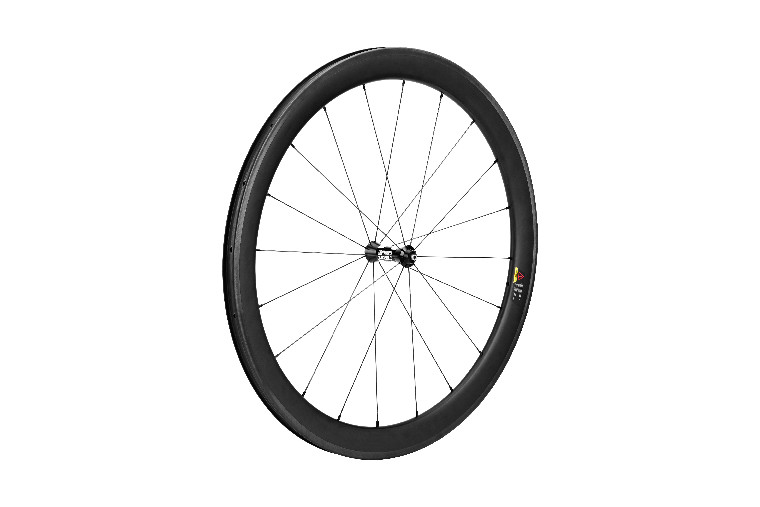

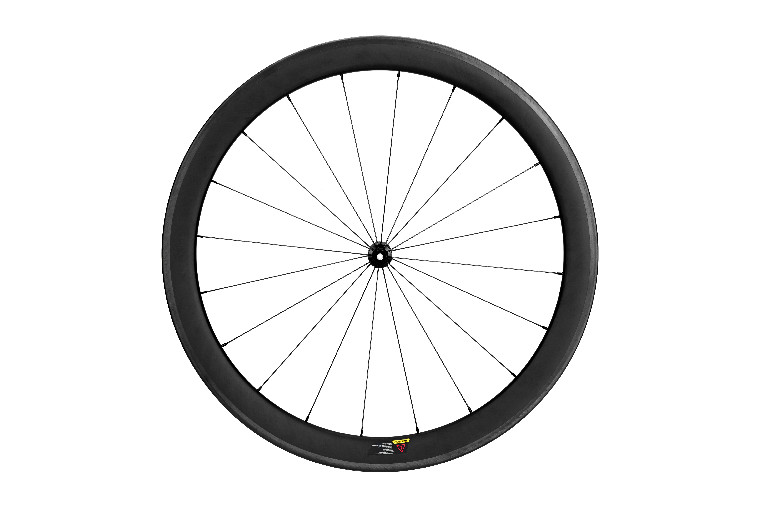

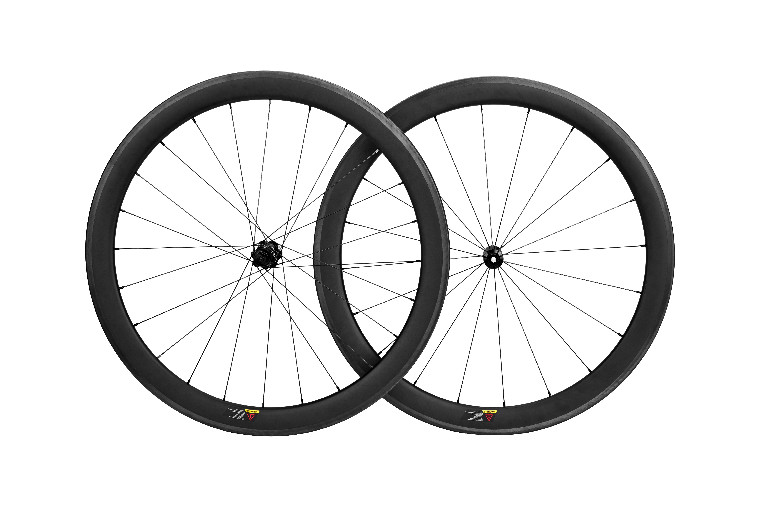

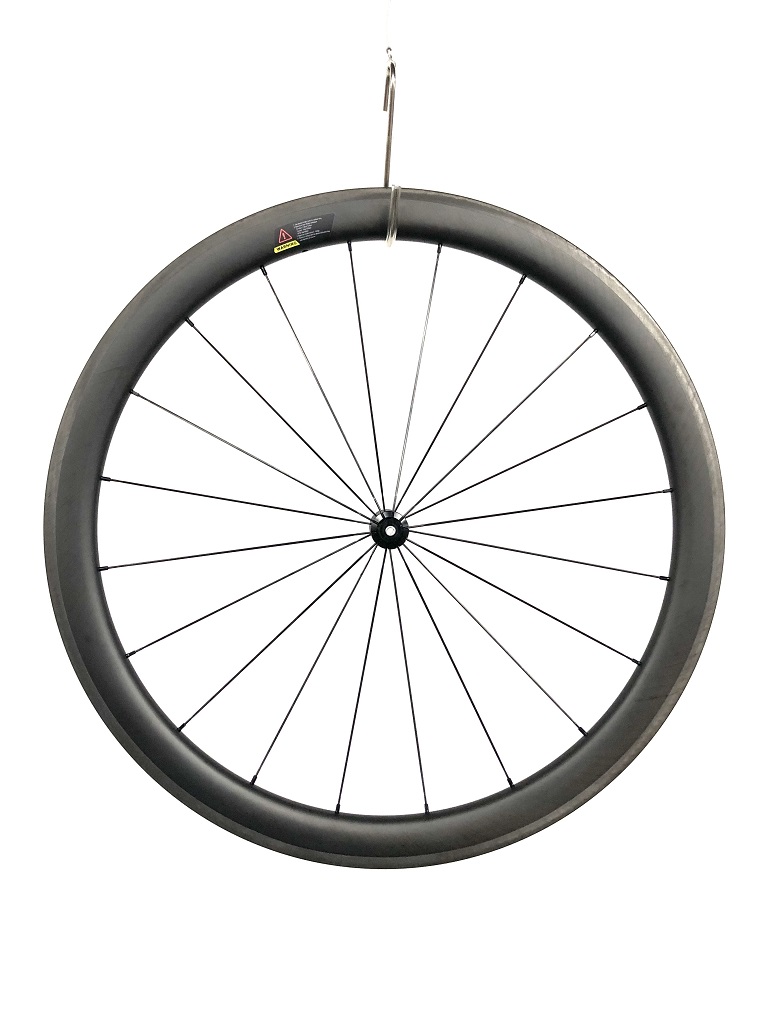

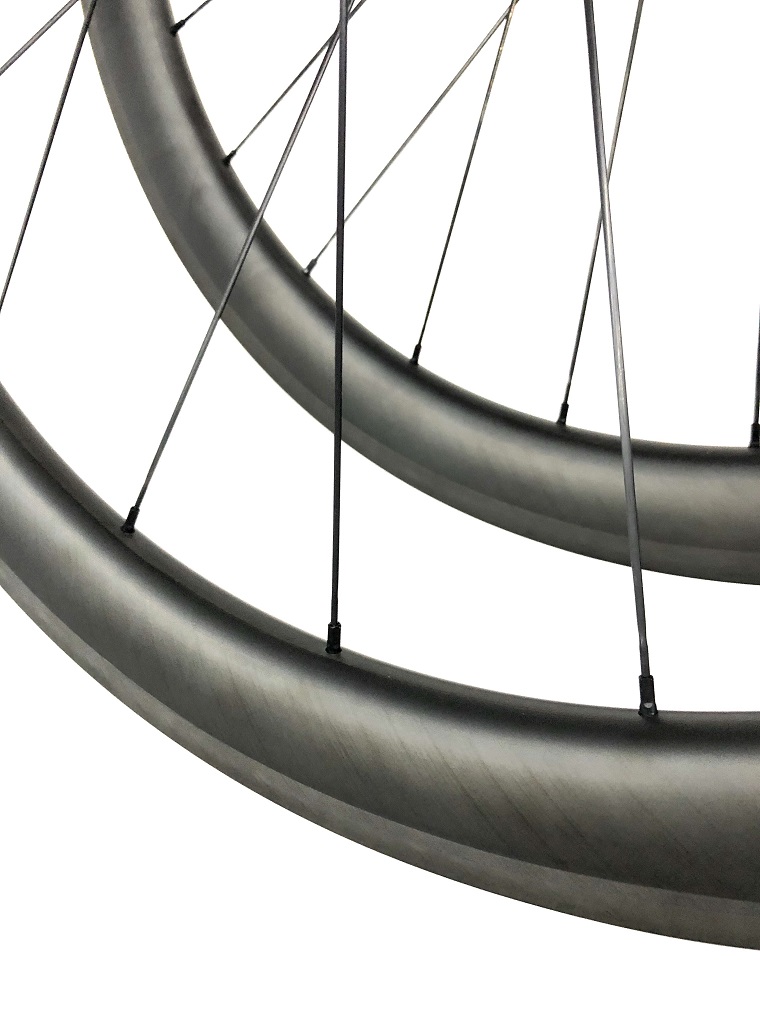

28mm wide 35mm filament wound carbon road clincher & tubeless wheelset (SC-28WH35TL)

  • Item Num :
  • SC-28WH35TL
Product Details

Filament wound series is the first choice and highest level, they are manufactured by filament winding machine and applied with self-developed yellow color high temp resin, the advanced manufacture tech and layup design make filament wound series more superior than other Chinese carbon rims. They have been used by lots of big brands and Tour-de-France pro teams for years.

Filament winding process offers precise and repeatable carbon construction, without the variability associated with hand layup, it results in a more consistent layup that allows a low proportion of resin to be used, reducing weight for the same strength.

The new 21mm internal wide provides better fit for higher volume tires that increase grip, lower rolling resistance and greater comfort. They have been optimized for crosswind stability at a variety of yaw angles.


Rims                                                                                 Hubs

Material: Toray T700 (Imported from Japan / Korea)                        Novatec 291/482 SL

Size: 700C                                                                                        Powerway R13 / R36 / R39

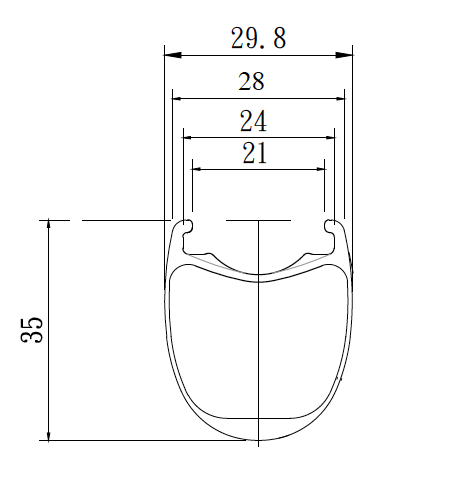

External Width: 28mm (Max 30mm)                                                 Bitex RAF10 / RAR9

Internal Width: 21mm                                                                        DT350s

Depth: 35mm                                                                                    DT240s

Weave: UD                                                                                       White Industries T11

Finish: Matt / Glossy (Customized with your logos)                           Spokes

Spoke count: 20/24H                                                                          Pillar PSR AERO 1423

Nipple hole: External / Internal                                                            Sapim CX-Ray

Weight: From 1430g+/-20g (Varied with different hubs and spokes)

Rider weight limit: 120KG

Max tire pressure: 125PSI

Max spoke tension: 140KGF

Flatness: ≤0.2mm

Roundness: ≤0.3mm



Highlights

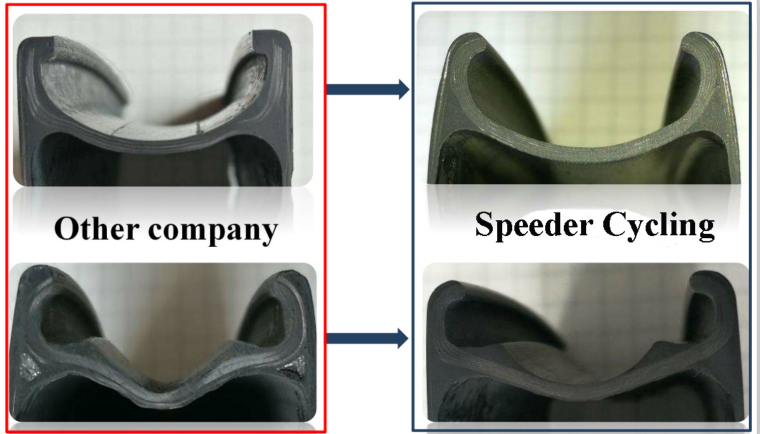

  • Patented filament winding process to ensure that each carbon fiber layer can be distributed evenly and bonded tightly, enabling its strength to reach a maximum value. Also machine managed process can avoid the random layup errors and result higher accuracy & precision.

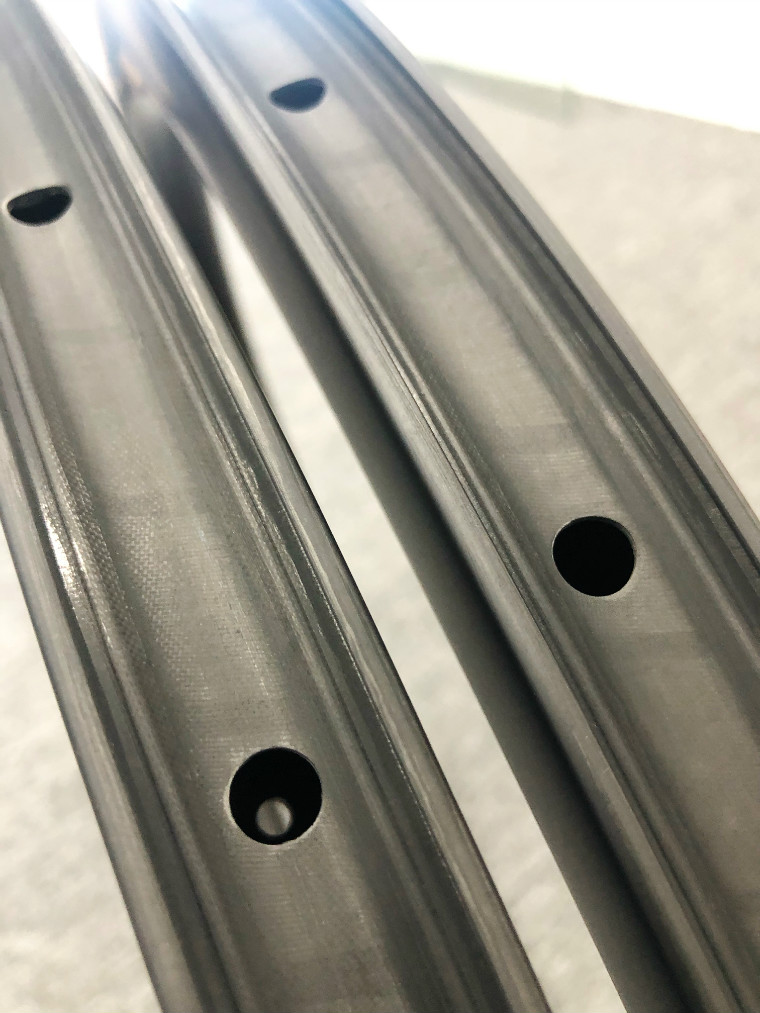

  • The rim bed is wound layer by layer in carbon fibre over a mandrel in a computer controlled process, this enables precise fibre orientation, continuous fibre paths, and higher fibre to resin ratios, resulting a more durable carbon rim.

  • Patented self-developed 240 degree high temperature resin, tested by DMA / DSC in house.
  • Carbon fiber pre-preg weaving in house, impregnating with own HTG resin system.
  • X-Ray machine to inspect the inside layup structure to guarantee the strength from every aspect.
  • First time 220 degree molding; Second time 230 degree baking 8 hours; Third time 230 degree baking 6 hours.
  • Full inspection of tire pressure test at 140psi for every rim.
  • Rim profile designed by American composite expert who use CFD work to optimize the aerodynamics.
  • UCI / ISO test standard; Wind tunnel test in Arizona USA.

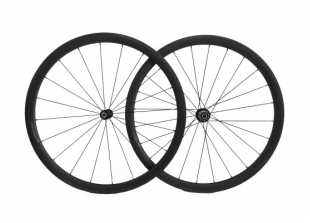

Related Products
