28mm wide 45mm carbon road clincher & tubeless wheelset (SC-28WH45TL)

  • Item Num :
  • SC-28WH45TL
Product Details
Filament wound series is the first choice and highest level, they are manufactured by filament winding machine and applied with self-developed yellow color high temp resin, the advanced manufacture tech and layup design make filament wound series more superior than other Chinese carbon rims. They have been offering to some famous riders and big brands in the world.

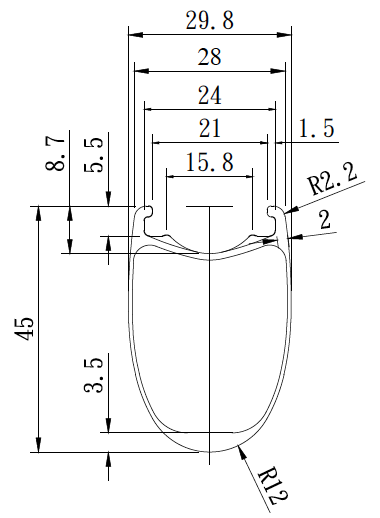

Rims                                                                                 Hubs

Material: Toray T700 (Imported from Japan / Korea)                        Novatec 291/482 SL

Size: 700C                                                                                        Powerway R13 / R36 / R39

External Width: 28mm                                                                       Bitex RAF10 / RAR9

Internal Width: 21mm                                                                        DT350s

Depth: 45mm                                                                                    DT240s

Weave: UD                                                                                       White Industries T11

Finish: Matt / Glossy (Customized with your logos)                           Spokes

Spoke count: 20/24H                                                                          Pillar PSR AERO 1423

Nipple hole: External / Internal                                                            Sapim CX-Ray

Weight: From 1460g+/-20g (Varied with different hubs and spokes)

Rider weight limit: 120KG

Max tire pressure: 125PSI

Max spoke tension: 140KGF

Flatness: ≤0.2mm

Roundness: ≤0.3mm
