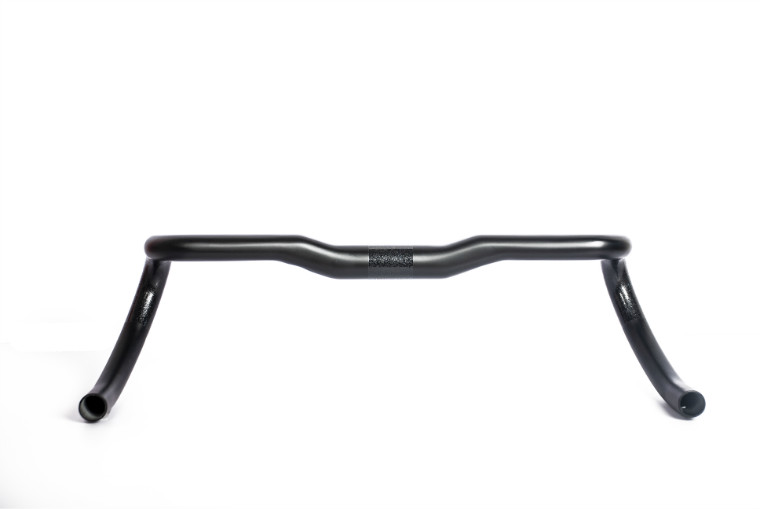

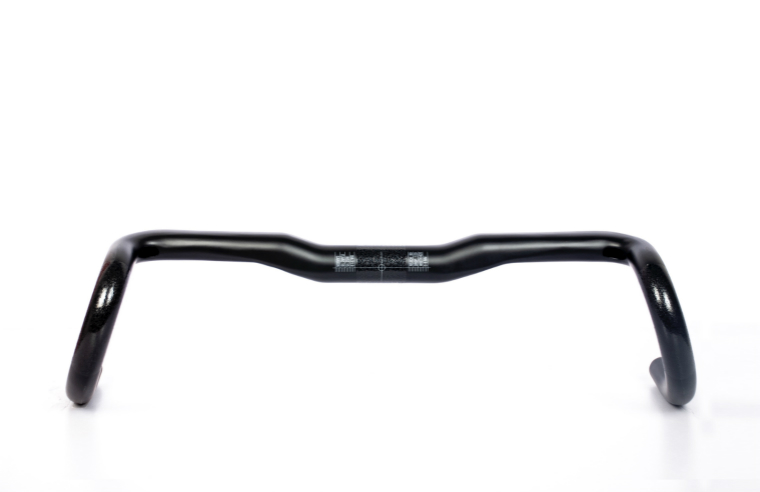

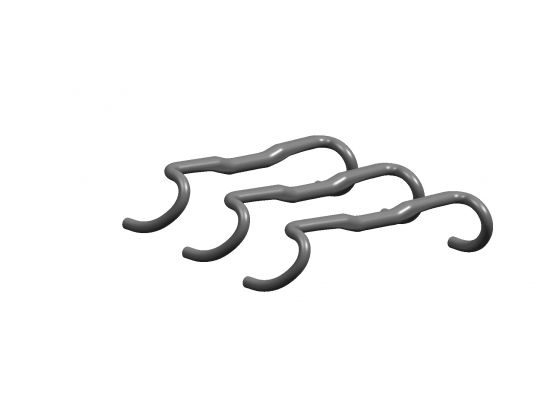

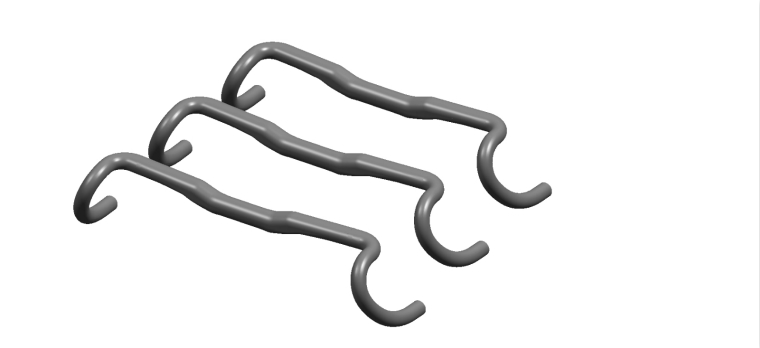

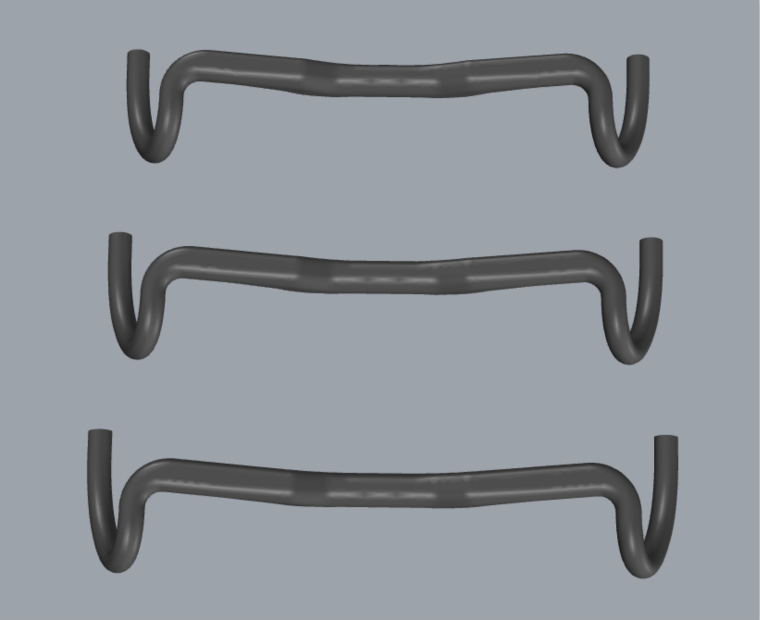

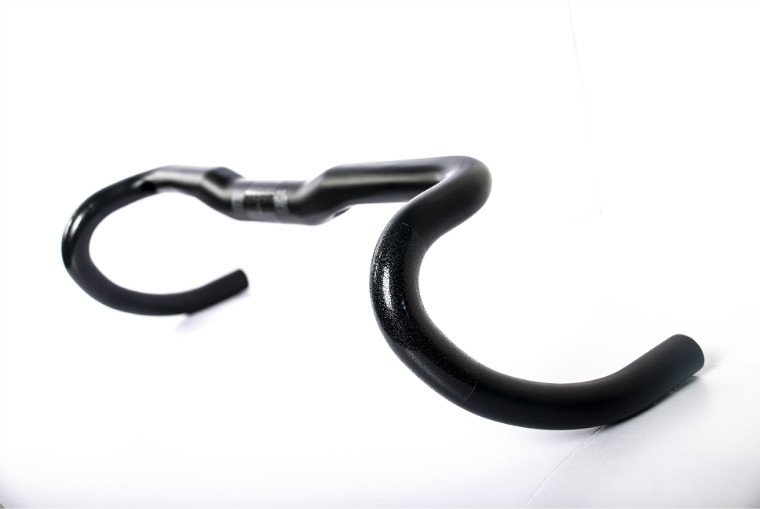

Carbon Gravel Flare 18° Handlebar (SC-GH01)

  • Item Num :
  • SC-GH01
Product Details

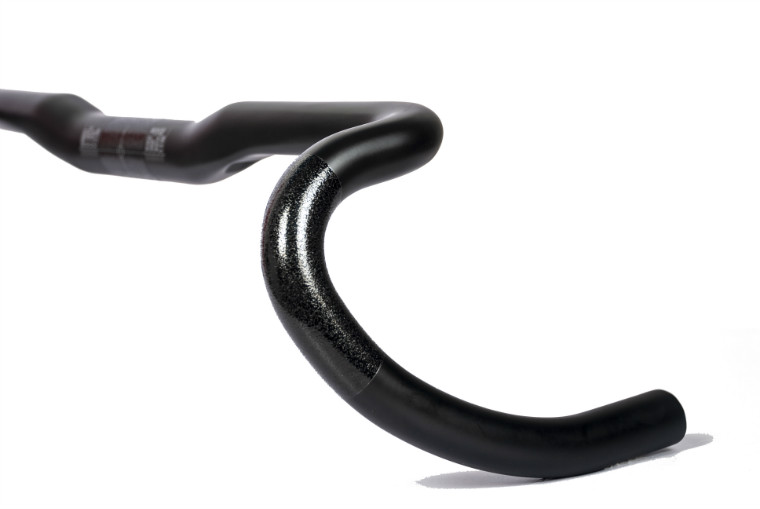

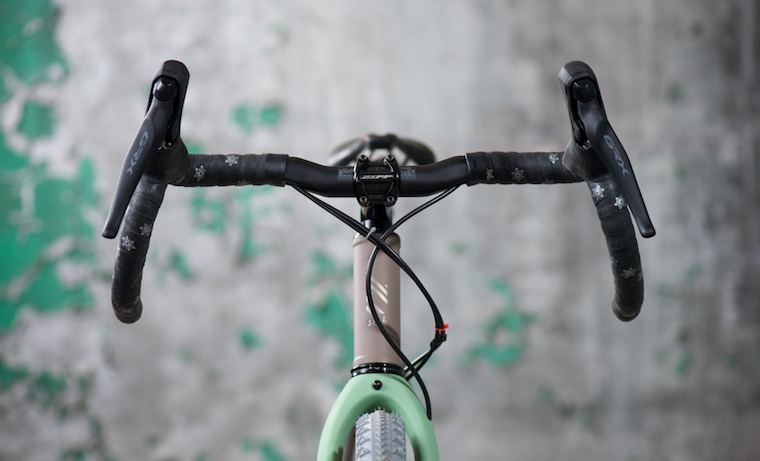

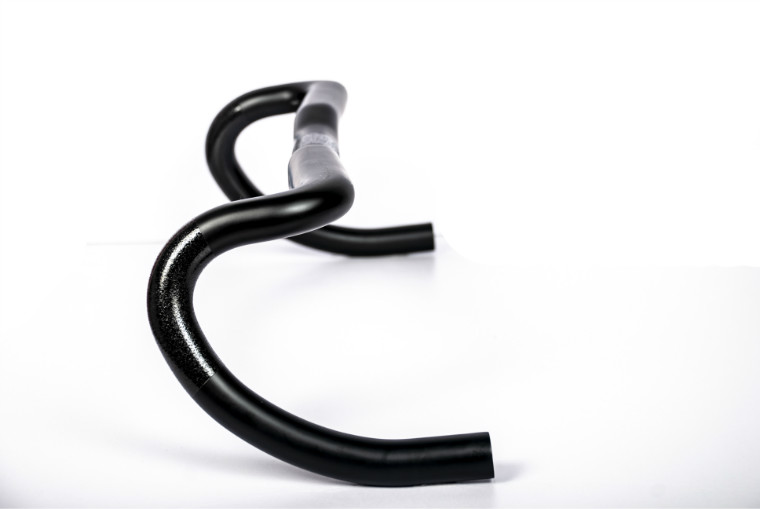

The carbon Gravel handlebar is designed for comfort and control in challenging situation, specifically aimed at long distance touring, Gravel, or off-road pursuit. The flare 18 degree or 89mm in the drops creates an increase stability when descending or riding in the drop position.

It is one of the stiffest gravel bar in the market that passed impact test in house (10kg weight on both side and release from 400mm). Stiffness is our first consideration when developing this bar, you must make sure it is strong as needs to carry weight from the bags and take big hits from the road.



Materials: Toray T700 / T800 Carbon

Finish: UD Matt Black

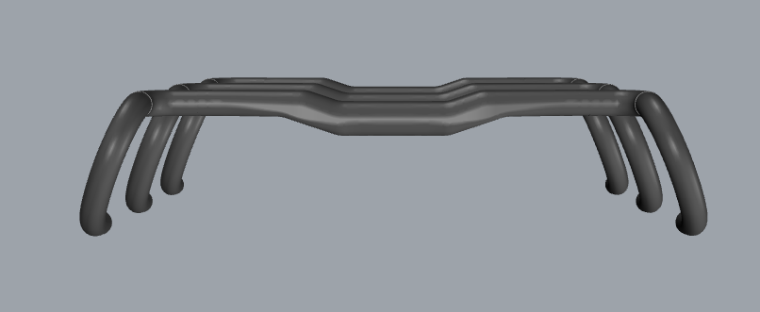

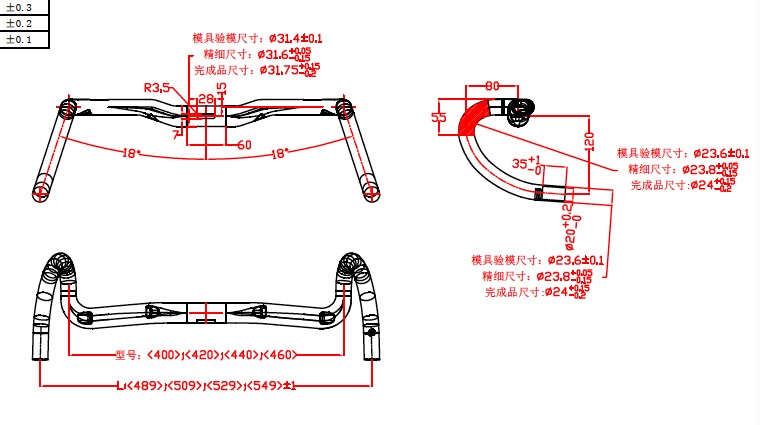

Width C to C in Hoods: 400mm / 420mm / 440mm / 460mm

Width C to C in Drops: 489mm / 509mm / 529mm / 549mm

Flare: 18 Degrees

Rise: 15mm

Drop: 120mm

Reach: 80mm

Weight: 260g+/-10g (400mm)

Clamp Diameter: 31.8mm

Torque Spec Faceplate: 5.5Nm

Torque Spec Controls: 6~8Nm

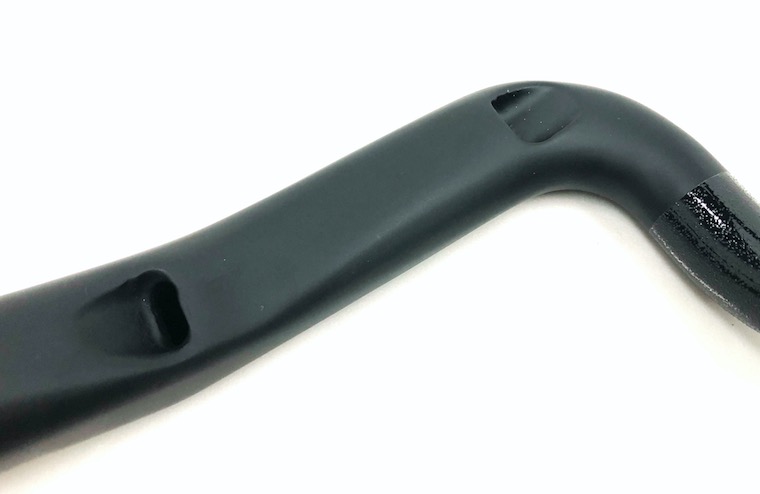

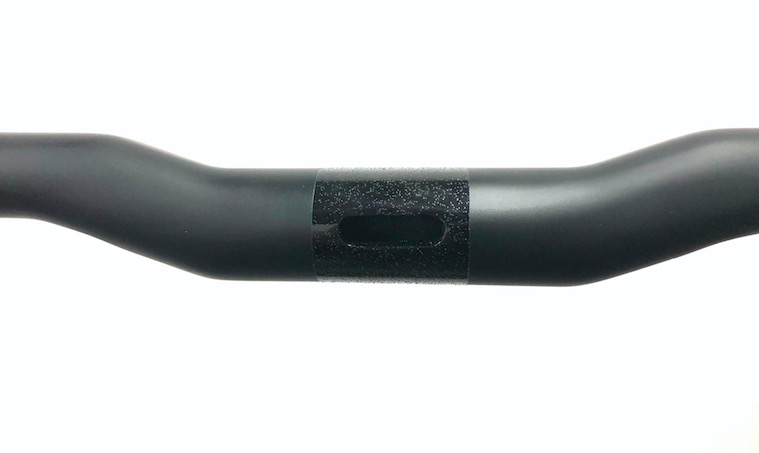

Cable Routing: Full Internal Compatible

Di2 Compatible: Yes (Di2 bar end junction)

Test: ISO 4210

Warranty: Two years
