Carbon Gravel Adventure Fork (SC-GXR19)

Specs

Type: Carbon Gravel Adventure Fork

Materials: Toray T700 Carbon

Finish: UD Matte Black

Steerer: 1 1/8" - 1 1/2"

Steerer Tube Length: 350mm

Crown Width: 56mm

Axle to Crown: 398mm

Rake: 50mm

Weight: 480g+/-15g (Pure)  520g+/-15g (Muddy with 8 bolts)

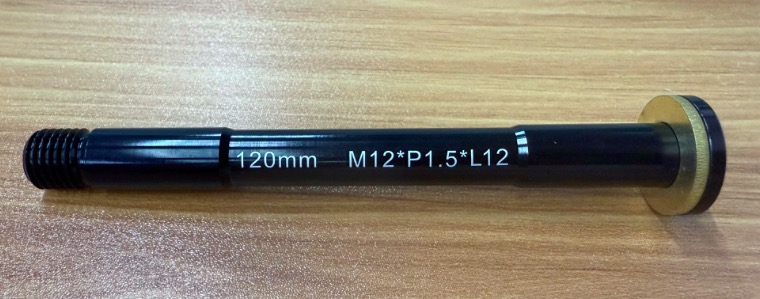

Thru Axle: 12x100mm

Tire Clearance: 700 x 50c

Brake: Flat Mount Disc Brake

Max Rotor Size: 160mm

Test: ISO 4210 (With a 15% increase in force)

Warranty: Two years

Version

Pure: With no eyelets

Muddy: With fender mounts / triple cage mounts / dynamo cable routing holes

Cable Routing

Option 1: Regular cable routing

Option 2: Fully integrated cable routing
