Carbon Integrated Gravel Frameset (SC-G54D)

Specs

Material: Toray M40J T700 / T800

Type: Gravel

Appearance: UD Marble

Finish: Gloss / Matt (can offer custom painting)

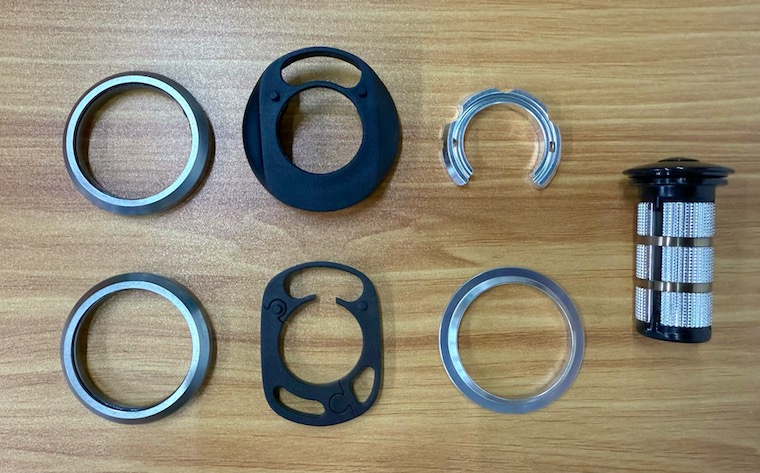

Headset: 1 1/2"

BB: T47*85.5

Weight: 1090g+/-35g (51cm) - With all the aluminum parts / bolts installed

Frame Size: 46cm / 48cm / 51cm / 53.5cm / 56cm

Handlebar Size: 375mm / 395mm / 415mm / 435mm (C to C in hoods)

Stem Size: 85mm / 95mm / 105mm / 115mm / 125mm

Cable Routing: Full Internal

Hanger Syetem: UDH

Di2 Compatible: Yes

Disc Mount: Flat Mount

Rack Mounts: Yes

Tire: 700 x 40c

TA: 12x100mm / 12x142mm

Test: ISO 4210

Warranty: Two Years

Version

Race

425mm chain stay

no rack mounts on the rear triangle

no triple cage mounts on the fork

no extra bottle cage mounts on the top of top tube and bottom of down tube

Adventure

435mm chain stay

with rack mounts on the rear triangle

with triple cage mounts on the fork

with extra bottle cage mounts on the top of top tube and bottom of down tube
