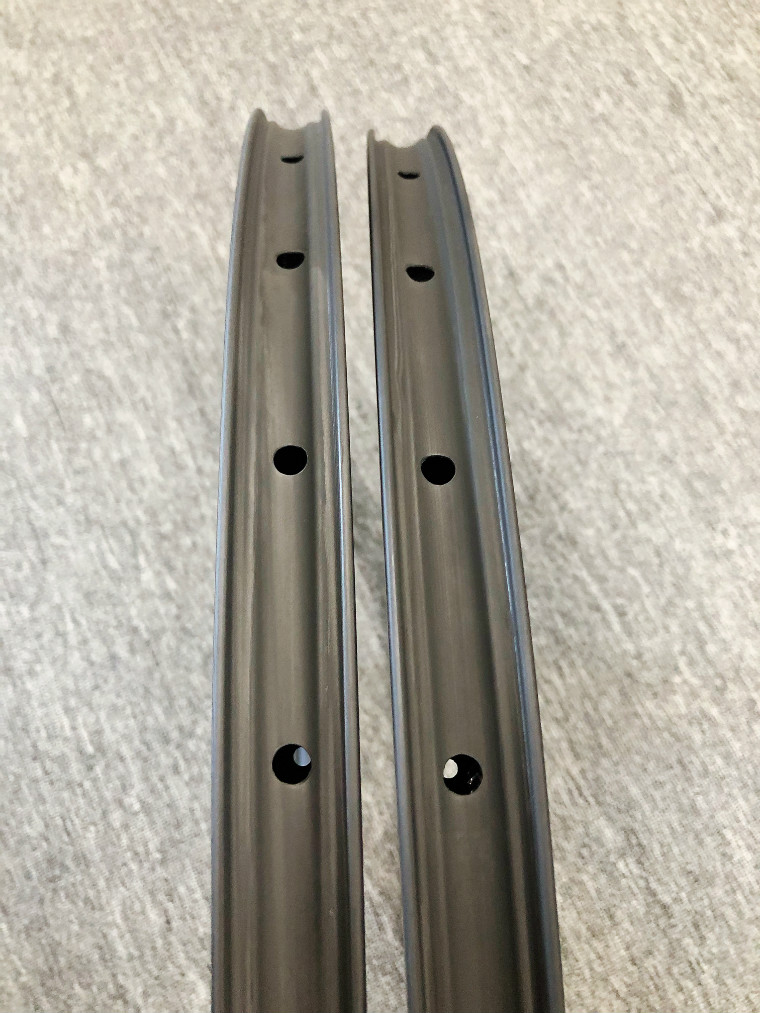

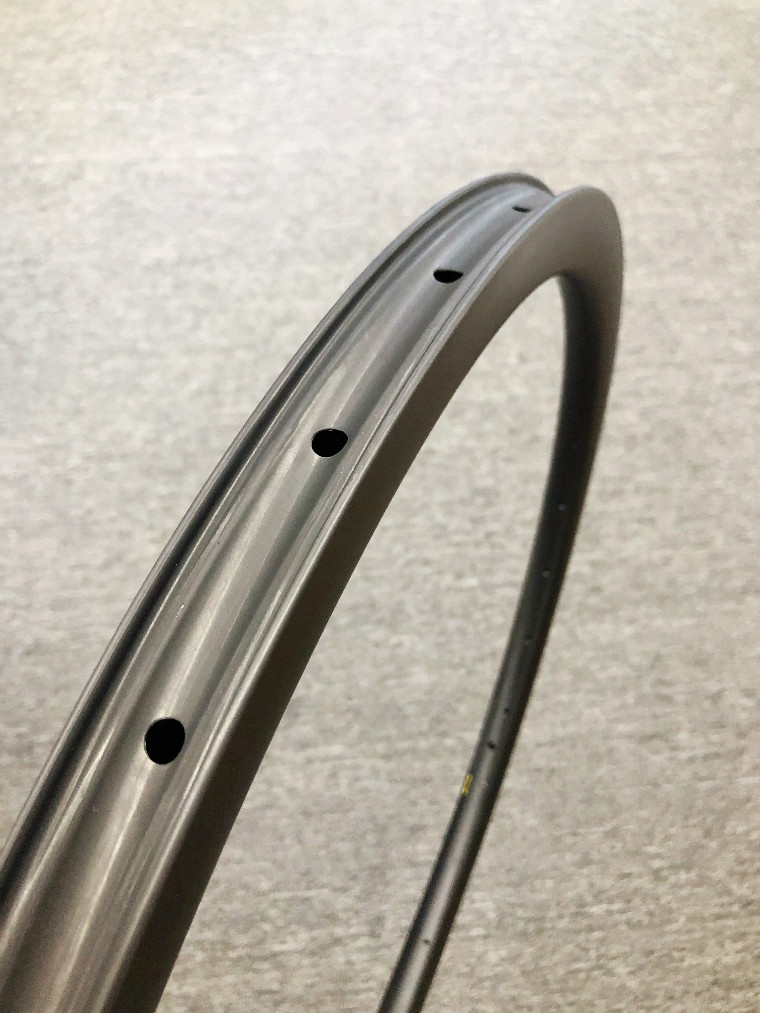

24mm Internal Wide Carbon Asym Gravel Hookless Rims

  • Item Num :
  • SC-30GD28AC / SC-30GD35AC / SC-30GD45AC
Product Details

Specs

Material: Toray T700

Size: Gravel 700C Hookless

Type: Without brake surface for disc brake

Outer Width: 30mm

Inner Width: 24mm

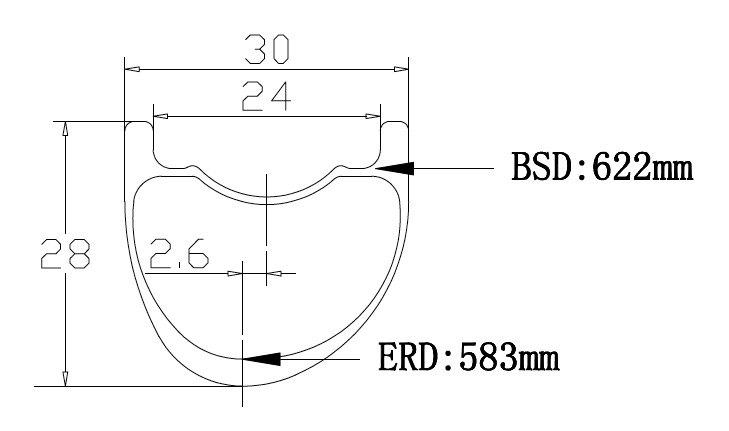

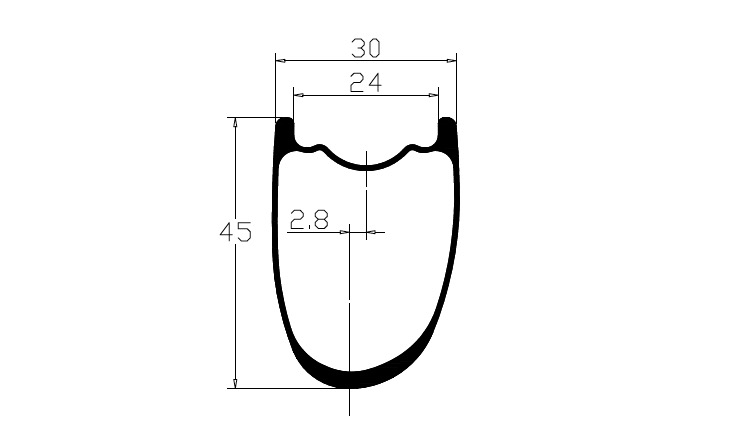

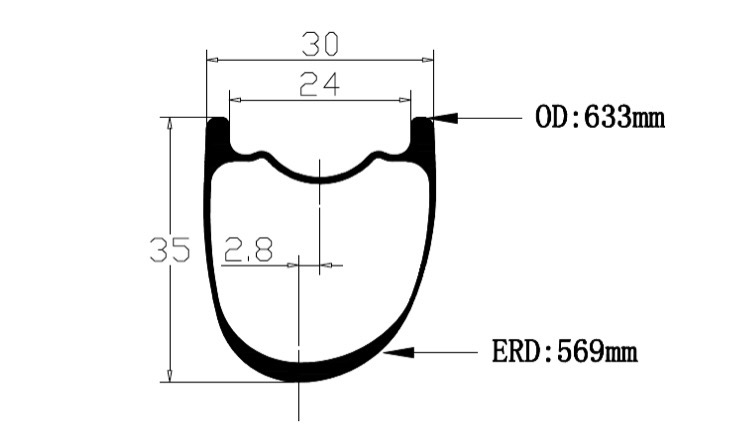

Depth: 28mm / 35mm / 45mm

Offset: 2.8mm

Weave: UD / 3K / 12K

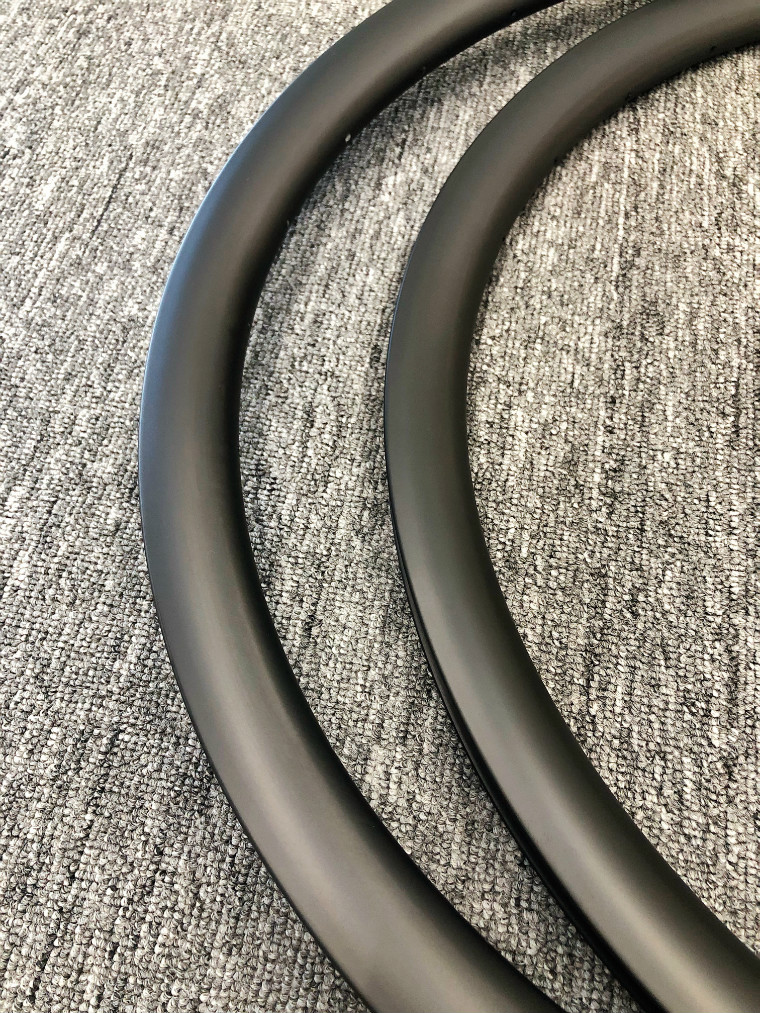

Finish: Matt / Glossy

Spoke count: 24H / 28H / 32H

Nipple hole: External / Internal

Standard Weight: 380g (28mm deep) / 410g (35mm deep) / 440g (45mm deep)

SL Weight: 340g (28mm deep) / 370g (35mm deep) / 400g (45mm deep)

Rider weight limit: 120KG

Max spoke tension: 140KGF

Max tire pressure: 65PSI

Flatness: ≤0.2mm

Roundness: ≤0.3mm


Highlights

30mm external wide / 24mm internal wide to fit wider tires.

2.8mm offset helps even out the spoke tension for a more balanced wheel.

Hookless design provides the best impact resistance.

With a nice aero profile and rim shape designed to help crosswind stability.
