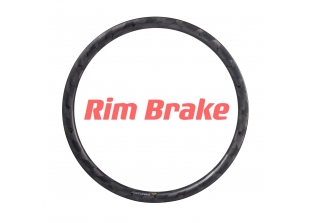

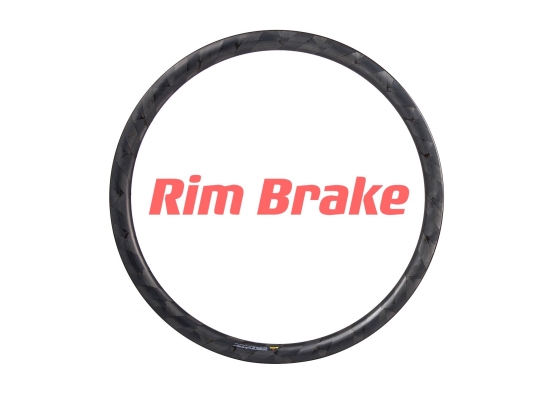

26mm Wide 38mm Super Light Pattern Carbon Road Tubeless Rims (SC-26R38TL-SLP)

  • Item Num :
  • SC-26R38TL-SLP
Product Details

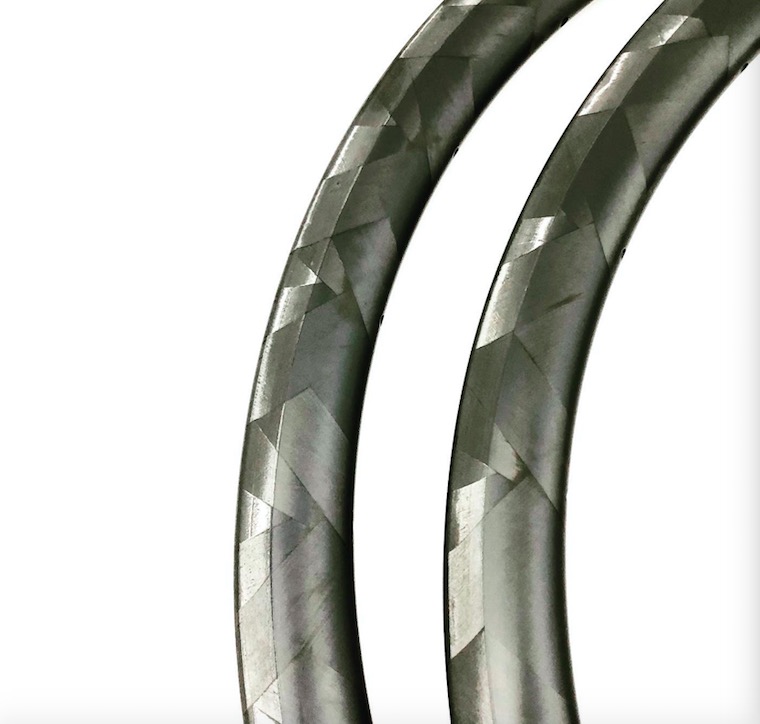

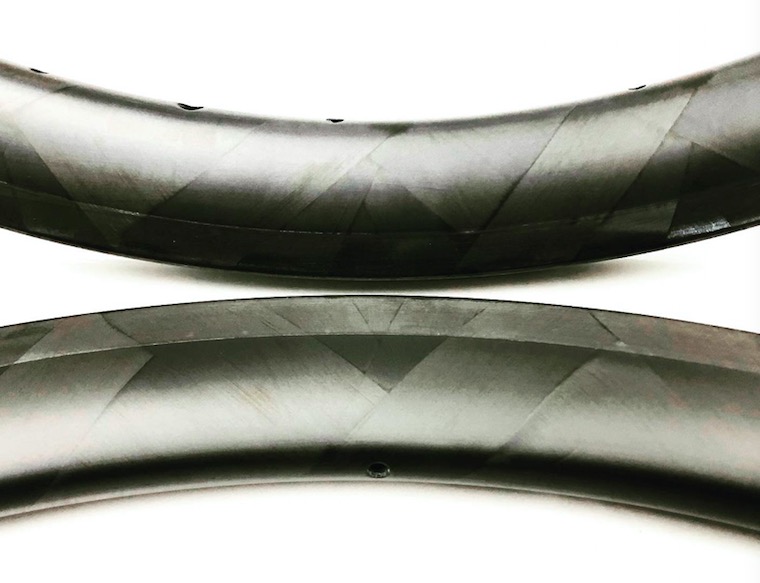

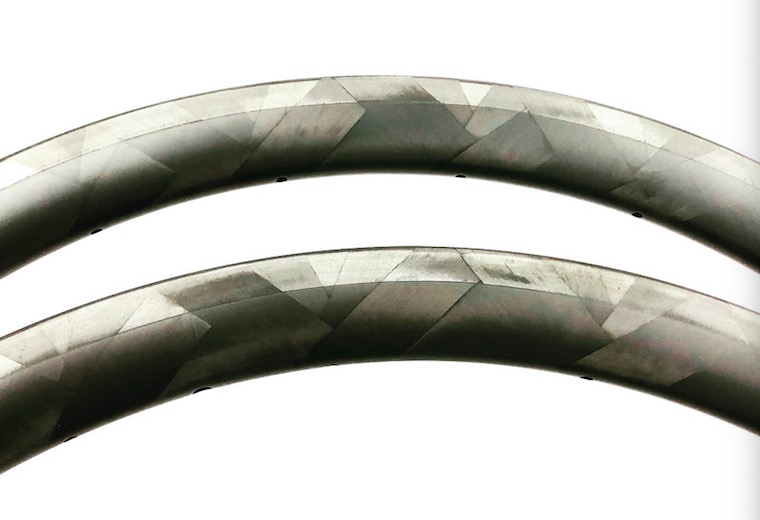

Super Light Pattern (SLP) has been created and improved on the basis of Filament Wound Series, they are fully manufactured by our second generation filament winding machine. The brand new layup pattern places fibres aligned in a series of increasing angles radiating from the spoke hole up to the tire bed, this technology optimizes the transmission of force from the spokes to the rest of rim, and provides additional material to create high strength at the spoke hole area while minimizing unnecessary weights between the spokes.

- The full automated filament winding process with no random layup errors lead to higher accuracy and precision.

- The overlap triangle layup on each spoke hole has provided the highest strength.

- The single spot reinforcement on every spoke hole save around 60g per rim without sacrificing the stiffness.

- The unique pattern surface is distinct from every carbon rim that is available in the market.


Material: Toray Carbon T700 (Impregnated with self-developed resin in house)

Type: 700C road clincher & tubeless

Brake: Rim brake

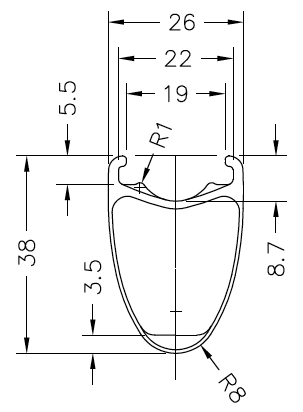

External Width: 26mm

Internal Width: 19mm

Depth: 38mm

Weave: Unique pattern surface

Finish: Matt / Glossy (Customized with your logo artworks)

Spoke count: 20/24H

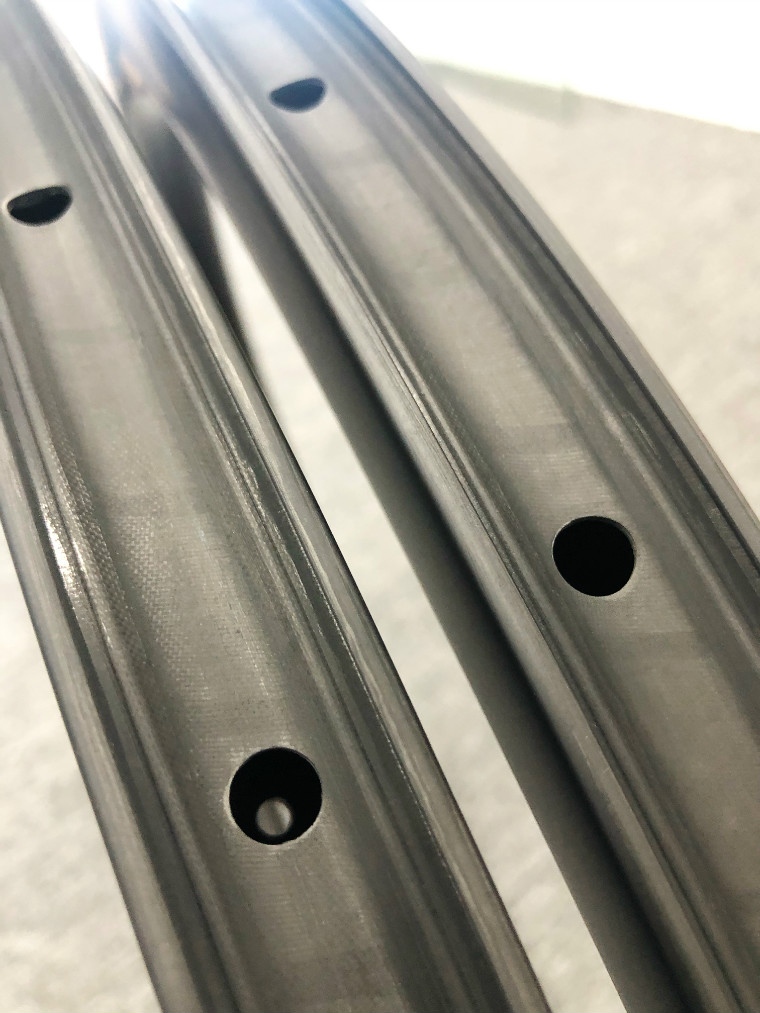

Nipple hole: External

Weight: 425g+/-15g (20H)  435g+/-15g (24H)

ERD: 563.2mm

Rider weight limit: 120KG

Max tire pressure: 125PSI

Max spoke tension: 140KGF

Flatness: ≤0.2mm

Roundness: ≤0.3mm

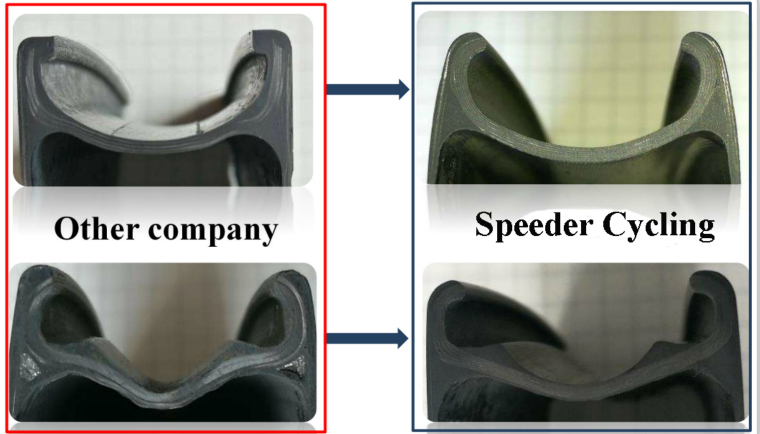

-- Patented filament winding process to ensure that each carbon fiber layer can be distributed evenly and bonded tightly, enabling its strength to reach a maximum value. Also machine managed process can avoid the random layup errors and result higher accuracy & precision.

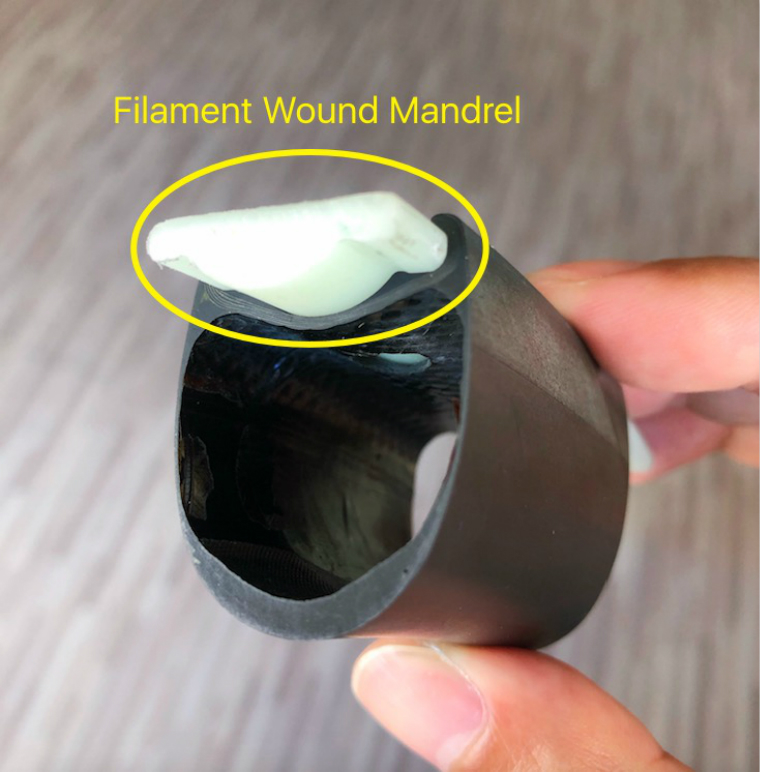

-- The rim bed is wound layer by layer in carbon fiber over a mandrel in a computer controlled process, this enables precise fiber orientation, continuous fiber paths, and higher fiber to resin ratios, resulting a more durable rim.

-- Carbon fiber pre-preg weaving in house, impregnating with own HTG resin system. The resin is tested and approved by DMA / DSC.

-- X-Ray machine applied to inspect the inside layup structure to guarantee the strength for every area.

-- Computational fluid dynamics applied to design the rim profiles to optimize the aerodynamics, enabling the rims to run faster at every yaw angle.

-- Much higher test standard in house than official UCI / ISO; Wind tunnel test in Arizona USA.
