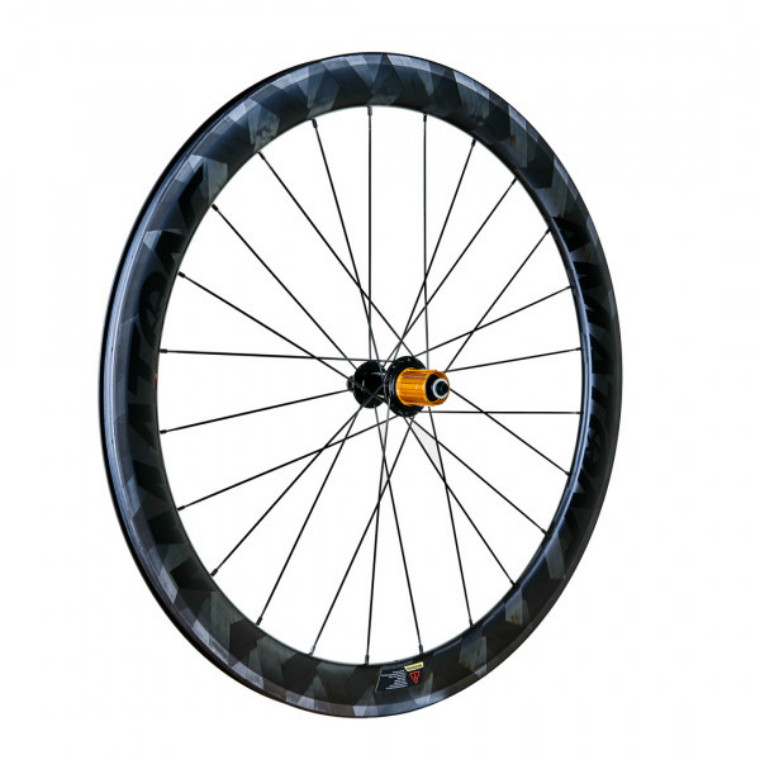

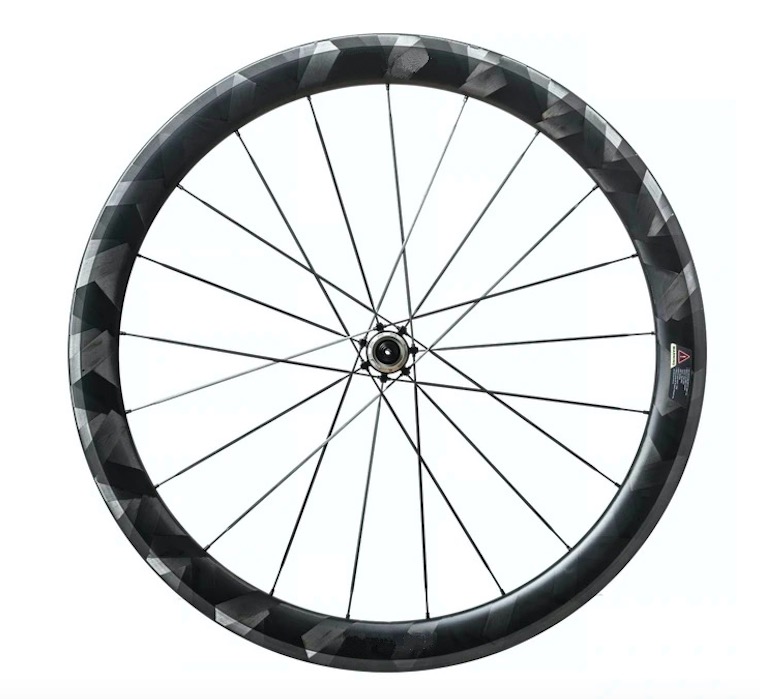

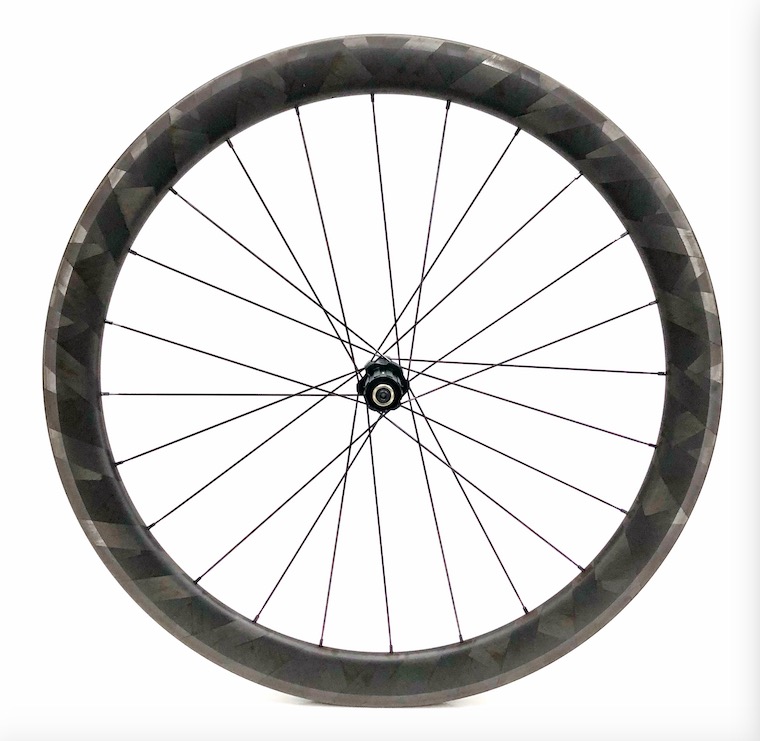

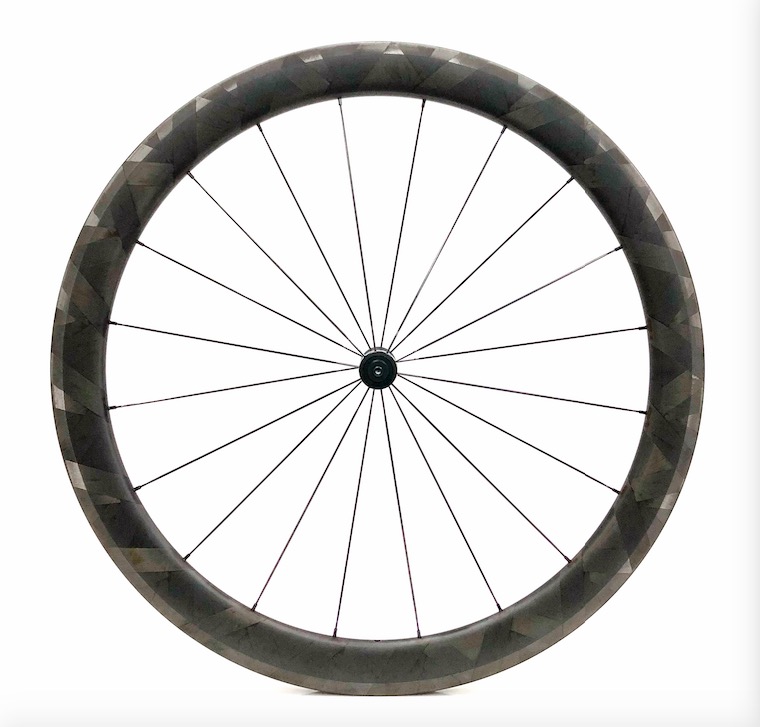

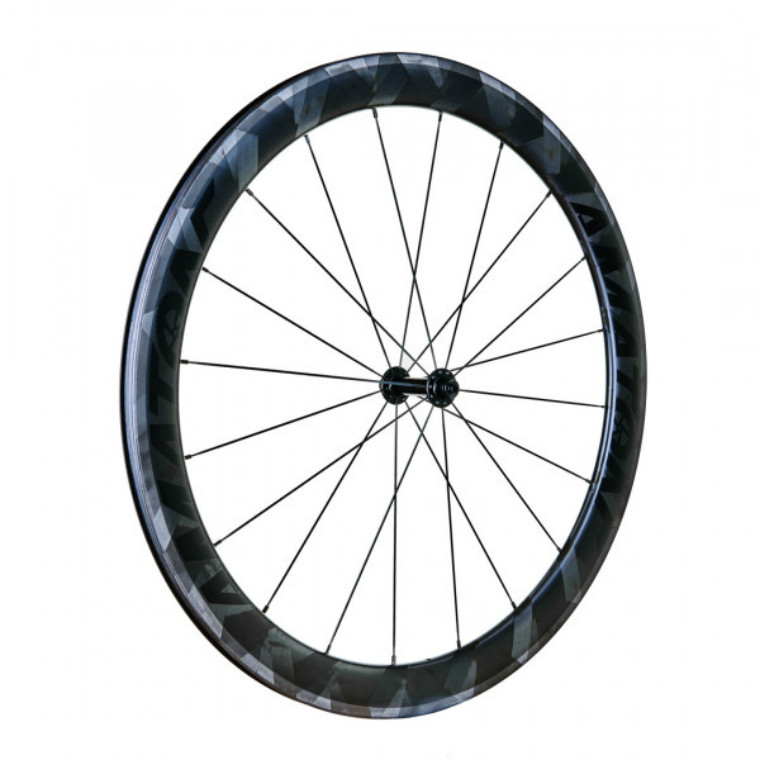

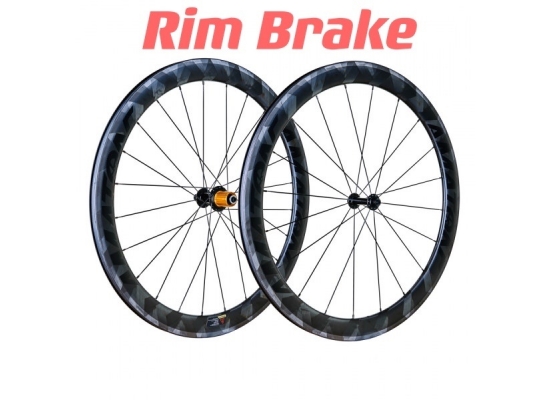

26mm Wide 50mm Super Light Pattern Carbon Road Tubeless Clincher Wheelset (SC-26WH50TL-SLP)

  • Item Num :
  • SC-26WH50TL-SLP
Product Details

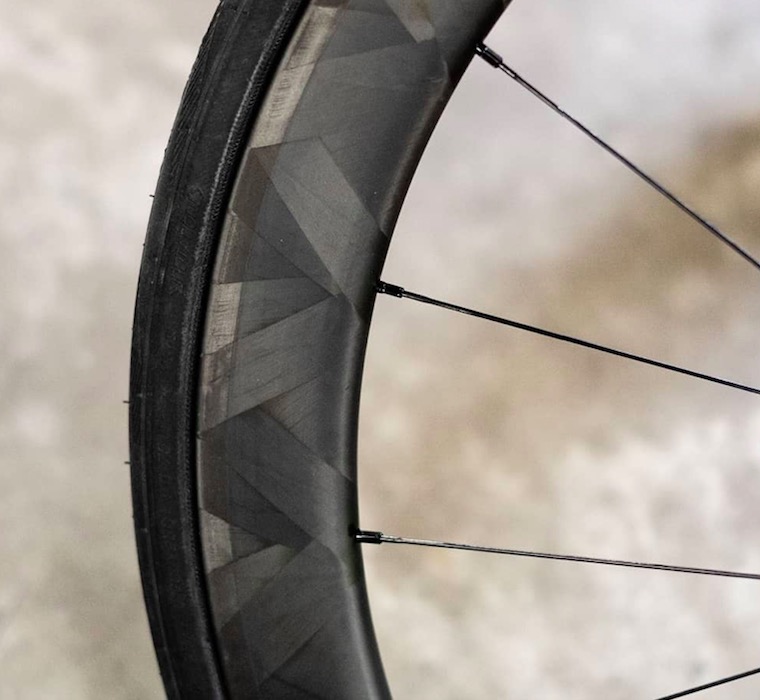

Super Light Pattern (SLP) has been created and improved on the basis of Filament Wound Series, they are fully manufactured by our second generation filament winding machine. The brand new layup pattern places fibres aligned in a series of increasing angles radiating from the spoke hole up to the tire bed, this technology optimizes the transmission of force from the spokes to the rest of rim, and provides additional material to create high strength at the spoke hole area while minimizing unnecessary weights between the spokes.

- The full automated filament winding process with no random layup errors lead to higher accuracy and precision.

- The overlap triangle design on each spoke hole has provided the highest strength.

- The single spot reinforcement save around 60g per rim without sacrificing the stiffness.

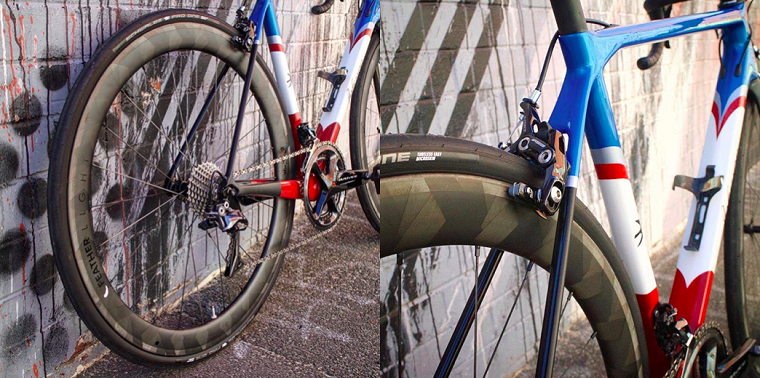

- The unique pattern surface is distinct from every carbon rim that is available in the market.

Rims                                                                                               Hubs

Material: Toray T700 (Imported from Japan / Korea)                        Powerway R13 / R36 / R39

Size: 700C                                                                                        Bitex RAF10 / RAR9

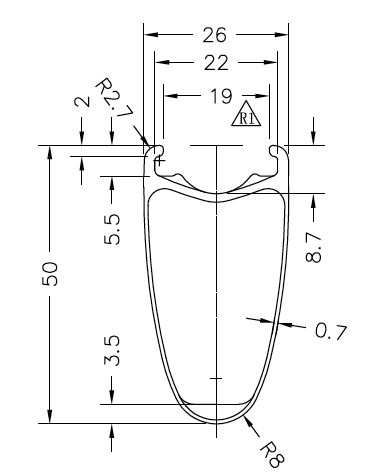

External Width: 26mm                                                                       DT Swiss 350s / 240s / 180s

Internal Width: 19mm

Depth: 50mm

Weave: Unique pattern surface

Finish: Matt / Glossy (Customized with your logos)                               Spokes

Spoke count: 20/24H                                                                          Pillar PSR AERO 1423

Nipple hole: External / Internal                                                            Sapim CX-Ray

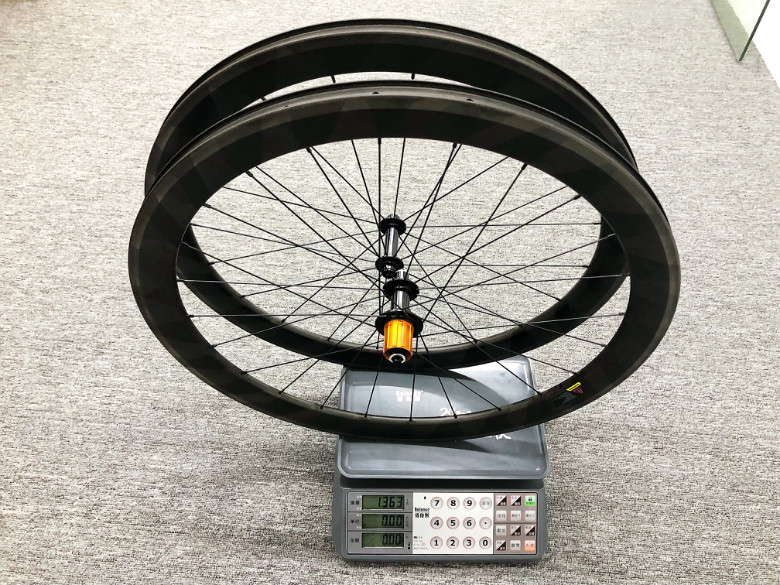

Weight: From 1440g+/-20g (Varied with different hubs and spokes)

Rider weight limit: 120KG

Max tire pressure: 125PSI

Max spoke tension: 140KGF

Flatness: ≤0.2mm

Roundness: ≤0.3mm



-- Patented filament winding process to ensure that each carbon fiber layer can be distributed evenly and bonded tightly, enabling its strength to reach a maximum value. Also machine managed process can avoid the random layup errors and result higher accuracy & precision.

-- The rim bed is wound layer by layer in carbon fiber over a mandrel in a computer controlled process, this enables precise fiber orientation, continuous fiber paths, and higher fiber to resin ratios, resulting a more durable rim.

-- Carbon fiber pre-preg weaving in house, impregnating with own HTG resin system. The resin is tested and approved by DMA / DSC.

-- X-Ray machine applied to inspect the inside layup structure to guarantee the strength for every area.

-- Computational fluid dynamics applied to design the rim profiles to optimize the aerodynamics, enabling the rims to run faster at every yaw angle.

-- Much higher test standard in house than official UCI / ISO; Wind tunnel test in Arizona USA.
