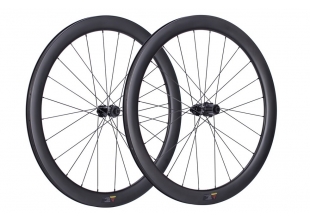

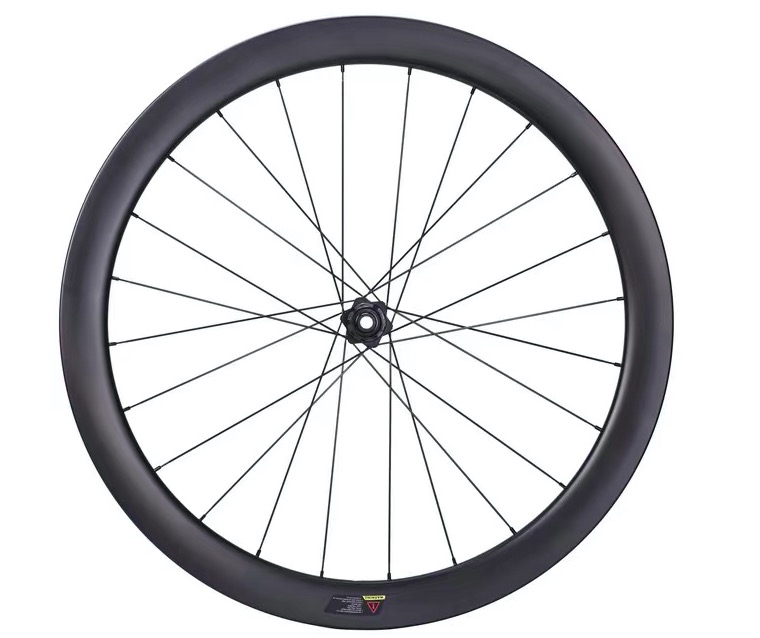

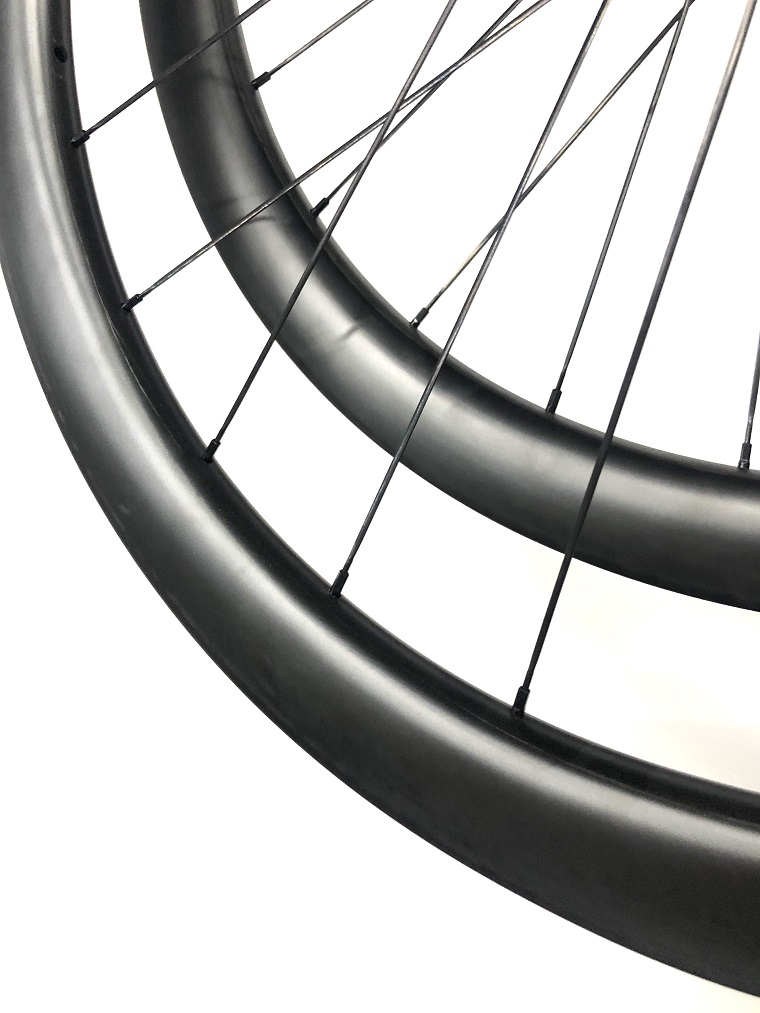

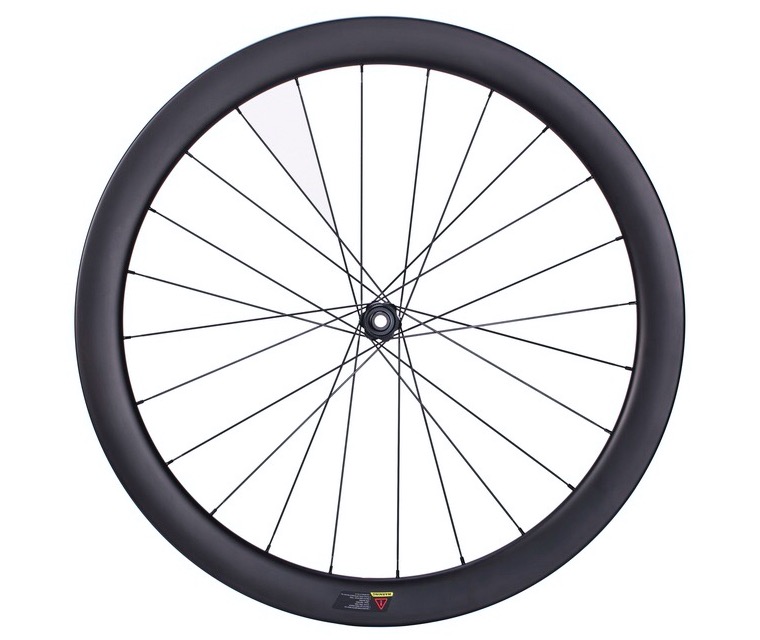

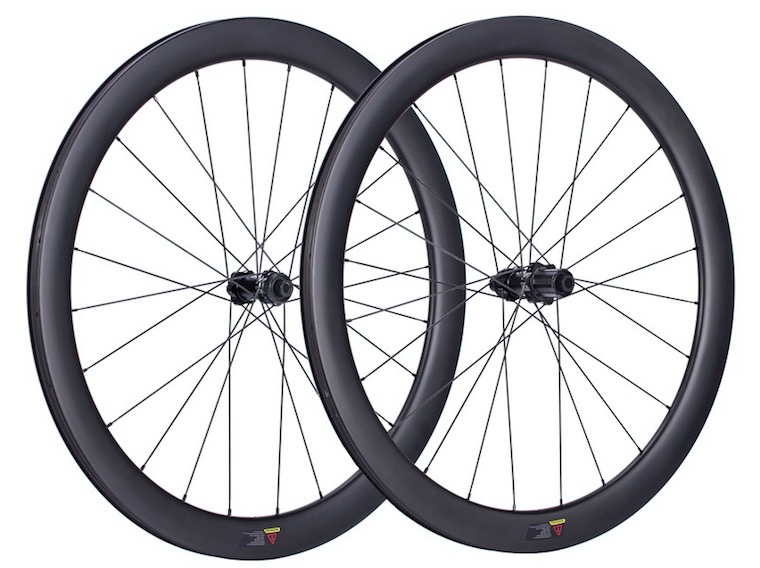

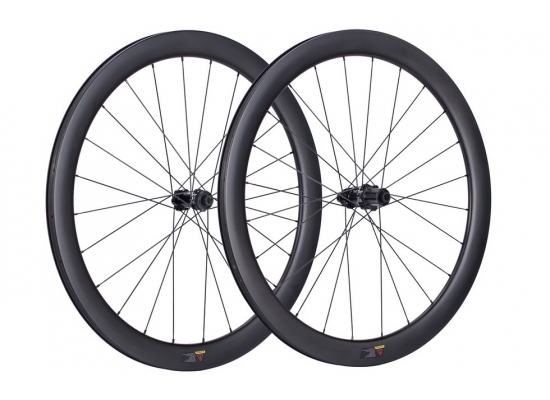

28mm Wide 45mm Filament Wound Carbon Road Disc Tubeless Clincher Wheelset (SC-28WHD45TL)

  • Item Num :
  • SC-28WHD45TL
Product Details

Filament wound series is the first choice and highest level, they are manufactured by filament winding machine and applied with self-developed yellow color high temp resin, the advanced manufacture tech and layup design make filament wound series more superior than other Chinese carbon rims. They have been used by lots of big brands and Tour-de-France pro teams for years.

Filament winding process offers precise and repeatable carbon construction, without the variability associated with hand layup, it results in a more consistent layup that allows a low proportion of resin to be used, reducing weight for the same strength.

The new 21mm internal wide provides better fit for higher volume tires that increase grip, lower rolling resistance and greater comfort. They have been optimized for crosswind stability at a variety of yaw angles.

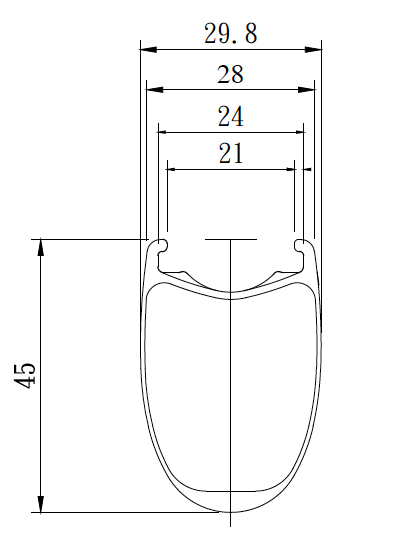

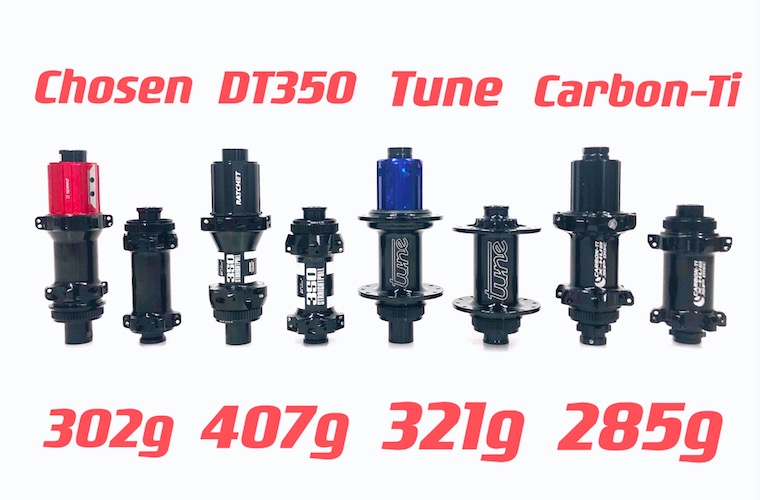

Rims                                                                                                Hubs

Material: Toray T700 (Imported from Japan / Korea)                         Chosen SL DISC 290g

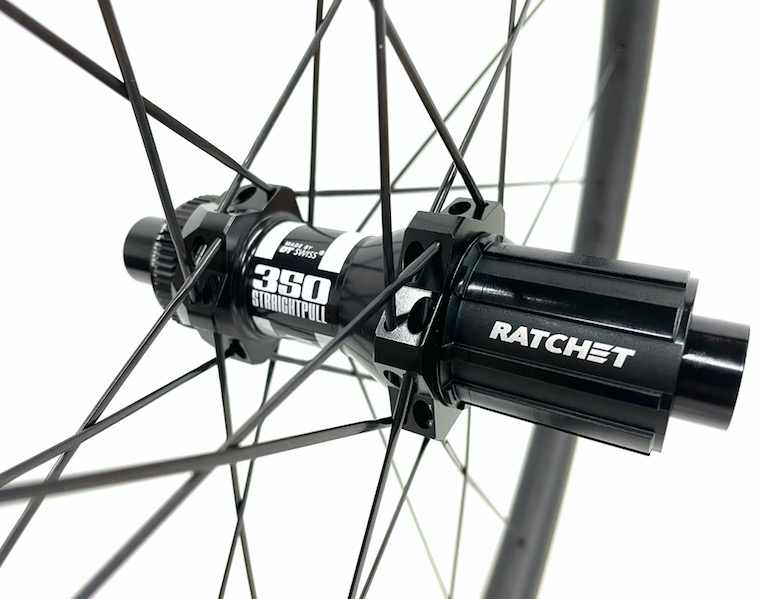

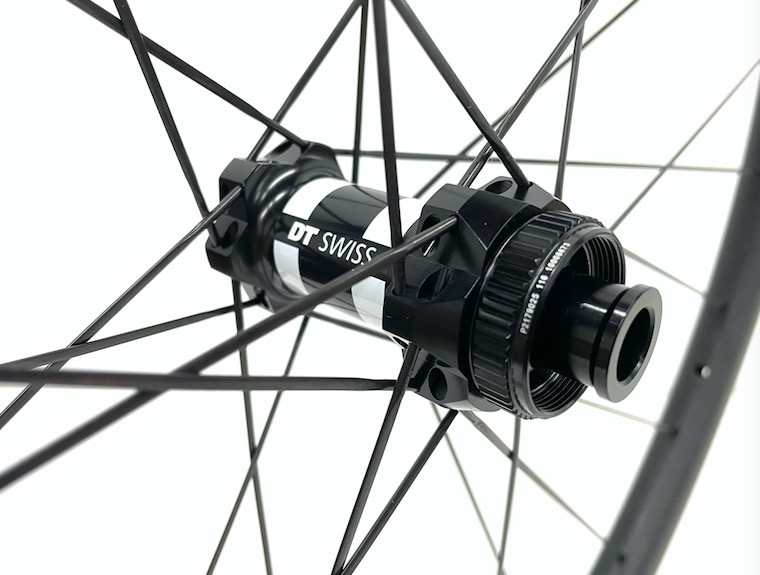

Size: 700C                                                                                         DT Swiss 350s / 240s / 180s

External Width: 28mm                                                                        Carbon-Ti X-HUB SP DISC 270g

Internal Width: 21mm                                                                         Tune KillHill / ClimbHill 328g

Depth: 45mm                                                                                     Tune Princess / Prince 262g

Weave: UD

Finish: Matt / Glossy (Customized with your logos)                                Spokes

Spoke count: 24/24H                                                                           Pillar PSR AERO 1423

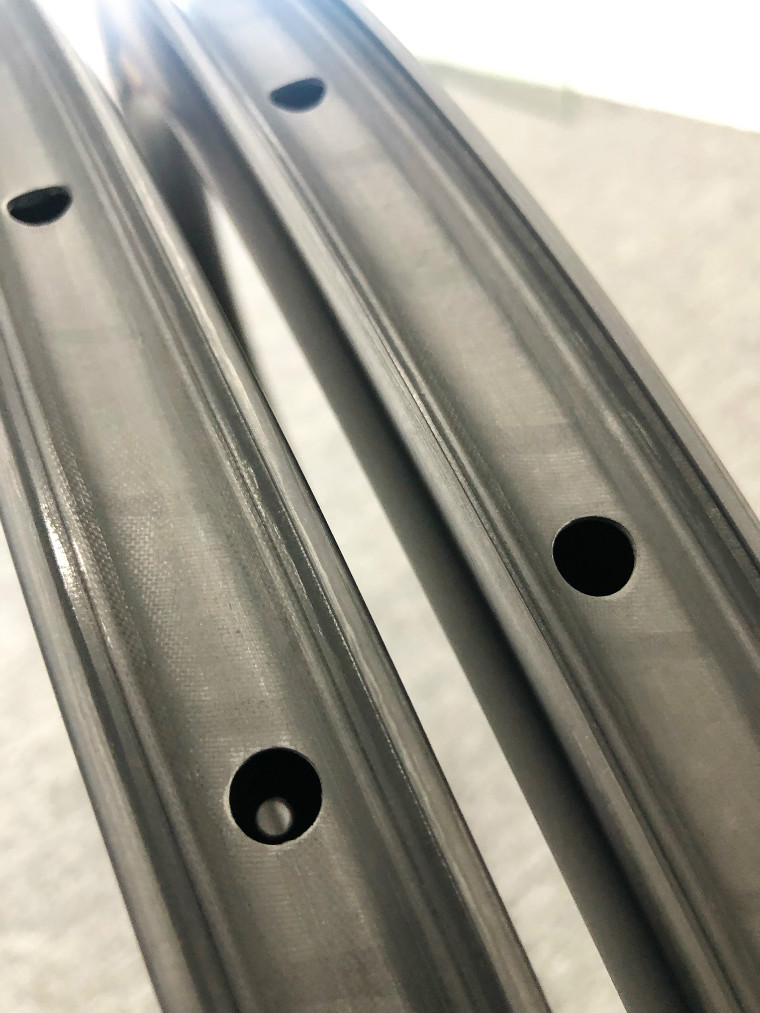

Nipple hole: External / Internal                                                             Sapim CX-Ray

Weight: From 1410g+/-30g (Varied with different hubs and spokes)

Rider weight limit: 120KG

Max tire pressure: 125PSI

Max spoke tension: 140KGF

Flatness: ≤0.2mm

Roundness: ≤0.3mm



Highlights

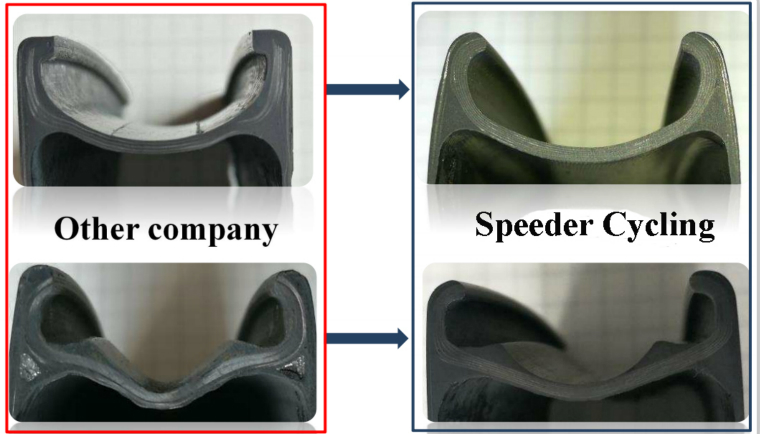

-- Patented filament winding process to ensure that each carbon fiber layer can be distributed evenly and bonded tightly, enabling its strength to reach a maximum value. Also machine managed process can avoid the random layup errors and result higher accuracy & precision.

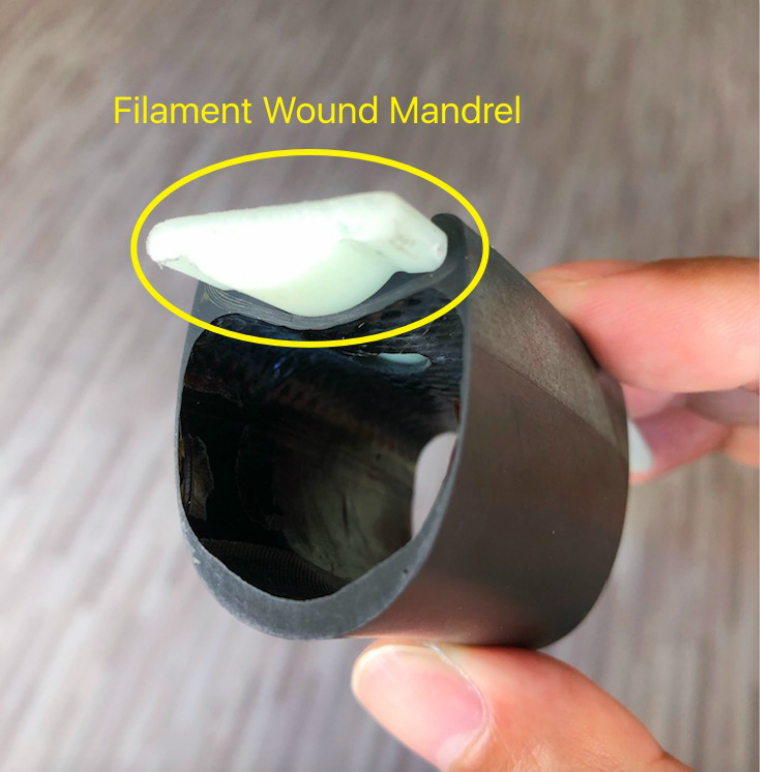

-- The rim bed is wound layer by layer in carbon fiber over a mandrel in a computer controlled process, this enables precise fiber orientation, continuous fiber paths, and higher fiber to resin ratios, resulting a more durable rim.

-- Carbon fiber pre-preg weaving in house, impregnating with own HTG resin system. The resin is tested and approved by DMA / DSC.

-- X-Ray machine applied to inspect the inside layup structure to guarantee the strength for every area.

-- Computational fluid dynamics applied to design the rim profiles to optimize the aerodynamics, enabling the rims to run faster at every yaw angle.

-- Much higher test standard in house than official UCI / ISO; Wind tunnel test in Arizona USA.
