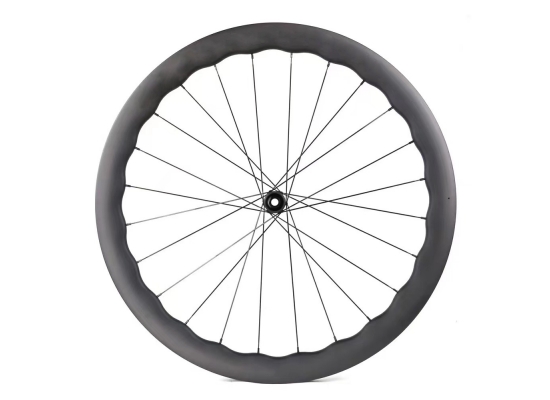

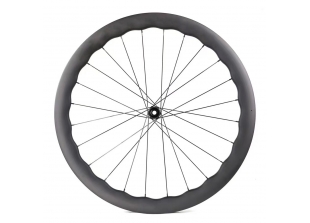

24mm Internal Wide Wavy Shape All-Road Gravel Hooked Tubeless Wheelset

  • Item Num :
  • SC-31WHD35WS / SC-31WHD45WS / SC-31WHD68WS
Product Details

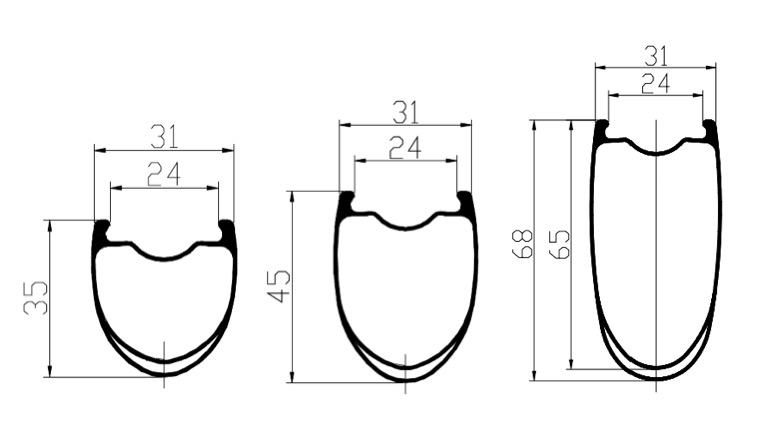

Rims

Material: Toray T700 / T800

Size: 700C

External Width: 31mm

Internal Width: 24mm

Depth: 35mm / 45mm / 68mm

Weave: UD / 3K / 12K / Butterfly Pattern

Finish: Matte / Gloss / Non-Paint

Spoke count: 24/24H

Nipple hole: External / Internal

Weight: From 1280g+/-30g

Rider weight limit: 120KG

Max tire pressure: 125PSI

Max spoke tension: 140KGF

Flatness: ≤0.2mm

Roundness: ≤0.3mm

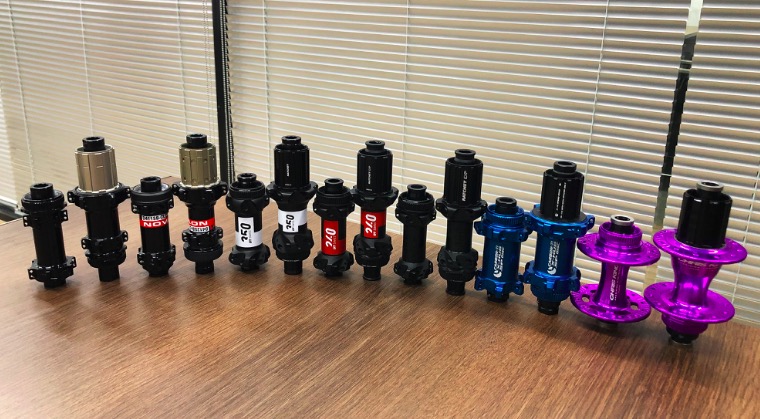

Hubs

Speeder 301 Ratchet (315g)

Novatec D411/D412 (329g)

DT Swiss 350 (364g)

DT Swiss 240 (310g)

DT Swiss 180 (284g)

Carbon-Ti X-HUB SP DISC (286g)

NONPLUS HUBS (204g)

Chris King R45D (404g)


Spokes

Sapim CX-Ray

Pillar PSR AERO 1423



Highlights

Wavy shape design (irregular structure) provides muti-angle bracing to increase the strength / rigidity.

With a nice aero profile and rim shape designed to help crosswind stability.

Precise layup design with super smooth 3k inside wall results a light weight rim.
