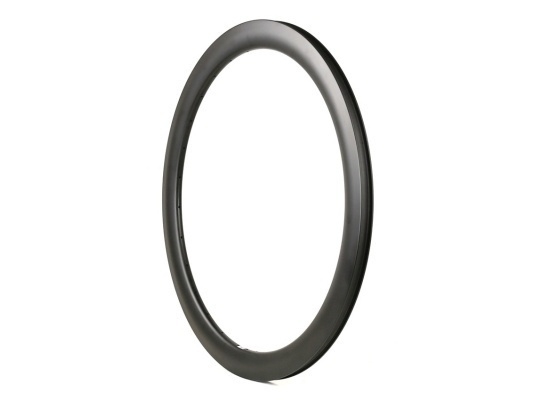

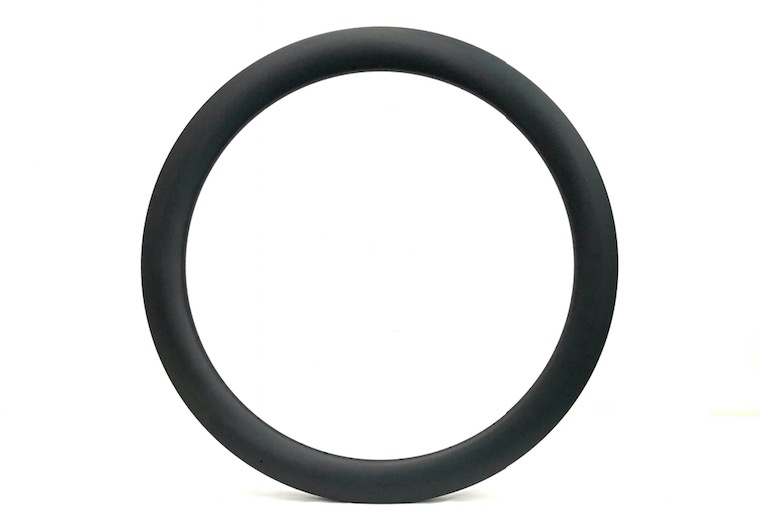

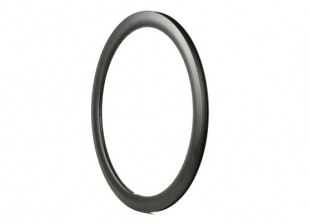

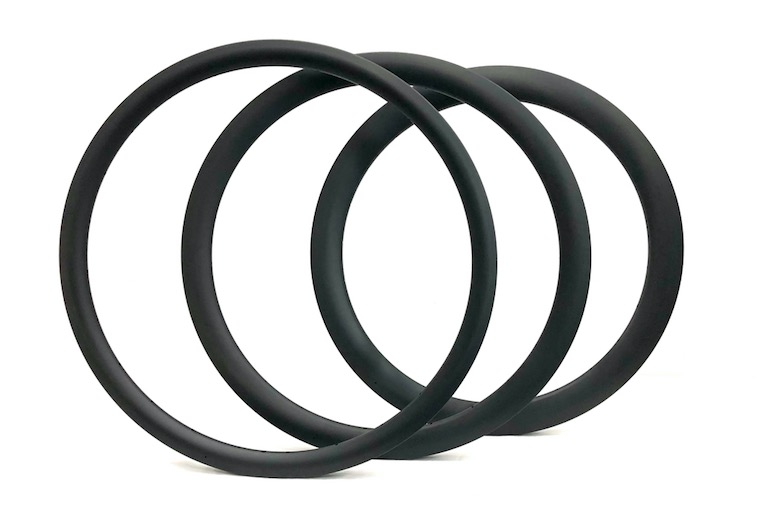

32mm Internal Wide Carbon Gravel Hooked Tubeless Rims

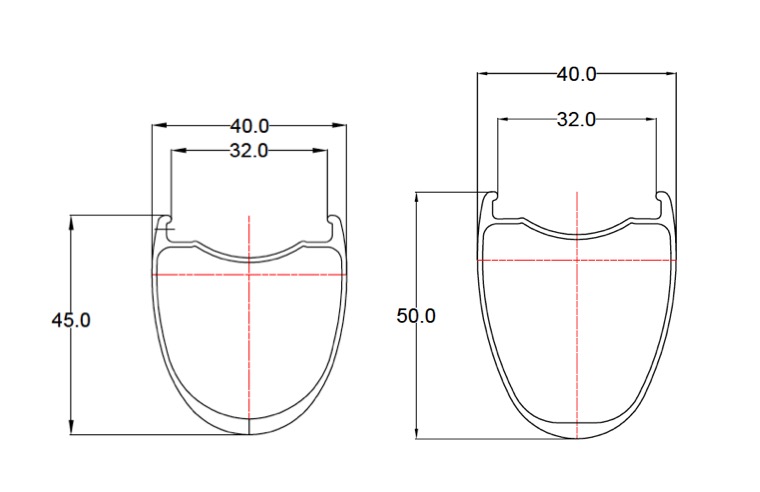

External Width: 40mm

Internal Width: 32mm

Depth: 45mm / 50MM

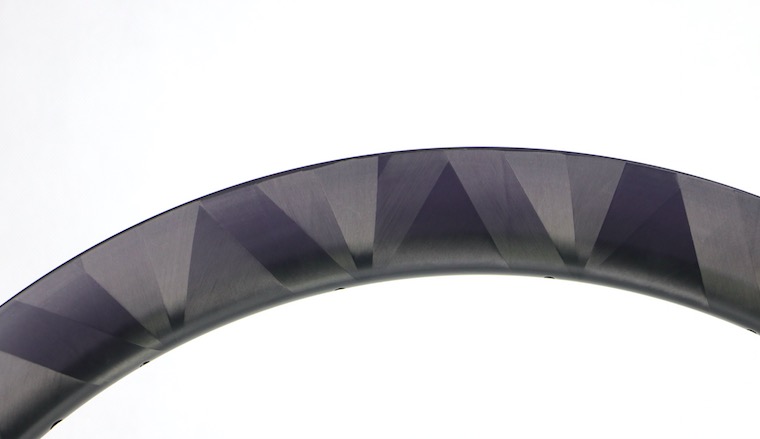

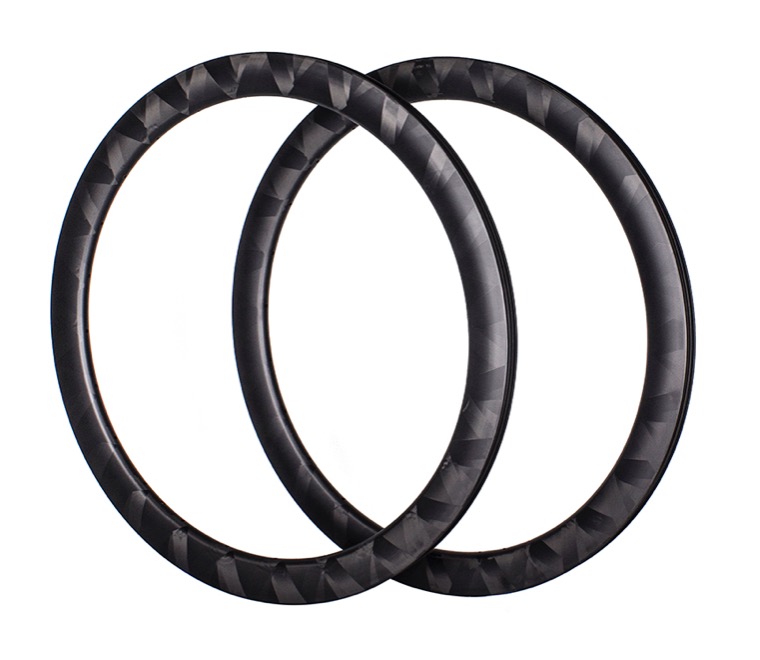

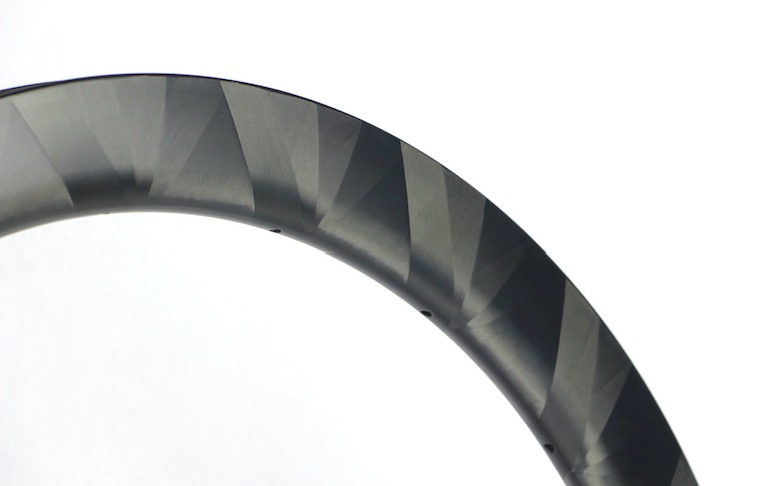

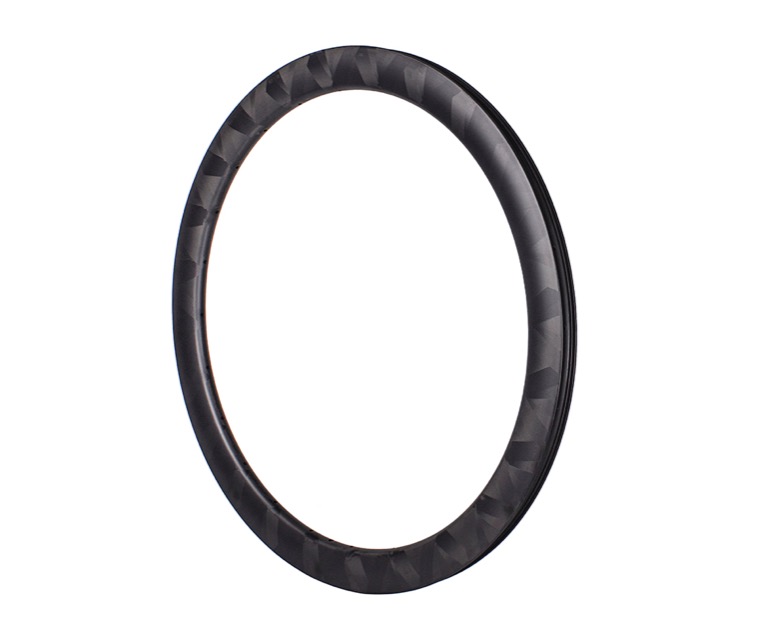

Weave: UD / 3K / 12K / Butterfly Pattern

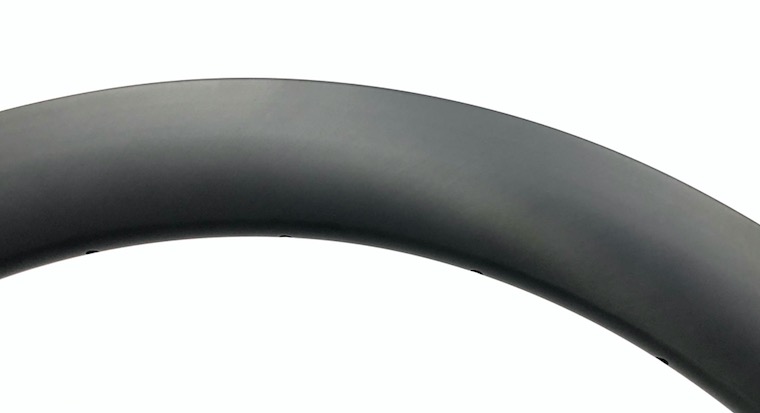

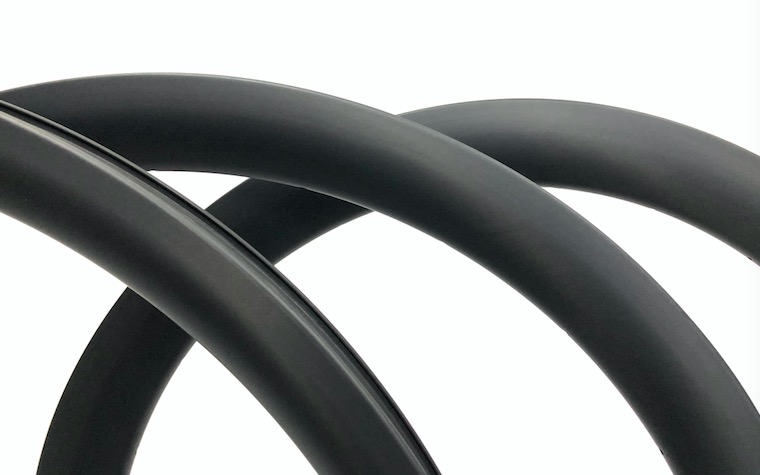

Finish: Matte / Gloss / Non-Paint

Spoke count: 24H / 28H / 32H

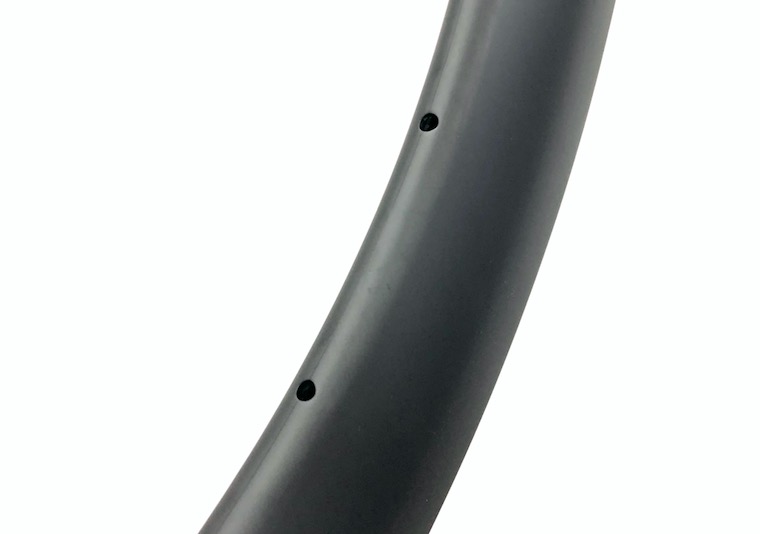

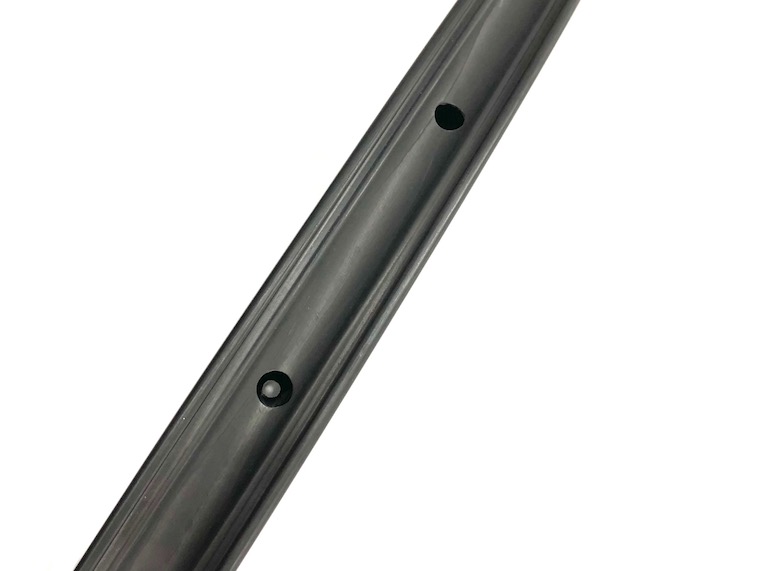

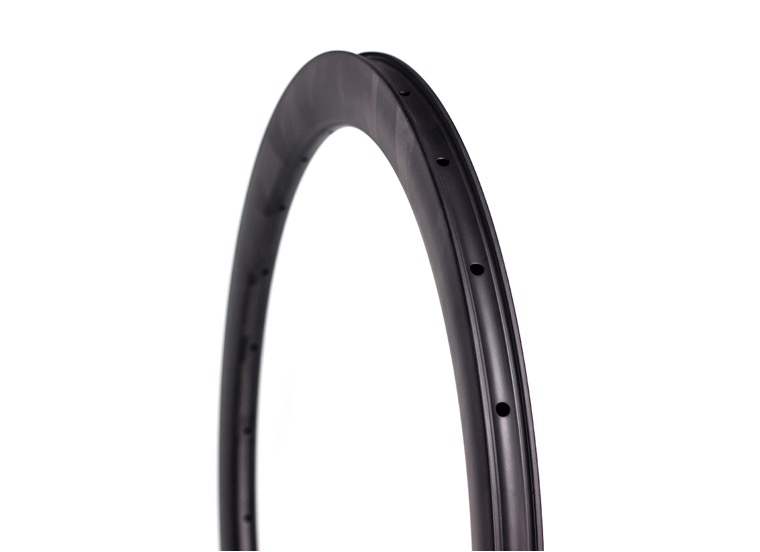

Nipple hole: External / Internal

Standard Weight: 490g (45mm) / 500g (50mm)

SL Weight: 440g (45mm) / 450g (50mm)

Rider weight limit: 120KG

Max tire pressure: 125PSI

Max spoke tension: 140KGF

Flatness: ≤0.2mm

Roundness: ≤0.3mm

With a nice aero profile and rim shape designed to help crosswind stability.

Precise layup design with super smooth 3k inside wall results a light weight rim.
