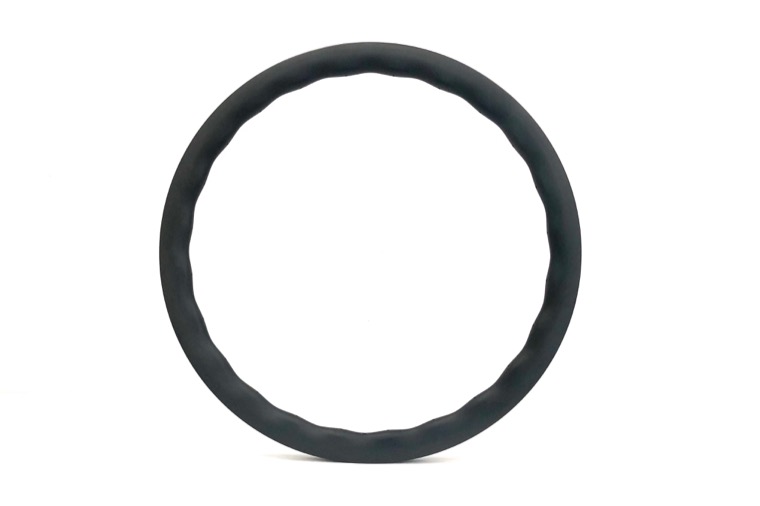

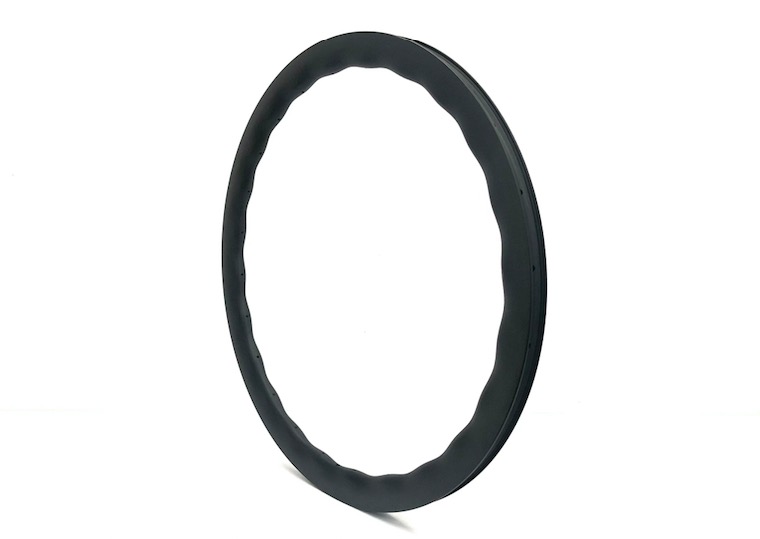

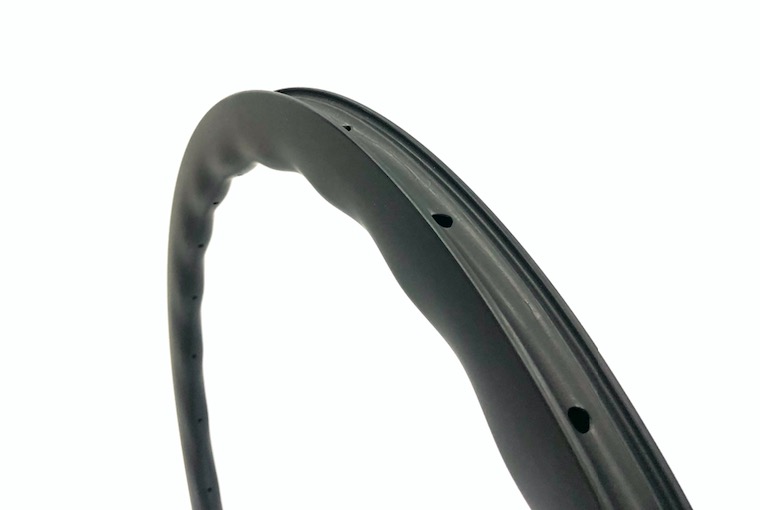

21mm Internal Wide Wavy Shape Carbon Road Disc Tubeless Clincher Rims

  • Item Num :
  • SC-28RD35WS / SC-28RD40WS / SC-28RD45WS / SC-28RD50WS
Product Details
Specs

Material: Toray T700

Size: 700C

Type: Without brake surface for disc brake

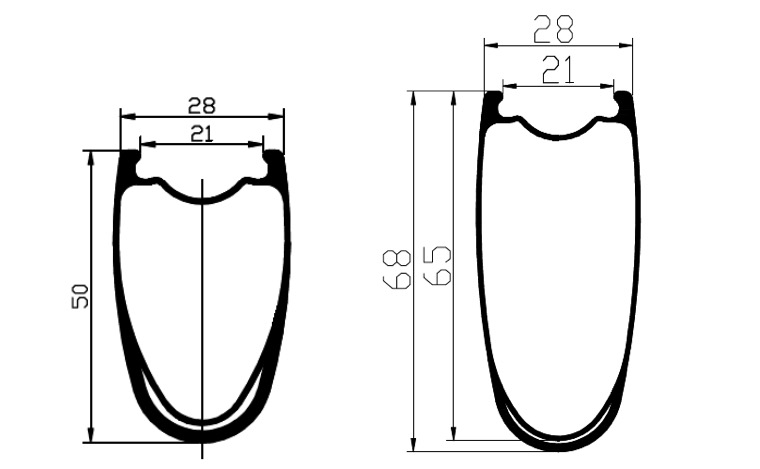

External Width: 28mm

Internal Width: 21mm

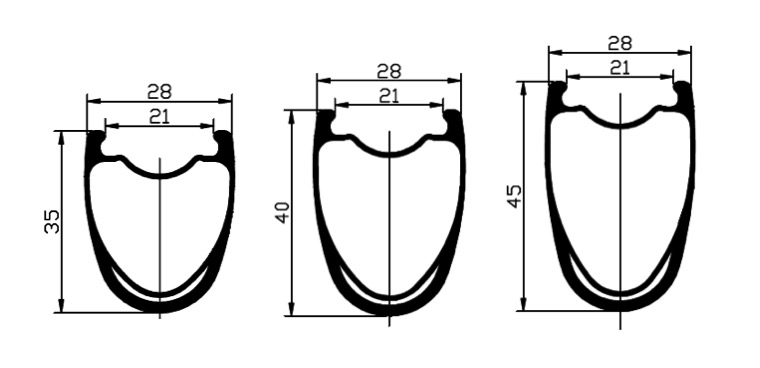

Depth: 35mm / 40mm / 45mm / 50mm / 68mm

Weave: UD / 3K / 12K

Finish: Matt / Glossy

Spoke count: 24H

Nipple hole: External / Internal

Weight: 410g (35mm) / 430g (40mm) / 450g (45mm) / 470g (50mm) / 560g (68mm)

Rider weight limit: 120KG

Max tire pressure: 125PSI

Max spoke tension: 140KGF

Flatness: ≤0.2mm

Roundness: ≤0.3mm



Highlights

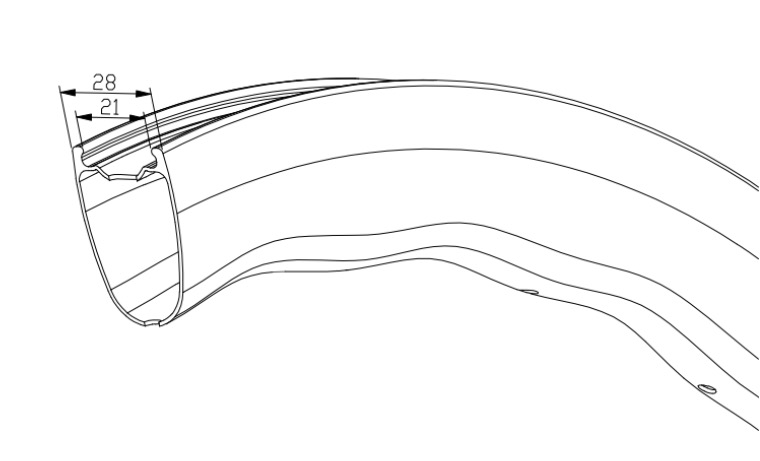

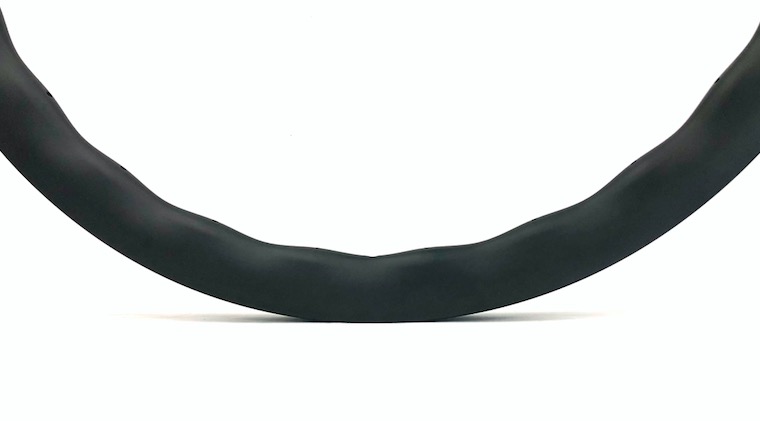

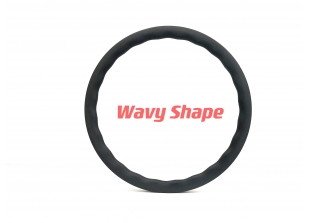

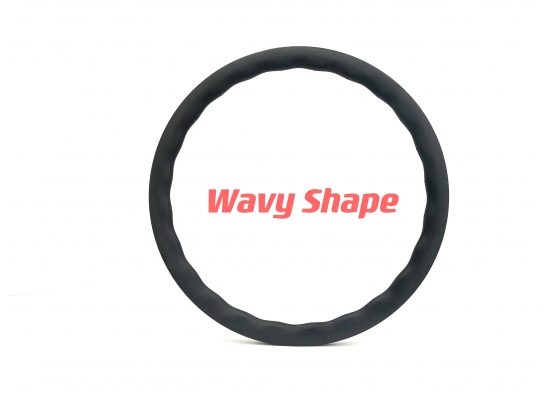

Wavy shape design (irregular structure) provides muti-angle bracing to increase the strength / rigidity.

With a nice aero profile and rim shape designed to help crosswind stability.

Precise layup design with super smooth 3k inside wall results a light weight rim.
