25mm Internal Wide Carbon Asym All Road / Gravel Tubeless Clincher Rims

  • Item Num :
  • SC-32GD35TL / SC-32GD40TL / SC-32GD45TL / SC-32GD50TL
Product Details
Specs

Material: Toray T700

Size: 700C

Type: Without brake surface for disc brake

External Width: 32mm

Internal Width: 25mm

Depth: 35mm / 40mm / 45mm / 50mm

Weave: UD / 3K / 12K

Finish: Matt / Glossy

Spoke count: 16-32H

Nipple hole: External / Internal

Standard Weight: 420g (35mm) / 440g (40mm) / 460g (45mm) / 480g (50mm)

SL Weight: 380g (35mm) / 400g (40mm) / 420g (45mm) / 440g (50mm)

Rider weight limit: 120KG

Max tire pressure: 125PSI

Max spoke tension: 140KGF

Flatness: ≤0.2mm

Roundness: ≤0.3mm



Highlights

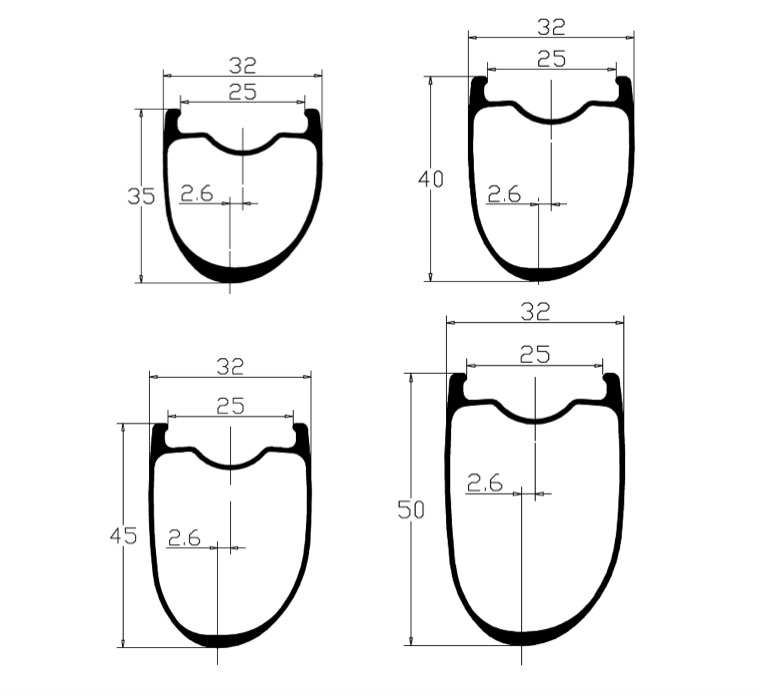

2.6mm offset helps even out the spoke tension for a more balanced wheel.

With a nice aero profile and rim shape designed to help crosswind stability.

Precise layup design with super smooth 3k inside wall results a light weight rim.
