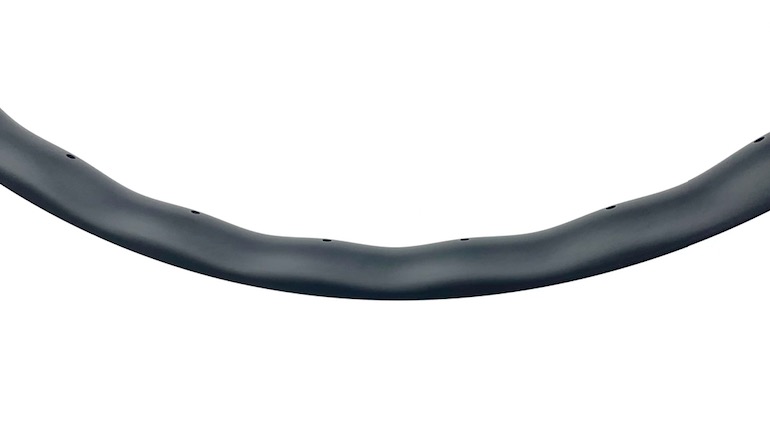

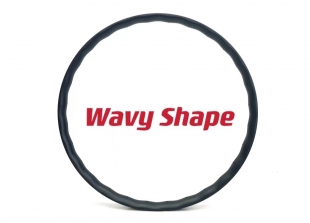

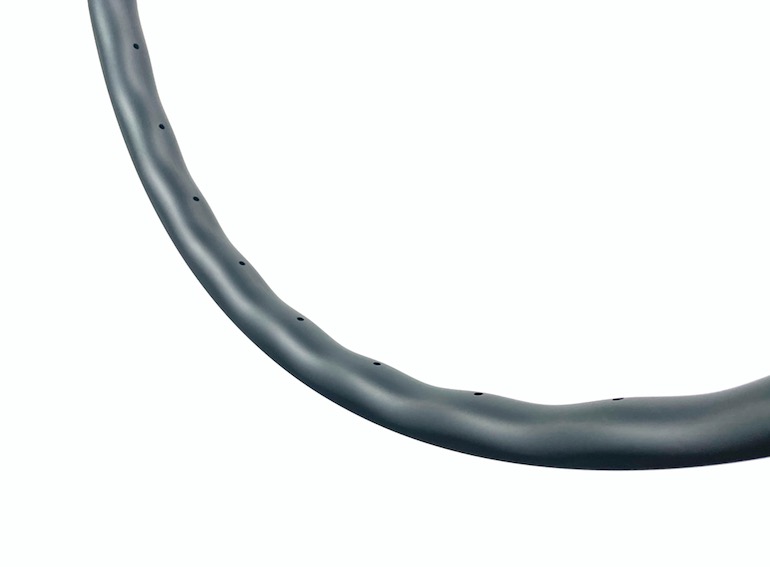

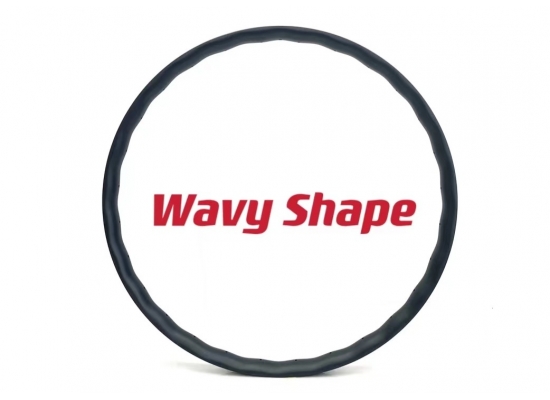

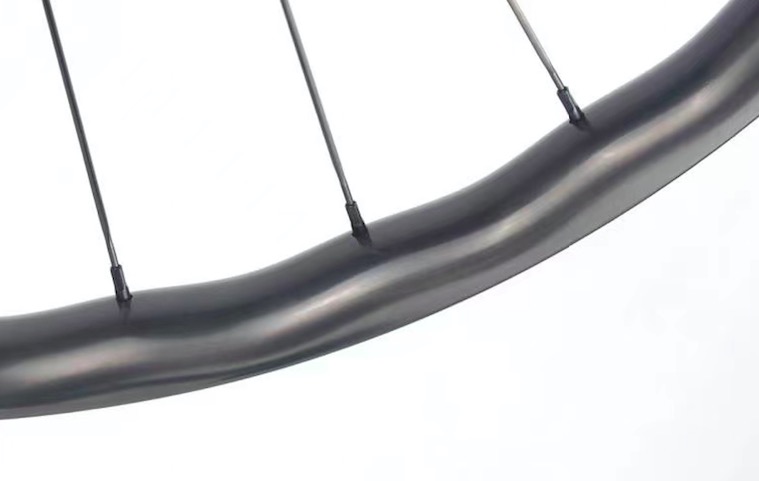

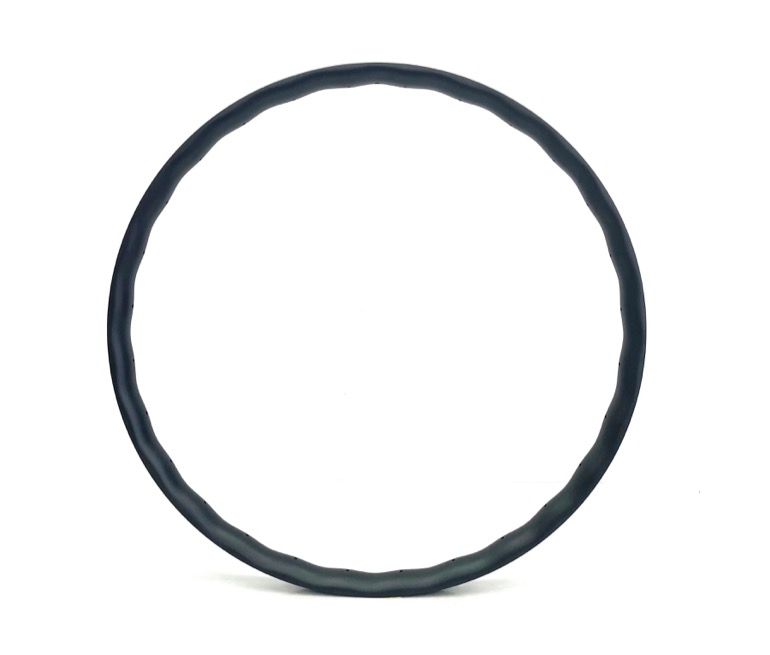

Wavy Shape Carbon 29er MTB Asymmetric Hookless Rims

  • Item Num :
  • SC-37M21A29
Product Details


- Wavy shape design (irregular structure) provides multi-angle bracing to increase the strength / rigidity.

- Asymmetric rim shape with 3mm offset drilling improves bracing angle and balances spoke tension to create a stronger wheel.

- Proprietary carbon fiber layup process equalizes impact forces on both long and short sides of rims to make both stronger.


Material: Toray T700 / T800

Size: 29er MTB

Type: Asymmetric Hookless

Weave: UD / 3K / 12K

Finish: Matt / Glossy

Spoke Count: 28H

Nipple Hole: External / Internal

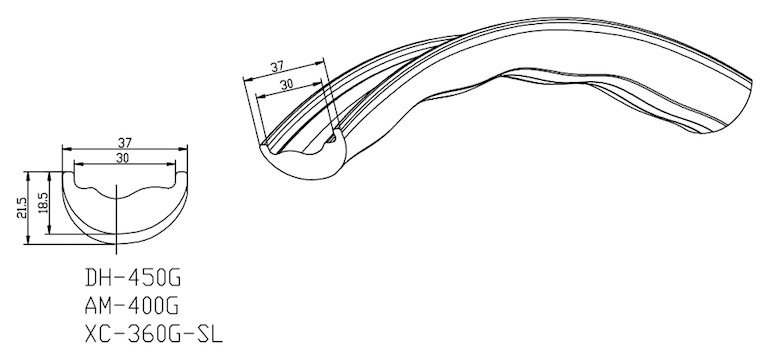

Outer Width: 37mm

Inner Width: 30mm

Depth: 21.5mm

Hookless Wall: 3.5mm

Offset: 3mm

Weight: XC 360g+/-15g; AM: 400g+/-15g; DH: 450g+/-15g

Flatness: ≤0.2mm

Roundness: ≤0.3mm
