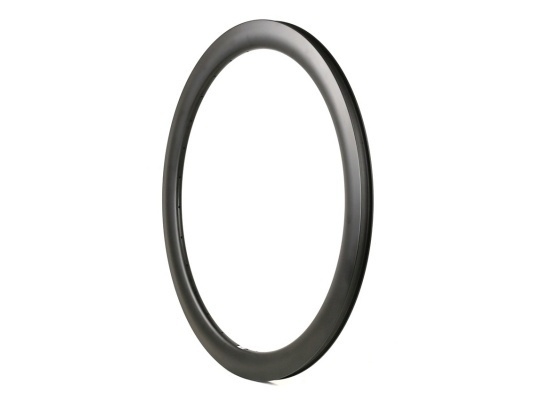

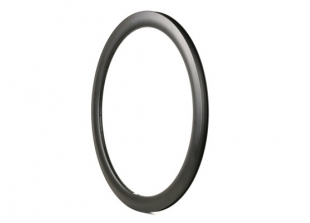

30mm Internal Wide Carbon Asym All-Road Gravel Hooked Tubeless Rims

External Width: 36mm

Internal Width: 30mm

Depth: 35mm / 40mm / 45mm

Weave: UD / 3K / 12K / Butterfly Pattern

Finish: Matte / Gloss / Non-Paint

Spoke count: 24H / 28H / 32H

Nipple hole: External / Internal

Standard Weight: 430g (35mm) / 465g (40mm) / 490g (45mm)

SL Weight: 385g (35mm) / 410g (40mm) / 440g (45mm)

Rider weight limit: 120KG

Max tire pressure: 125PSI

Max spoke tension: 140KGF

Flatness: ≤0.2mm

Roundness: ≤0.3mm

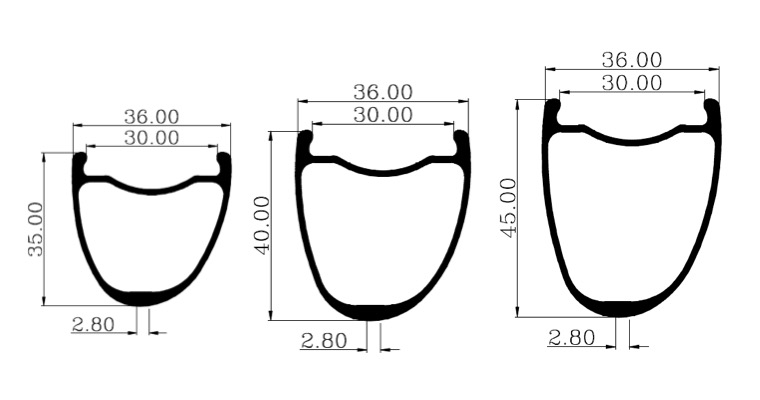

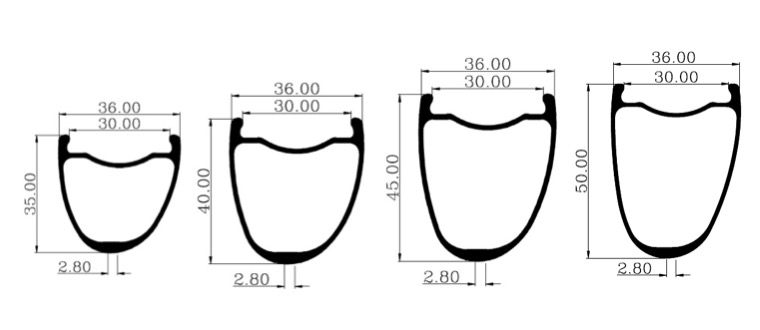

2.8mm offset helps even out the spoke tension for a more balanced wheel.

With a nice aero profile and rim shape designed to help crosswind stability.

Precise layup design with super smooth 3k inside wall results a light weight rim.
