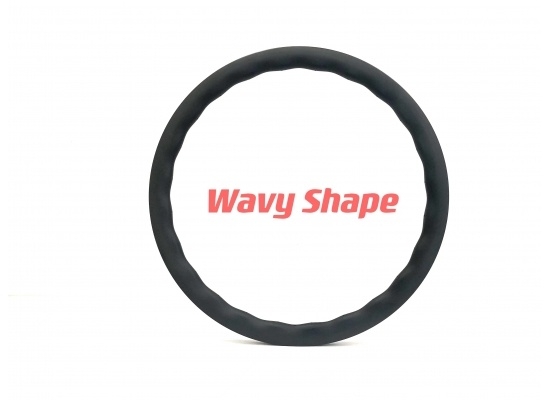

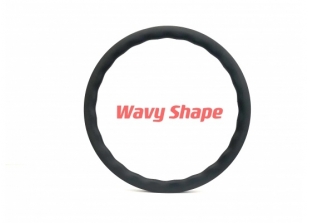

24mm Internal Wide Wavy Shape Carbon All-Road Gravel Tubeless Rims

External Width: 31mm

Internal Width: 24mm

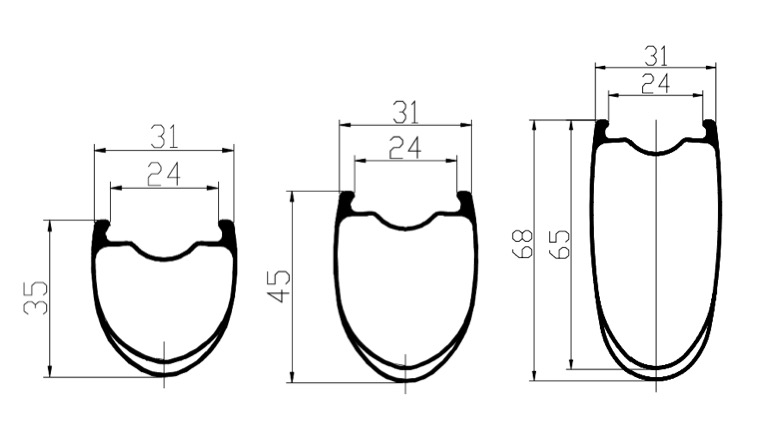

Depth: 35mm / 45mm / 68mm

Weave: UD / 3K / 12K / Butterfly Pattern

Finish: Matte / Gloss / Non-Paint

Spoke count: 24H

Nipple hole: External / Internal

Standard Weight: 420g (35mm) / 460g (45mm) / 560g (68mm)

SL Weight: 380g (35mm) / 420g (45mm) / 520g (68mm)

Rider weight limit: 120KG

Max tire pressure: 125PSI

Max spoke tension: 140KGF

Flatness: ≤0.2mm

Roundness: ≤0.3mm

Wavy shape design (irregular structure) provides muti-angle bracing to increase the strength / rigidity.

With a nice aero profile and rim shape designed to help crosswind stability.

Precise layup design with super smooth 3k inside wall results a light weight rim.
