21mm Internal Wide Carbon Road Disc Asym Hooked Wheelset

  • Item Num :
  • SC-28WHD35AC / SC-28WHD40AC / SC-28WHD45AC / SC-28WHD50AC / SC-28WHD80AC
Product Details

Rims                                                                                                Hubs

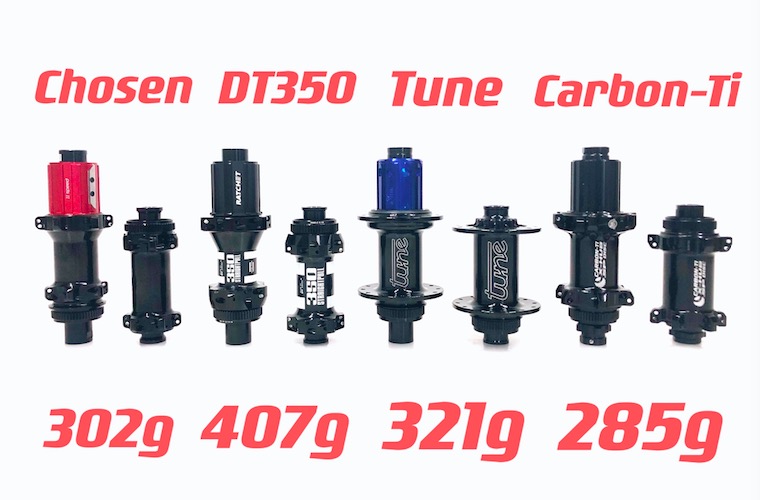

Material: Toray T700 (Imported from Japan / Korea)                         Chosen SL DISC 290g

Size: 700C                                                                                         DT Swiss 350s / 240s / 180s

External Width: 28mm                                                                        Carbon-Ti X-HUB SP DISC 270g

Internal Width: 21mm                                                                         Tune KillHill / ClimbHill 328g

Depth: 35mm / 40mm / 45mm / 50mm / 80mm                                    Tune Princess / Prince 262g

Weave: UD

Finish: Matt / Glossy (Customized with your logos)                                Spokes

Spoke count: 24/24H                                                                           Pillar PSR AERO 1423

Nipple hole: External / Internal                                                             Sapim CX-Ray

Weight: From 1320g+/-30g (Varied with different hubs and spokes)

Rider weight limit: 120KG

Max tire pressure: 125PSI

Max spoke tension: 140KGF

Flatness: ≤0.2mm

Roundness: ≤0.3mm



Highlights

28mm external wide / 21mm internal wide to fit wider tires.

2.5mm offset helps even out the spoke tension for a more balanced wheel.

With a nice aero profile and rim shape designed to help crosswind stability.

Precise layup design with super smooth 3k inside wall results a light weight rim.
