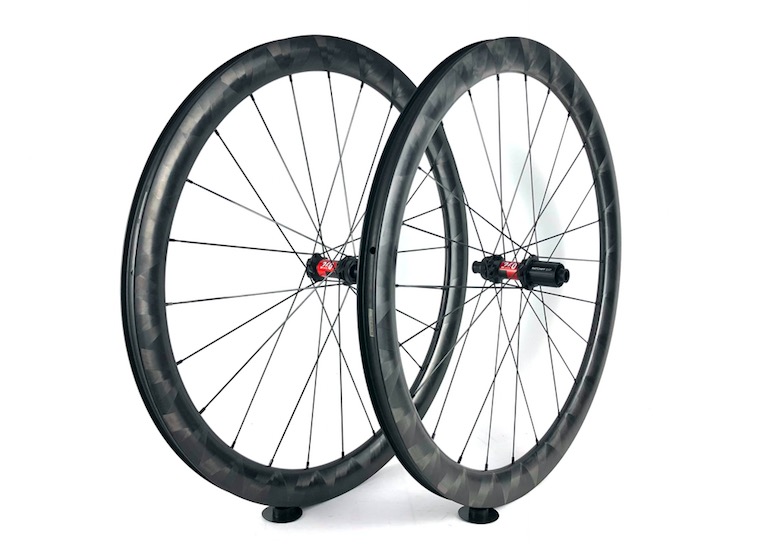

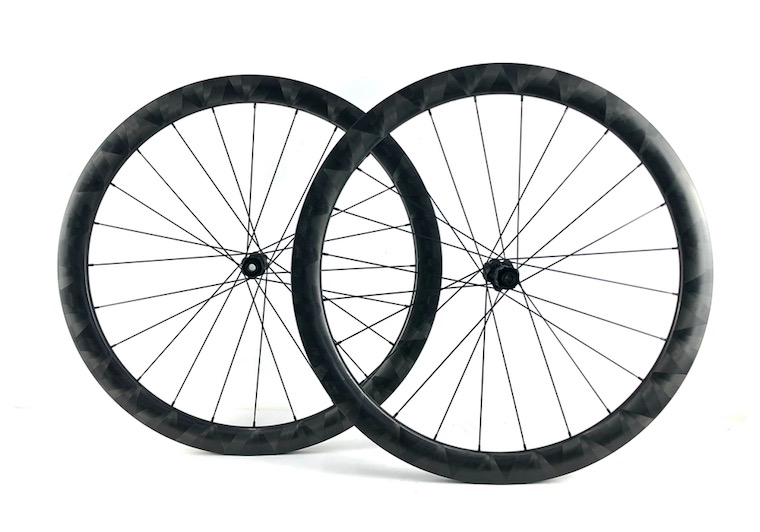

21mm Internal Wide Carbon Road Disc Tubeless Wheelset

  • Item Num :
  • SC-28WHD35TL / SC-28WHD45TL / SC-28WHD50TL / SC-28WHD55TL
Product Details

Rims

Material: Toray T700 / T800

Size: 700C

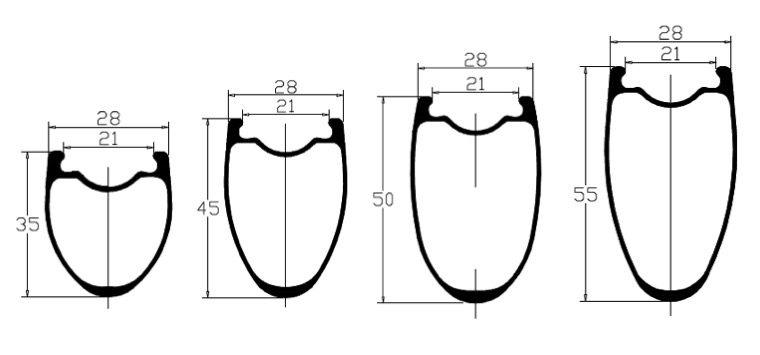

External Width: 28mm

Internal Width: 21mm

Depth: 35mm / 45mm / 50mm / 55mm

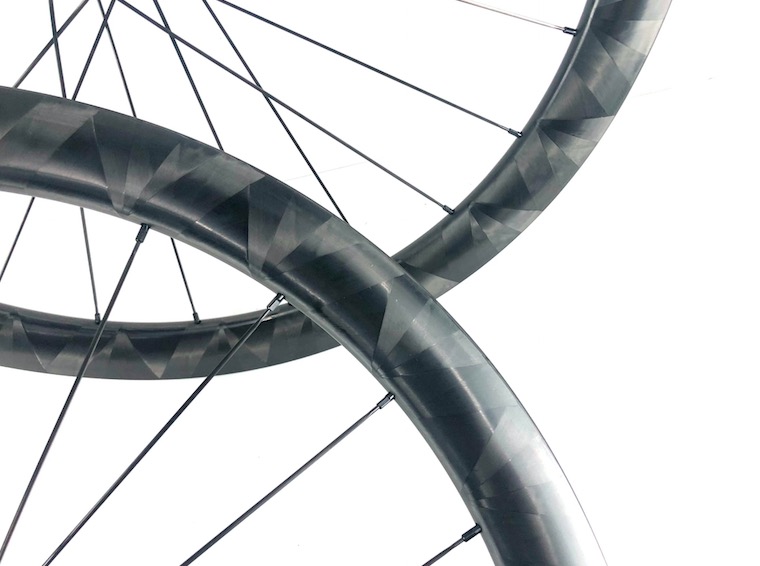

Weave: UD / 3K / 12K / Butterfly Pattern

Finish: Matte / Gloss / Non-Paint

Spoke count: 24/24H

Nipple hole: External / Internal

Weight: From 1280g+/-30g

Rider weight limit: 120KG

Max tire pressure: 125PSI

Max spoke tension: 140KGF

Flatness: ≤0.2mm

Roundness: ≤0.3mm

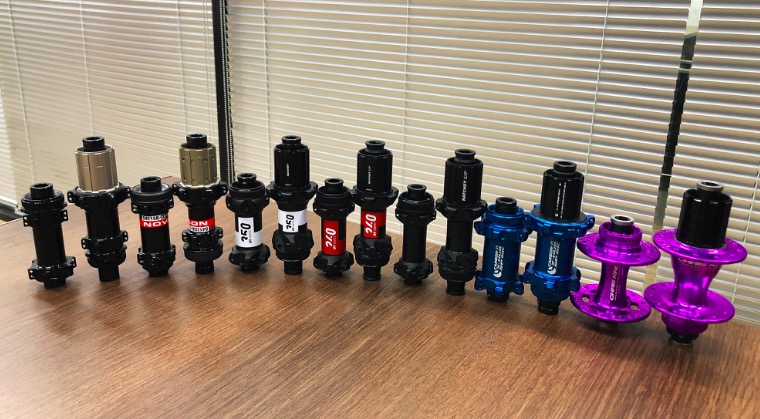

Hubs

Powerway CT43 (308g)

Novatec D411/D412 (329g)

DT Swiss 350 (364g)

DT Swiss 240 (310g)

DT Swiss 180 (284g)

Carbon-Ti X-HUB SP DISC (286g)

Chris King R45D (404g)


Spokes

Sapim CX-Ray

Pillar PSR AERO 1423



Highlights

28mm external wide / 21mm internal wide to fit wider tires.

With a nice aero profile and rim shape designed to help crosswind stability.

Precise layup design with super smooth 3k inside wall results a light weight rim.
