24mm Internal Wide Carbon Gravel 650B Asym Hookless Rims

  • Item Num :
  • SC-30GD24AB / SC-30GD35AB
Product Details

Using a 650b x 47mm tire you have the same outside tire diameter as a 700c road tire, so for your gravel bike you can run the 650b gravel tires for off road riding, and swap to 700c road wheels for road group rides and nothing changes with the geometry or gear ration on the bike.


Material: Toray T700

Size: Gravel 650B Hookless

Type: Without brake surface for disc brake

Outer Width: 30mm

Inner Width: 24mm

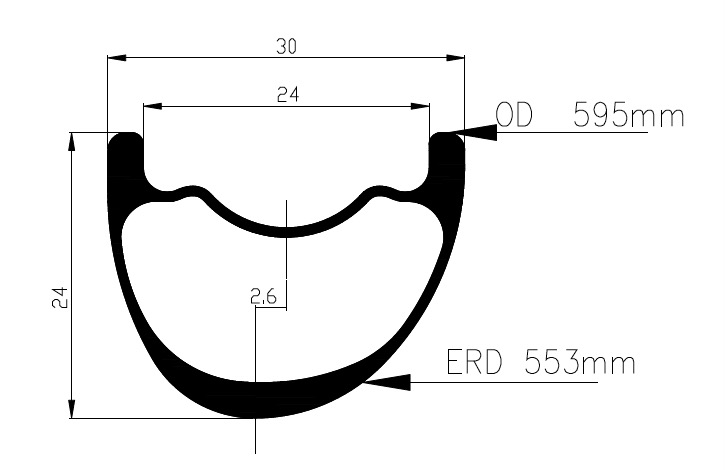

Depth: 24mm / 35mm

Offset: 2.6mm

Weave: UD / 3K / 12K

Finish: Matt / Glossy

Spoke count: 24H / 28H / 32H

Nipple hole: External / Internal

Weight: 360g+/-15g (24mm deep) / 390g+/-15g (35mm deep)

Rider weight limit: 120KG

Max spoke tension: 140KGF

Max tire pressure: 65PSI

Flatness: ≤0.2mm

Roundness: ≤0.3mm


30mm external wide / 24mm internal wide to fit wider tires.

2.6mm offset helps even out the spoke tension for a more balanced wheel.

Hookless design provides the best impact resistance.

With a nice aero profile and rim shape designed to help crosswind stability.
