18.5mm Low Profile Carbon 29er MTB Asymmetric Hookless Rims

  • Item Num :
  • SC-32M18A29 / SC-37M18A29 / SC-42M18A29
Product Details

Highlights

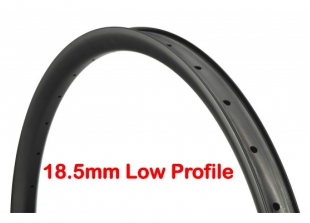

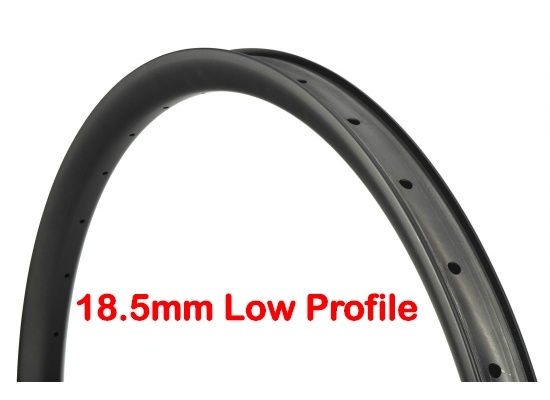

- Low profile sidewall 18.5mm creates a lighter rim that absorbs impacts for less rolling resistance and superior ride quality

- Asymmetric rim shape with 3mm offset drilling improves bracing angle and balances spoke tension to create a stronger wheel.

- Proprietary carbon fiber layup process equalizes impact forces on both long and short sides of rims to make both stronger.



Specs

Material: Toray T700 / T800

Size: 29er MTB

Type: Asymmetric Hookless

Weave: UD / 3K / 12K

Finish: Matt / Glossy

Spoke Count: 28H / 32H

Nipple Hole: External / Internal

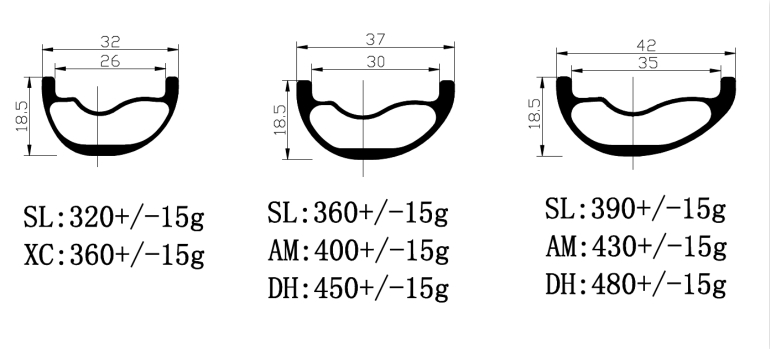

Outer Width: 32mm / 37mm / 42mm

Inner Width: 26mm / 30mm / 35mm

Depth: 18.5mm

Hookless Wall: 3.5mm

Offset: 3mm

Weight for 26mm internal wide: 320g+/-15g (SL)  360g+/-15g (XC)

Weight for 30mm internal wide: 360g+/-15g (SL)  400g+/-15g (AM)  450g+/-15g (DH)

Weight for 35mm internal wide: 390g+/-15g (SL)  430g+/-15g (AM)  480g+/-15g (DH)

Flatness: ≤0.2mm

Roundness: ≤0.3mm
