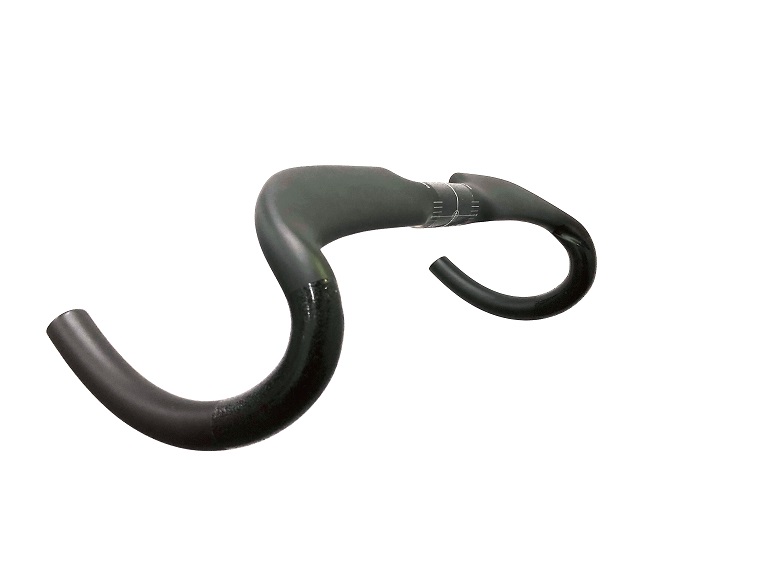

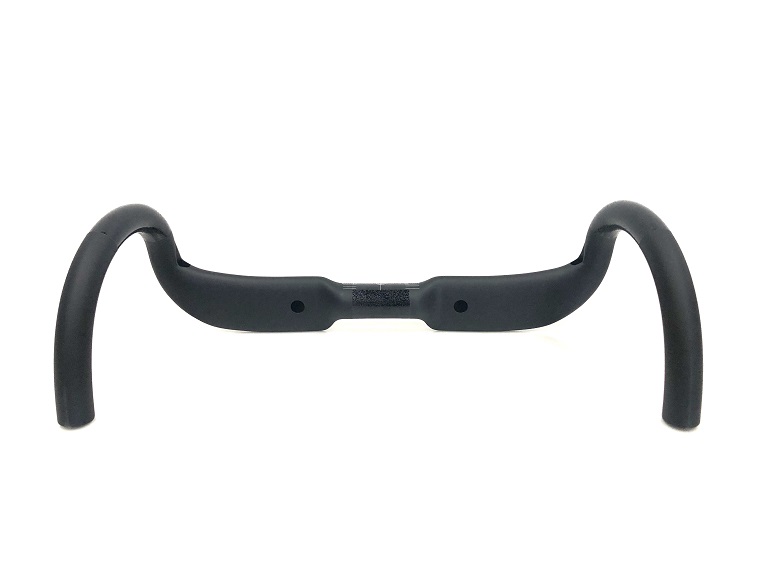

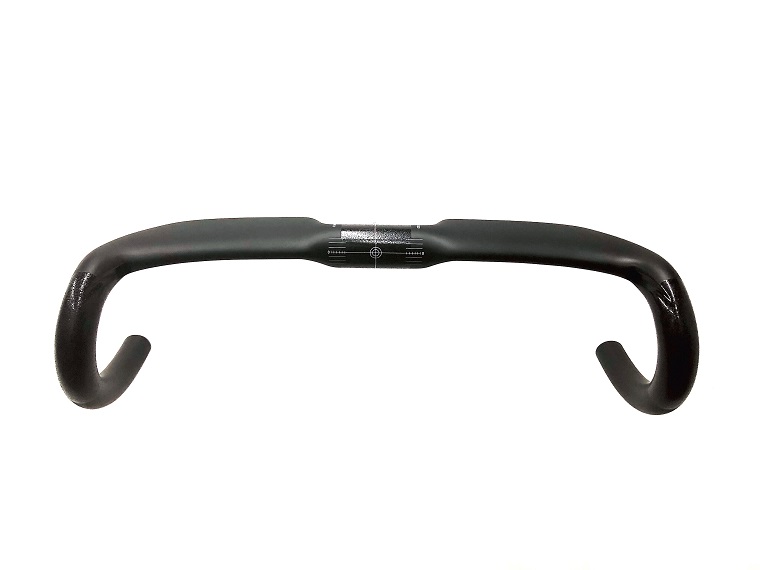

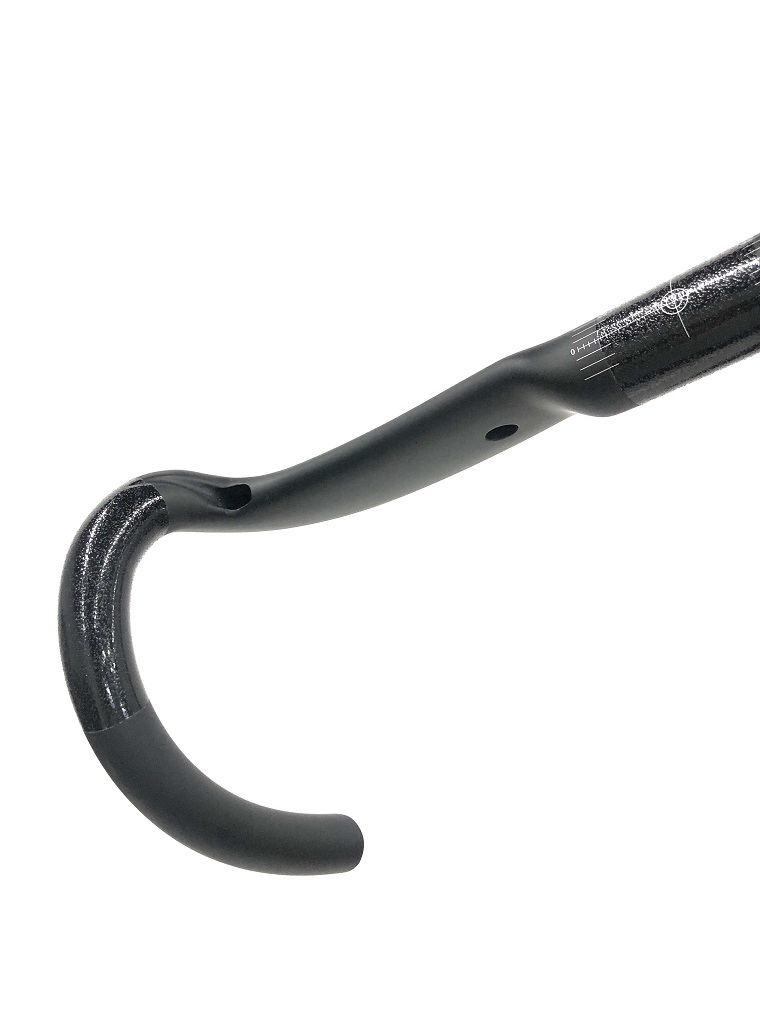

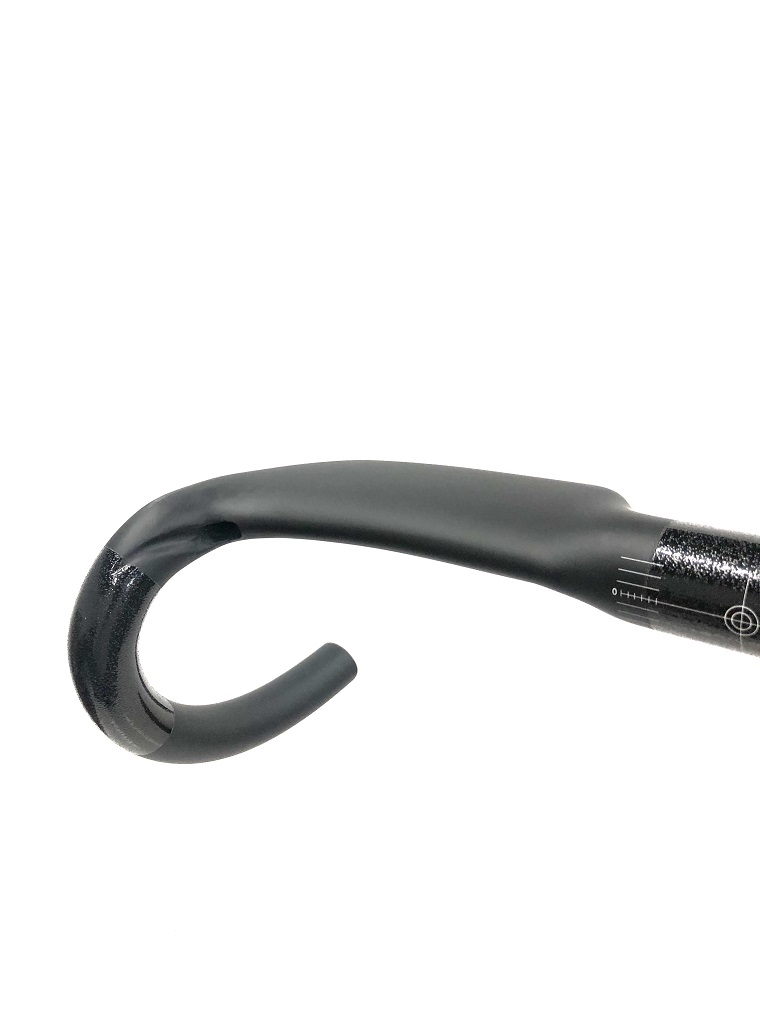

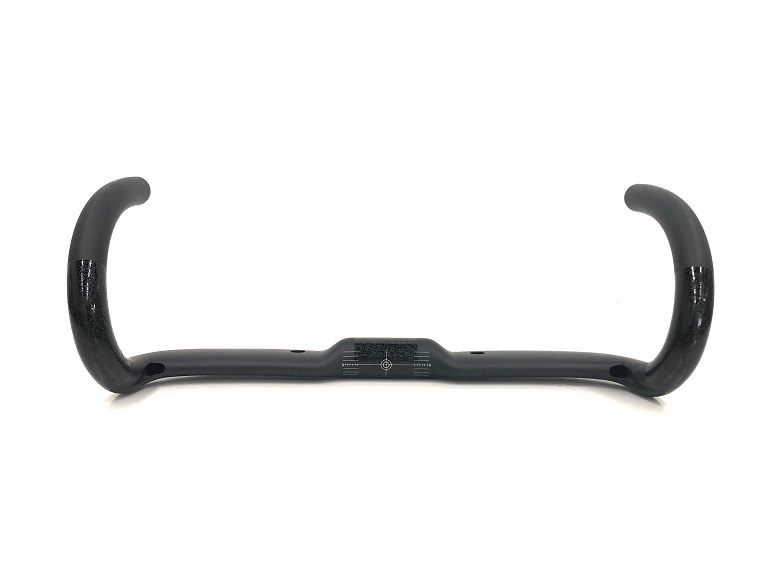

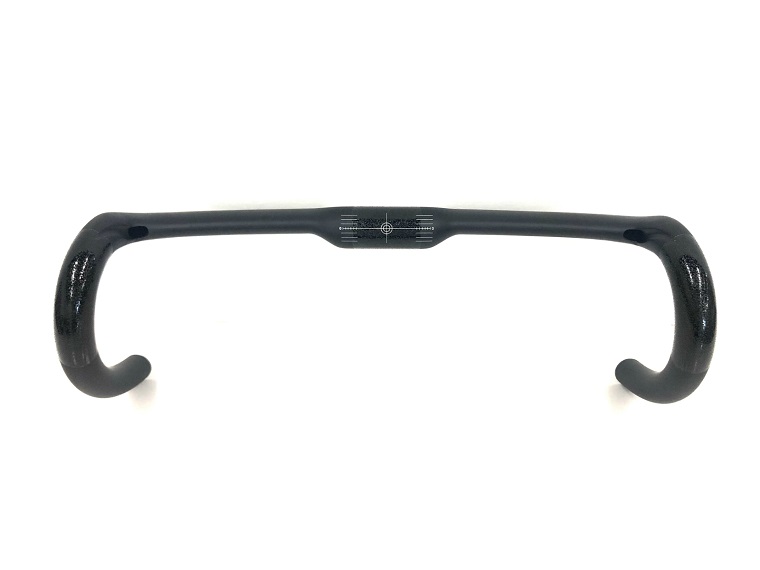

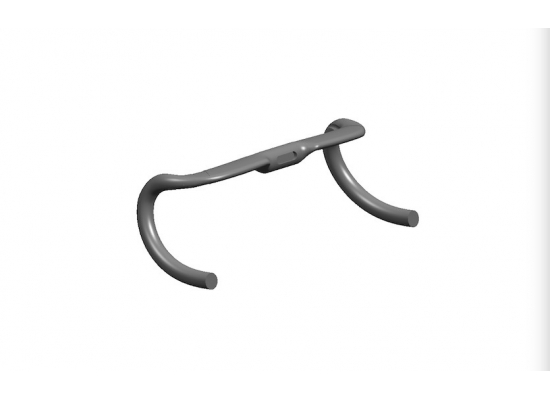

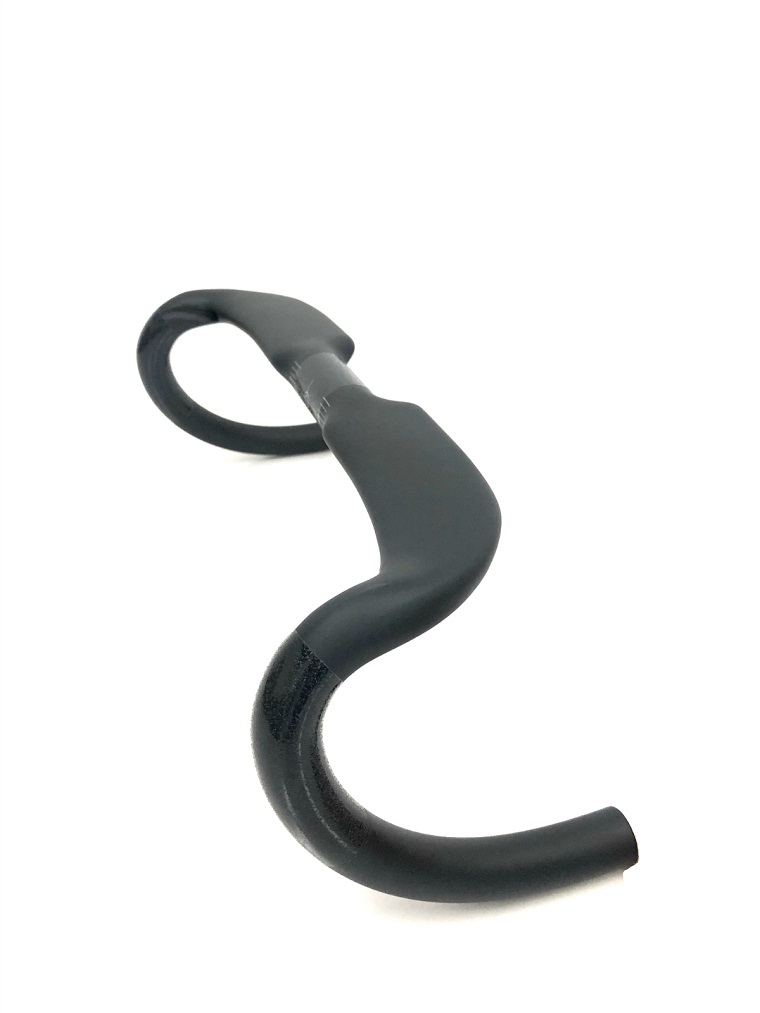

Carbon Aero Road Flare 10° Handlebar (SC-RH01)

  • Item Num :
  • SC-RH01
Product Details

An aerodynamically optimized road drop handlebar featuring the latest in electric drivetrain compatibility that will help you go faster through careful handlebar shaping and reducing the rider's frontal area. It is proven in the wind tunnel as not only a very fast bar in itself but also one that puts the rider into a more aerodynamic position.

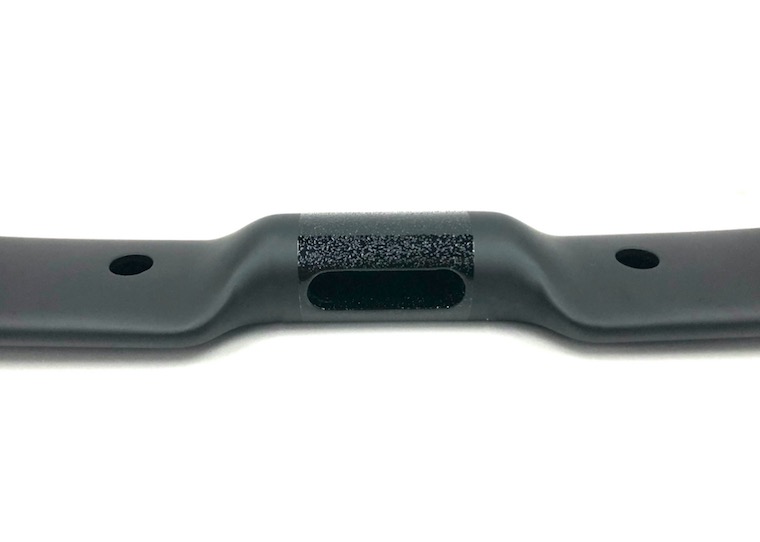

The bar is designed with a big hole cut at the back of clamping area where is reinforced with extra carbon fiber to achieve the FULL internal cable routing which results a cleaner bike (compatible with Vision ACR system).



Materials: Toray T700 / T800 Carbon

Finish: UD Matt Black

Width C to C in Hoods: 350mm / 370mm / 390mm

Width C to C in Drops: 400mm / 420mm / 440mm

Weight: 280g+/-10g

Drop: 130mm

Reach: 82mm

Flare: 10 Degrees

Clamp Diameter: 31.8mm

Torque Spec Faceplate: 5.5Nm

Torque Spec Controls: 6~8Nm

Test: ISO 4210

Warranty: Two years
