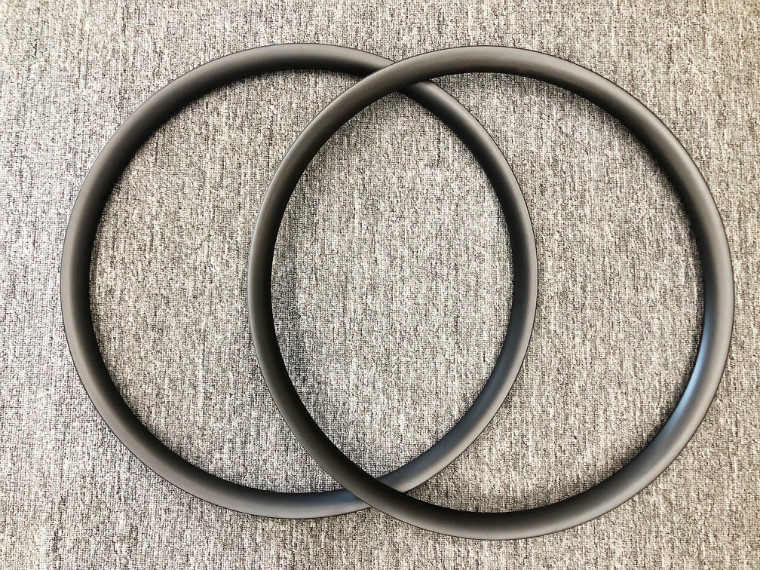

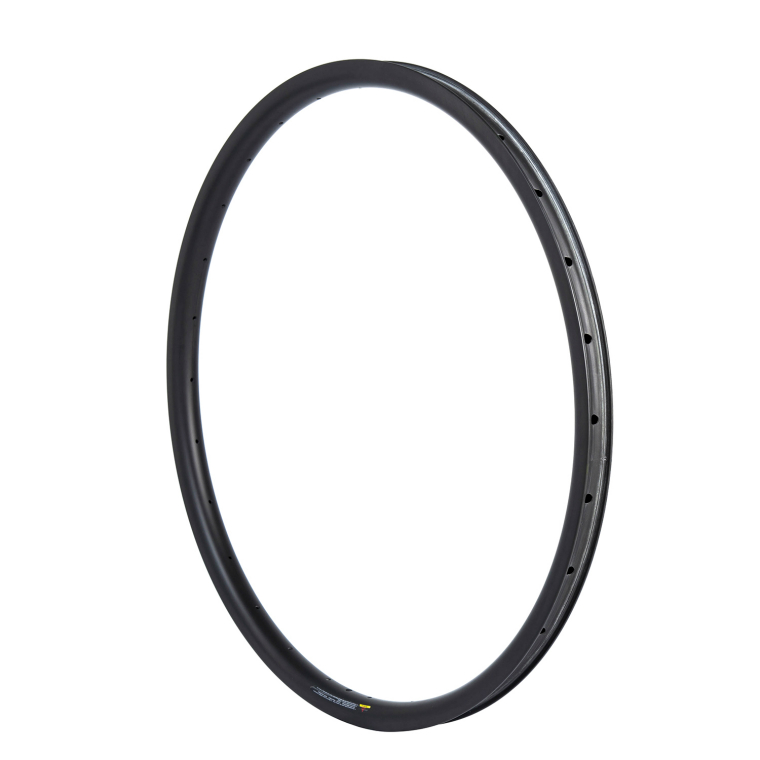

V Shape Carbon 27.5er MTB Asymmetric Hookless Rims

  • Item Num :
  • SC-33M25A275 / SC-38M28A275
Product Details


Material: Toray T700

Size: 27.5er

Type: Asymmetric Hookless

Weave: UD / 3K / 12K

Finish: Matt / Glossy

Spoke Count: 16-32H

Nipple Hole: External / Internal

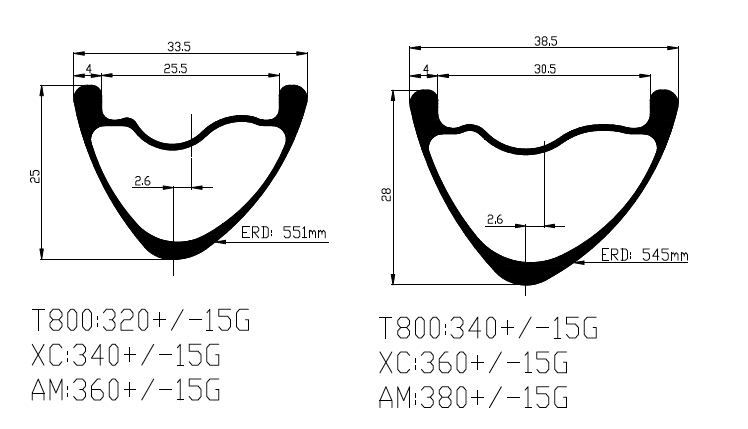

Outer Width: 33.5mm / 38.5mm

Inner Width: 25.5mm / 30.5mm

Depth: 25mm / 28mm

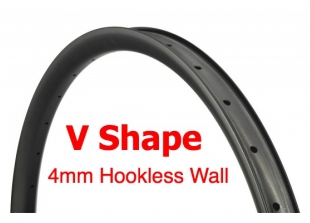

Hookless lip: 4mm

Offset: 2.6mm

Weight for 25.5mm internal wide: 320g+/-15g (T800 XC)  340g+/-15g (XC)  360g+/-15g (AM)

Weight for 30.5mm internal wide: 340g+/-15g (T800 XC)  360g+/-15g (XC)  380g+/-15g (AM)

Flatness: ≤0.2mm

Roundness: ≤0.3mm

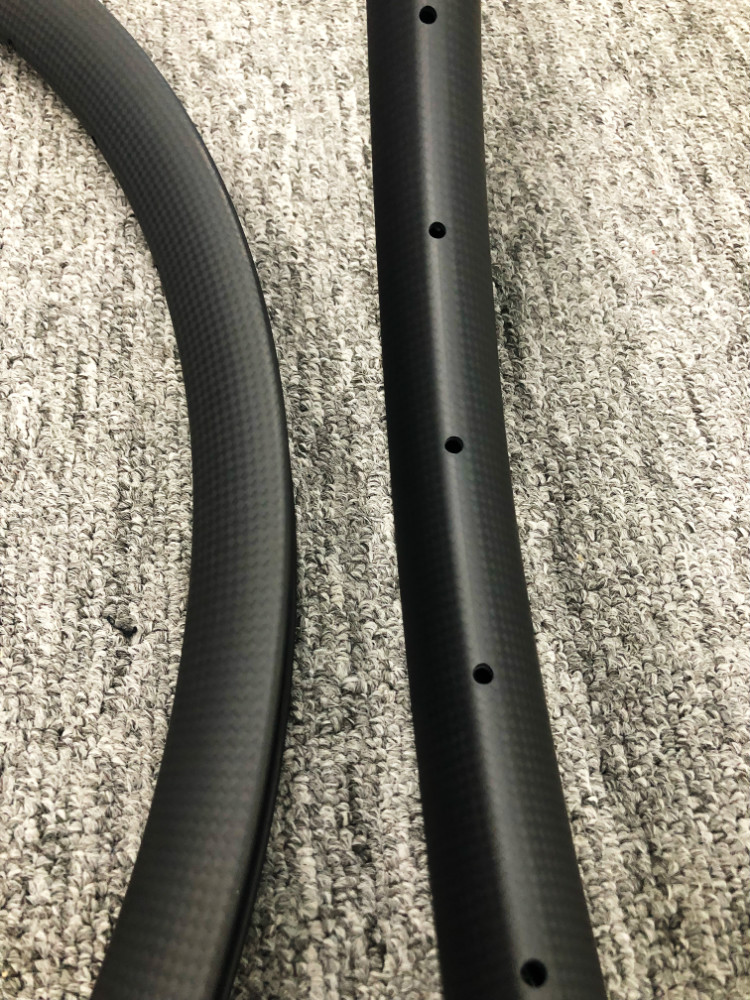

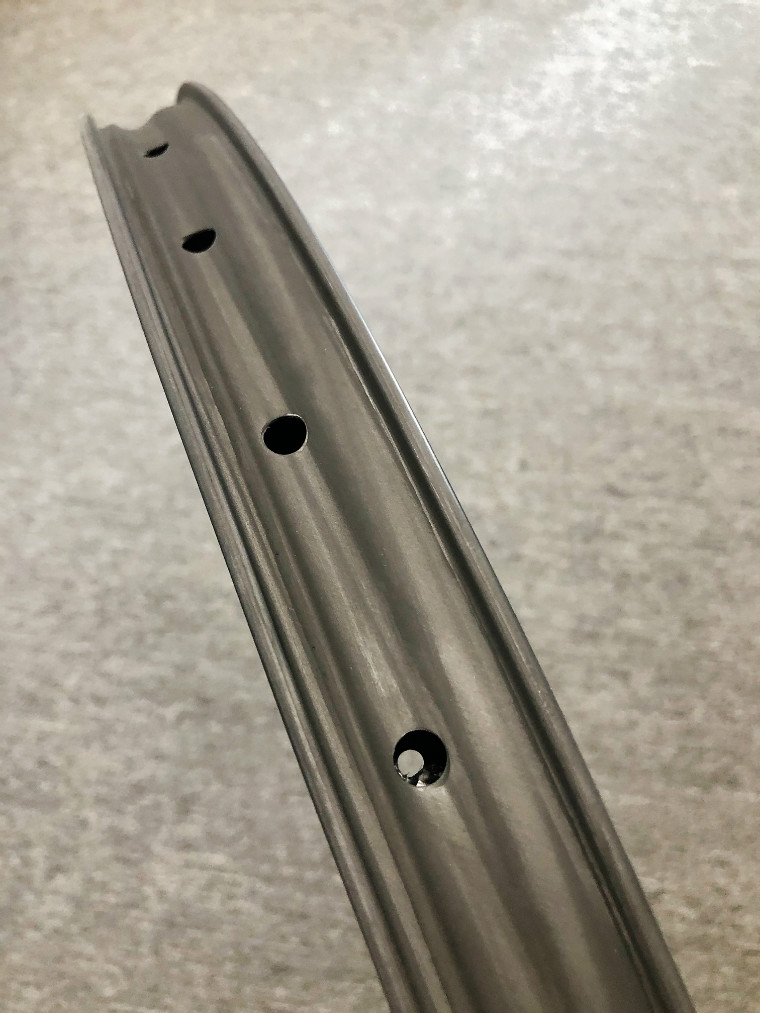

Super smooth 3k inside wall without excess resin.

Carbon fiber wrapped over to the bead area to provide the best impact resistance

Precise layup design results a light weight rim.

Lab impact test to guarantee the best strength.

Asymmetric design for better balance and stiffness.

Ability to run lower tire pressure and improve traction and rolling resistance.

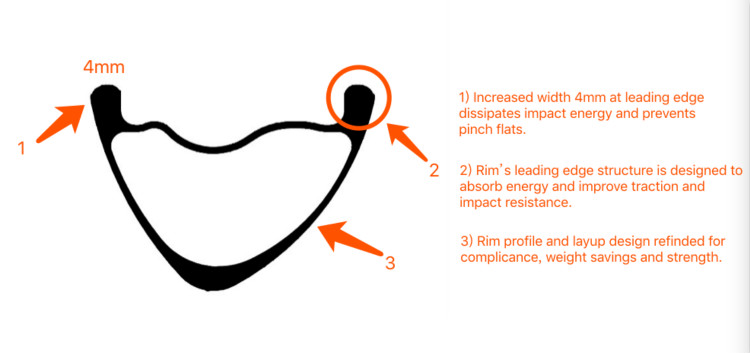

Increased width at leading edge dissipates impact energy and prevent pinch flats.
