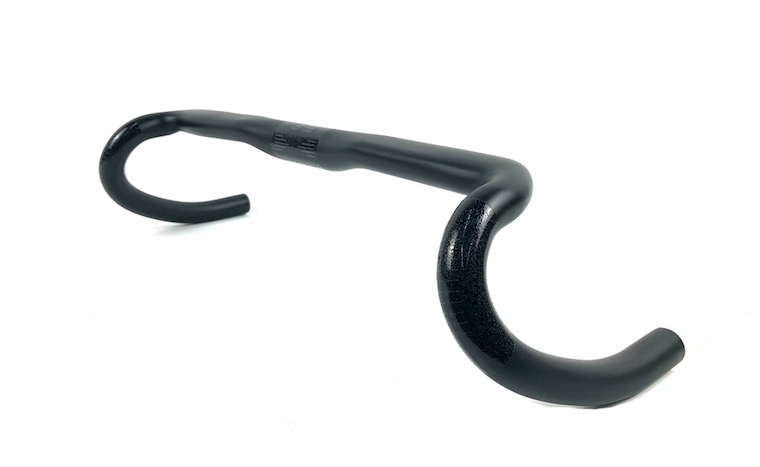

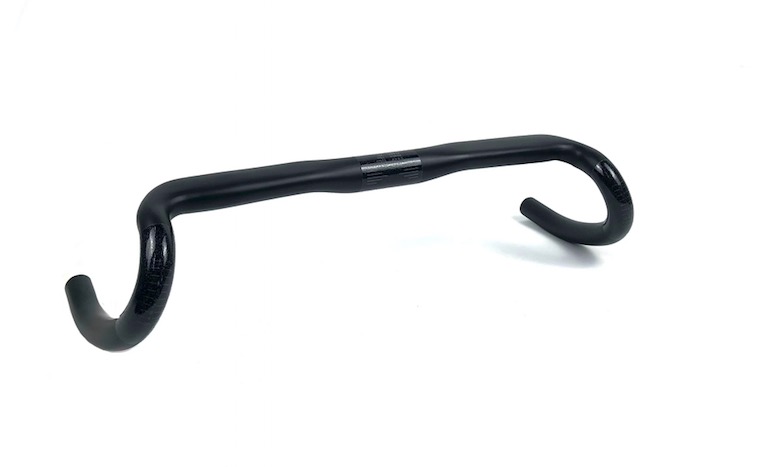

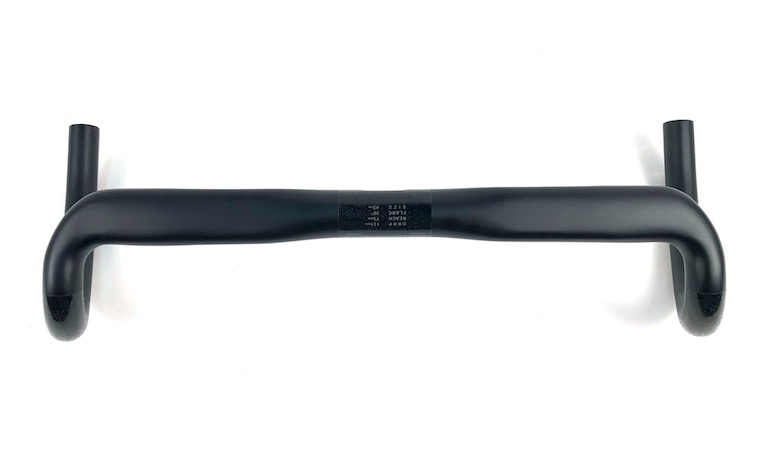

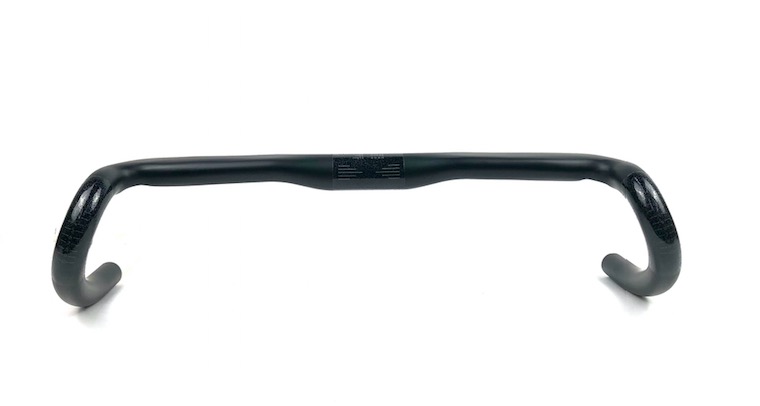

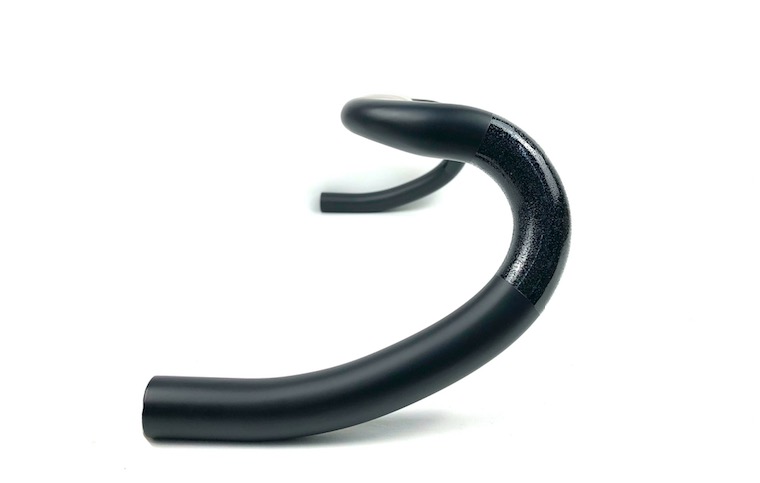

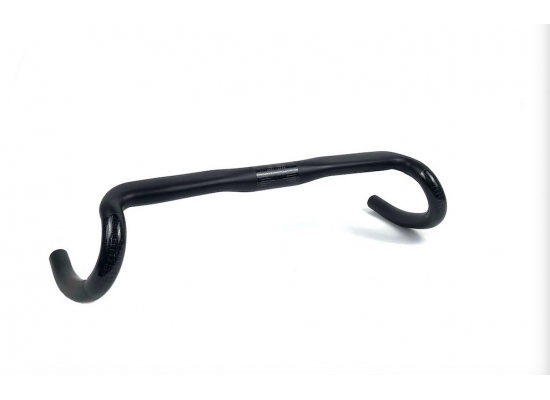

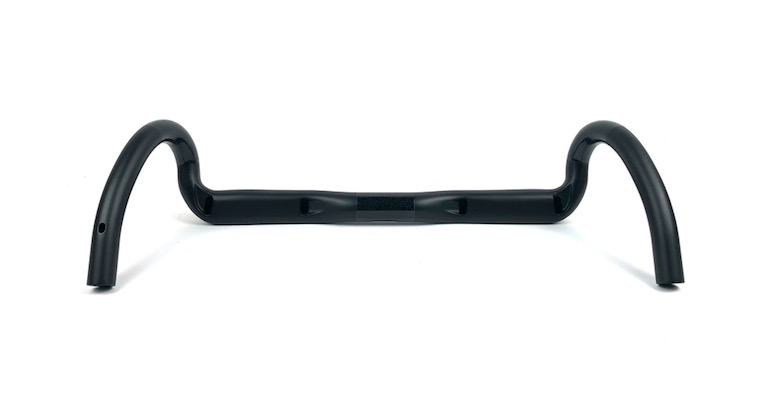

Carbon Gravel Flare 20° Handlebar (SC-GH05)

  • Item Num :
  • SC-GH05
Product Details

The carbon Gravel handlebar is designed for comfort and control in challenging situation, specifically aimed at long distance touring, Gravel, or off-road pursuit. The flare 20 degree or 83.7mm in the drops creates an increase stability when descending or riding in the drop position.

It is one of the stiffest gravel bar in the market that passed impact test in house (10kg weight on both side and release from 400mm). Stiffness is our first consideration when developing this bar, you must make sure it is strong as needs to carry weight from the bags and take big hits from the road.



Materials: Toray T700 / T800 Carbon

Finish: UD Matt Black

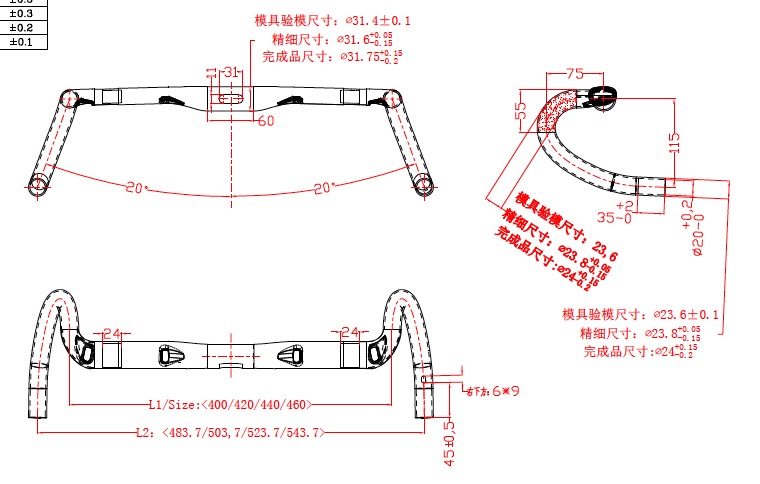

Width C to C in Hoods: 400mm / 420mm / 440mm / 460mm

Width C to C in Drops: 483.7mm / 503.7mm / 523.7mm / 543.7mm

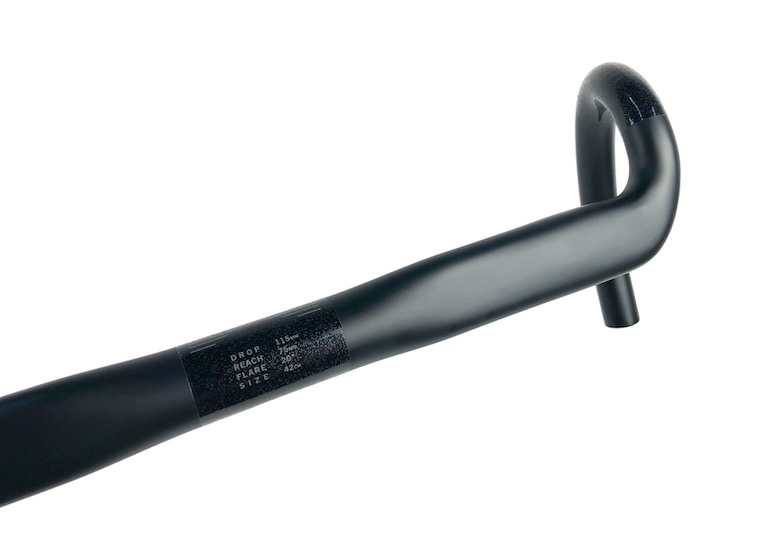

Flare: 20 Degrees

Drop: 115mm

Reach: 75mm

Weight: 255g+/-15g (420mm)

Clamp Diameter: 31.8mm

Torque Spec Faceplate: 5.5Nm

Torque Spec Controls: 6~8Nm

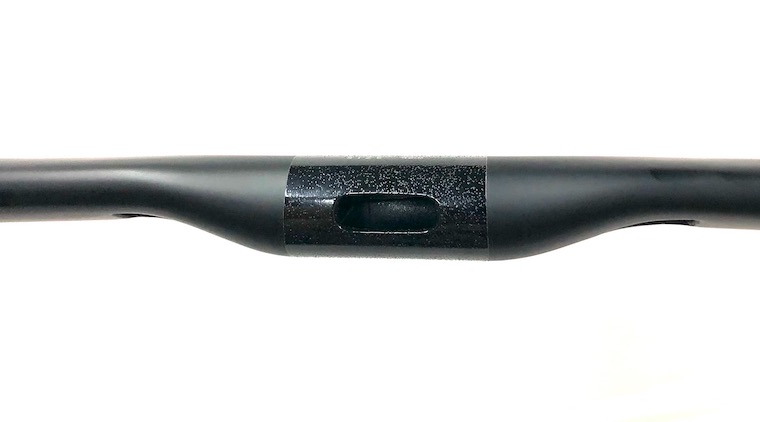

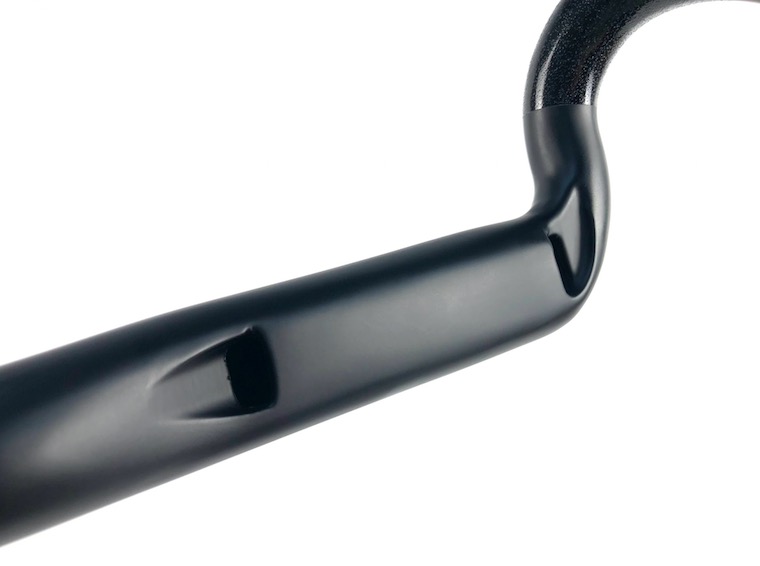

Cable Routing: Full Internal Compatible

Di2 Compatible: Yes (Di2 bar end junction)

Test: ISO 4210

Warranty: Two years
