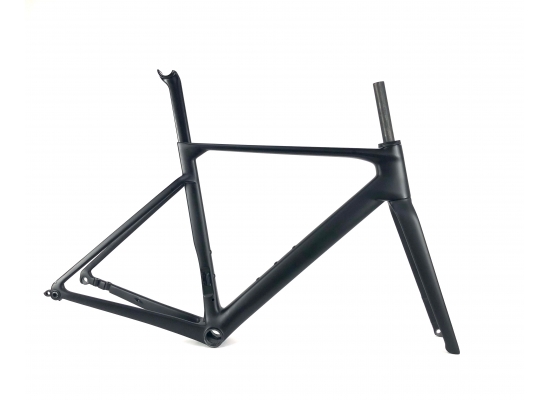

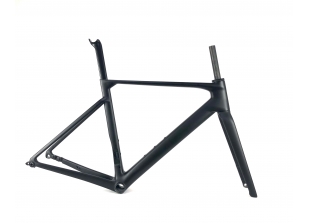

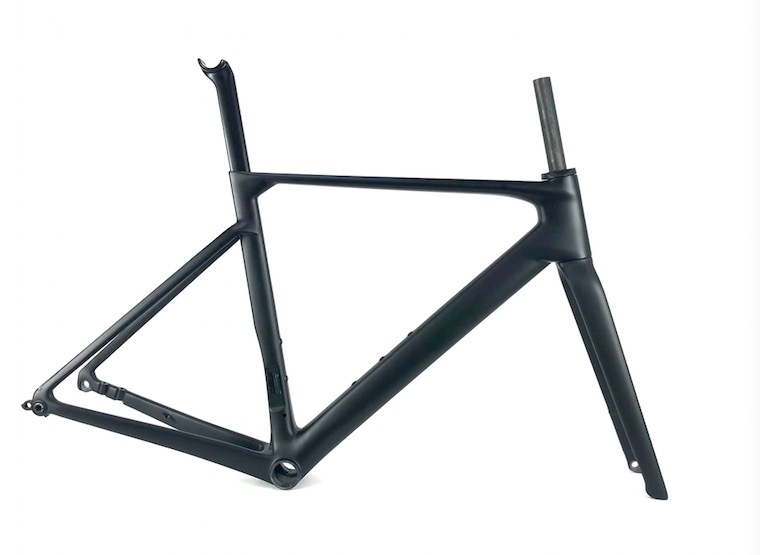

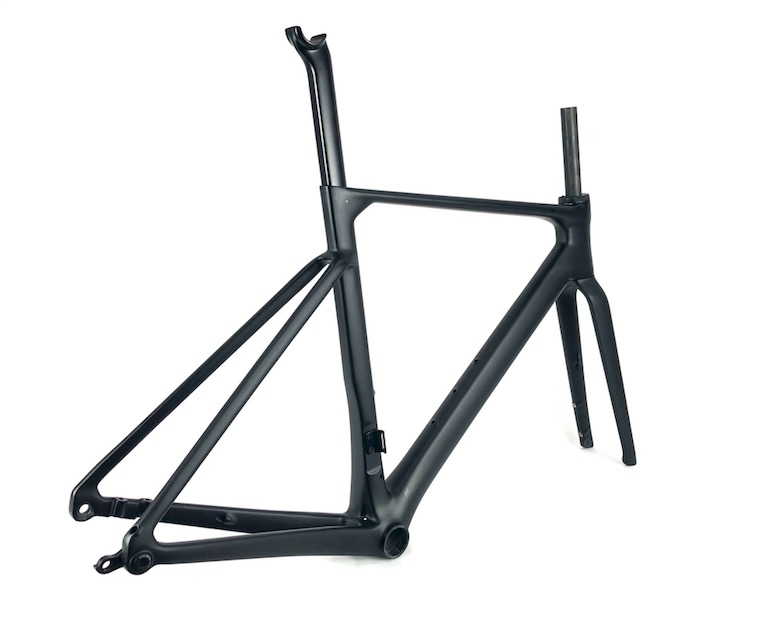

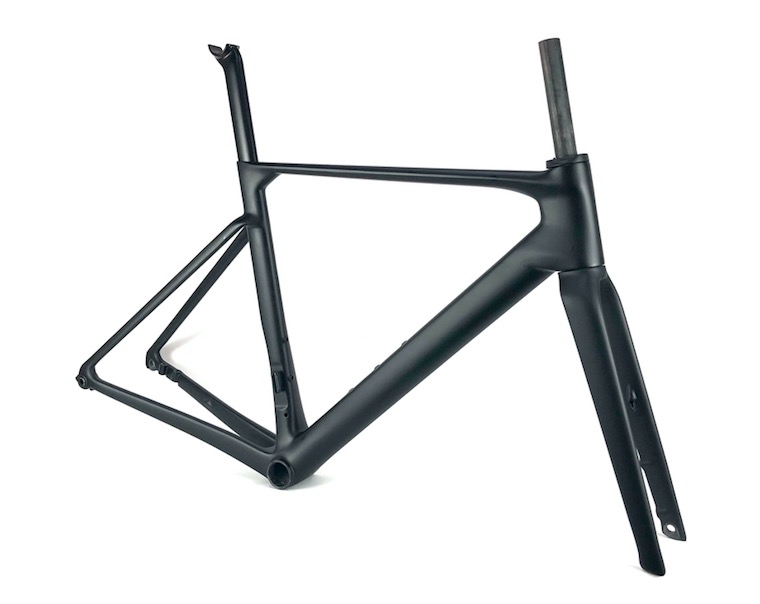

Carbon Integrated Road Disc Frameset (SC-R55D)

Product Details

Specs

Material: Toray M40J T800 / T1100

Type: 700C Road Disc

Finish: UD Marble Clear Coat Matte (Custom Color Painting Are Optional)

Headset: FSA NO.55R ACR 1.5" Fully-Integrated

BB: Press Fit BB86.5*41mm

51cm Weight: 780g (frame) + 77g (Aluminum Parts) + 50g (Painting)

Fork Weight: 420g+/-15g

Seatpost Weight: 195g+/-10g

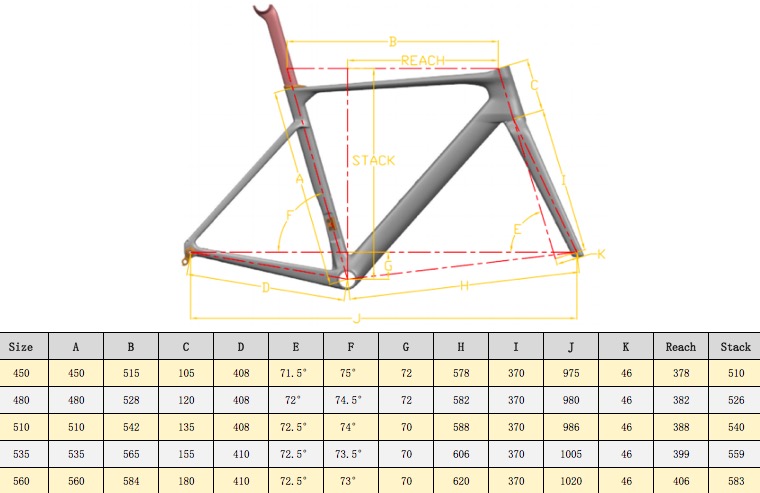

Frame Size: 45cm / 48cm / 51cm / 53.5cm / 56cm

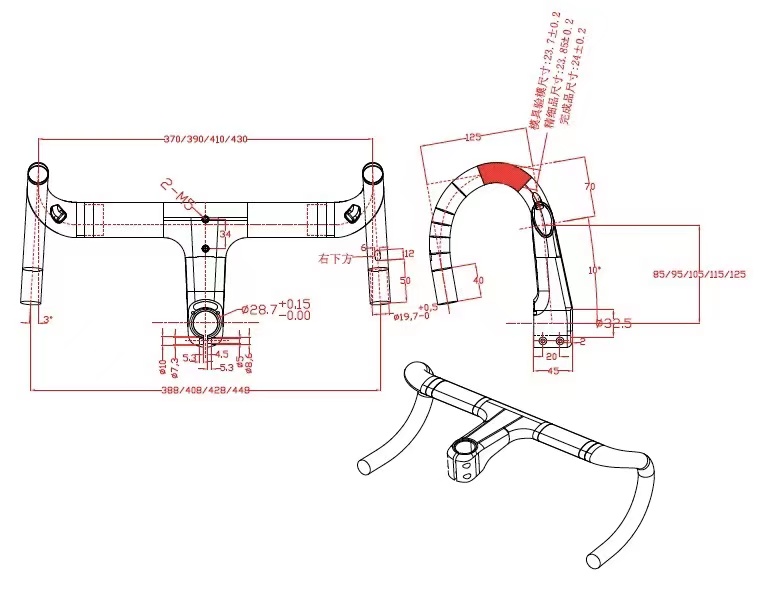

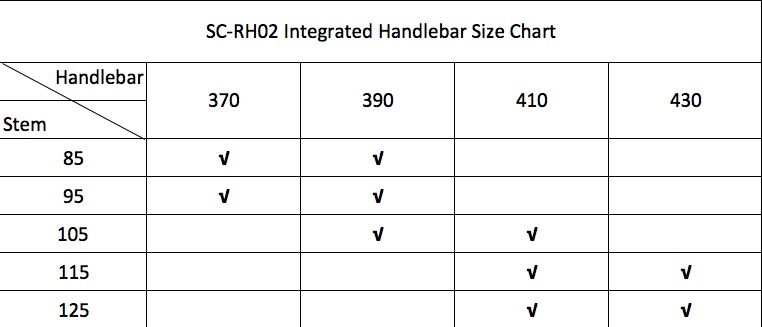

Handlebar Size: 370mm / 390mm / 410mm / 430mm (C to C in hoods)

Stem Size: 85mm / 95mm / 105mm / 115mm / 125mm

Seatpost Offset: 15mm or 0mm

Cable Routing: Full Internal

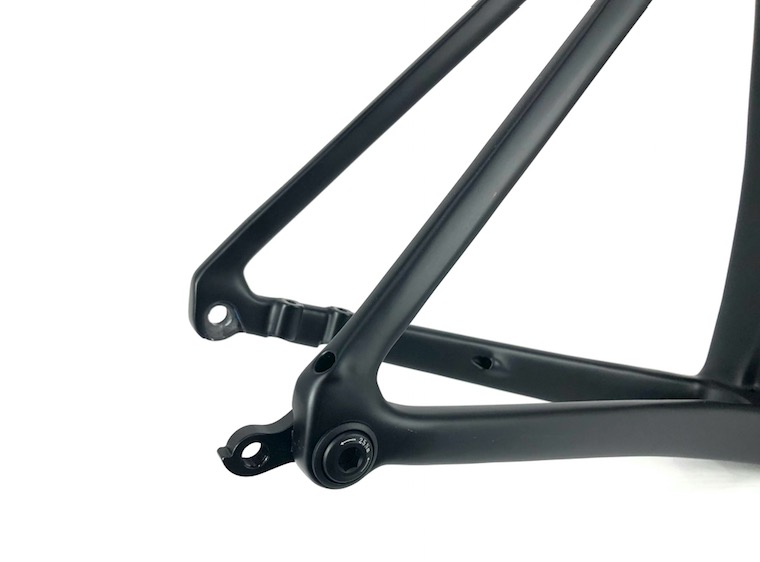

Hanger Syetem: UDH

Di2 Compatible: Yes

Disc Mount: Flat Mount

Max Tire Clearance: 700 x 32c

TA: 12x100mm / 12x142mm

Test: ISO 4210

Warranty: Two Years
