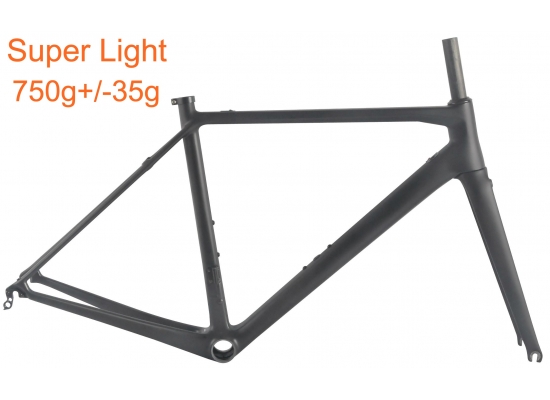

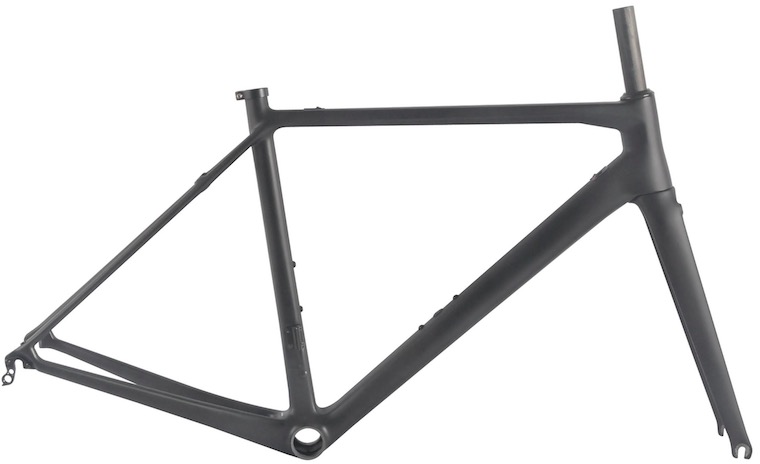

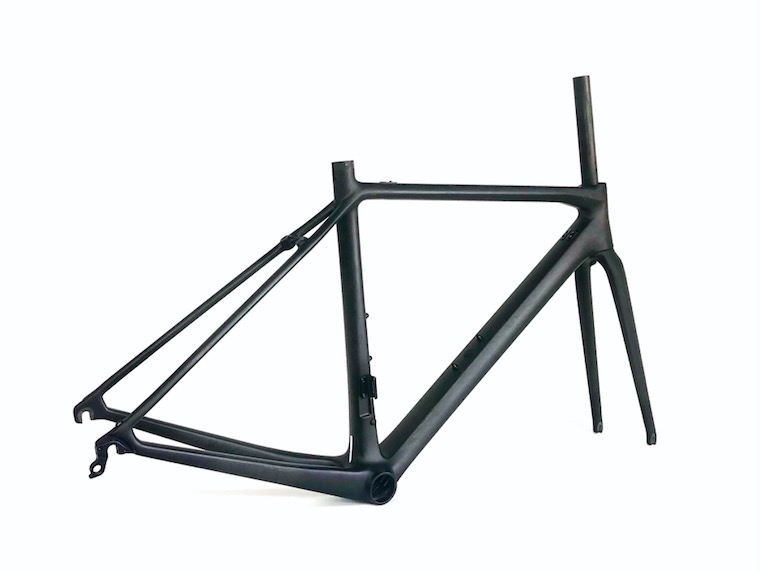

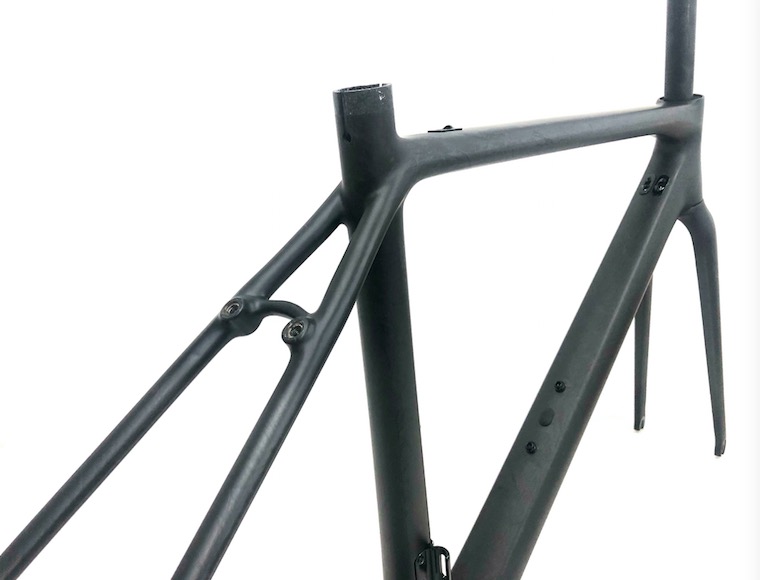

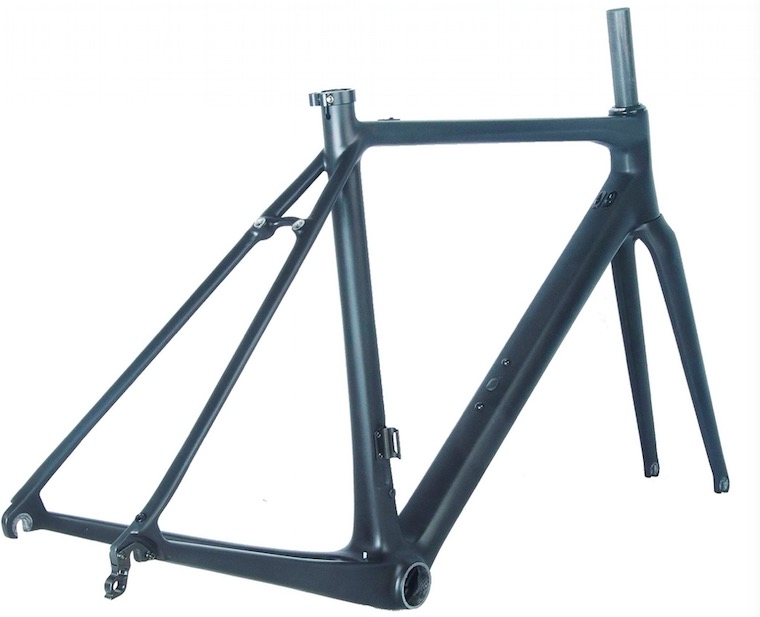

Carbon Road Bicycle Frameset (SC-R48V)

  • Item Num :
  • SC-R48V
Product Details

Feature

- EPS technology with latex double molds guarantees maximum control of internal and external surfaces and thickness, it results a smooth frame, free of excess materials and fully compliant with design specifications.

- Higher modulus of carbon fiber is applied to reduce the weight without sacrificing the strength and rigidity.

- Super light layup design, weighs from 770g+/-35g including all alloy parts needed / excluding final color painting.



Specs

Material: Toray M40J T800 / T1000

Type: 700C Road

Appearance: UDM

Finish: Glossy / Matt

Front Brake: Direct Mount

Headset: 1 1/8" - 1 1/2"

BB: BB86.5

Weight: From 750g+/-35g (Including all alloy parts needed / excluding the final color painting)

Seat Post: 27.2mm

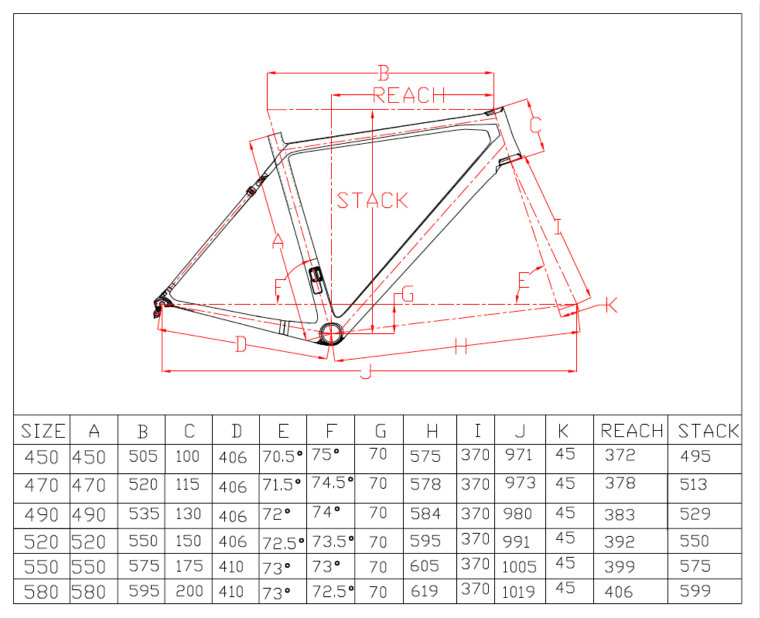

Size: 45cm / 47cm / 49cm / 52cm / 55cm / 58cm

Di2 Compatible: Yes

Tire: 28c

Test: ISO 4210

Warranty: Two Years
