Carbon Adventure Bikepacking Fork (SC-ADV09)

  • Item Num :
  • SC-ADV09
Product Details

Highlights

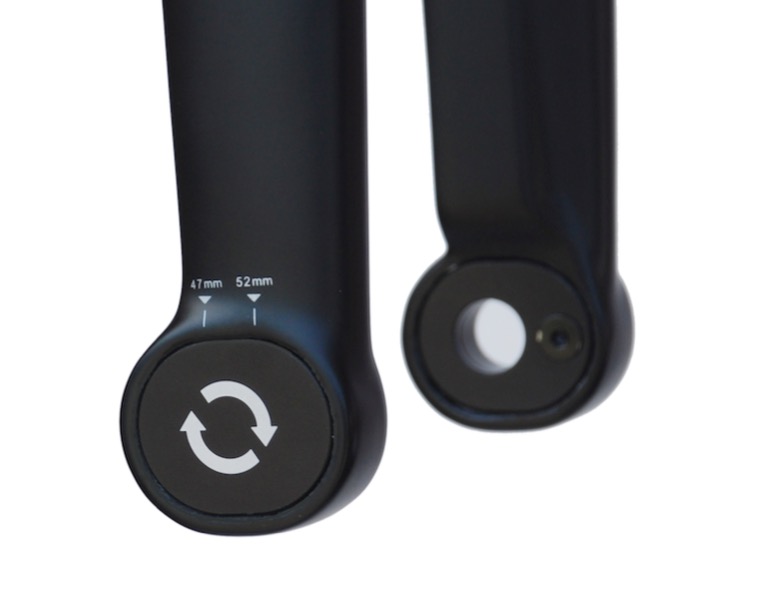

Reversible drop-out chips for adjustable rake between 47mm and 52mm.

- Super wide tire clearance for up to 700 x 55c / 650b x 2.4" allows a great choice of tires

- Dynamo cable routing not only for lighting (M6 mount front of crown) but also for USB charging ports.

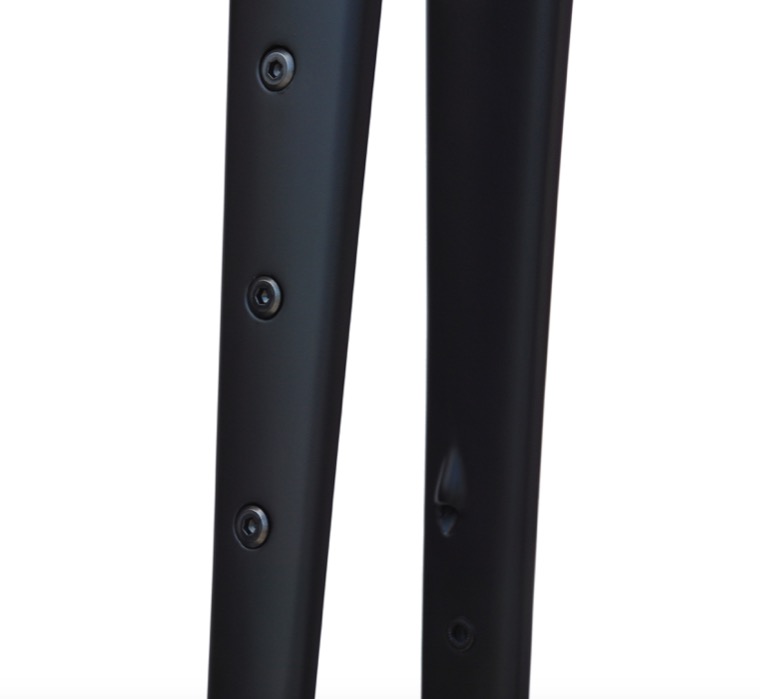

- 10 eyelets riveted for anything cages, fenders, racks, panniers and light mounting.

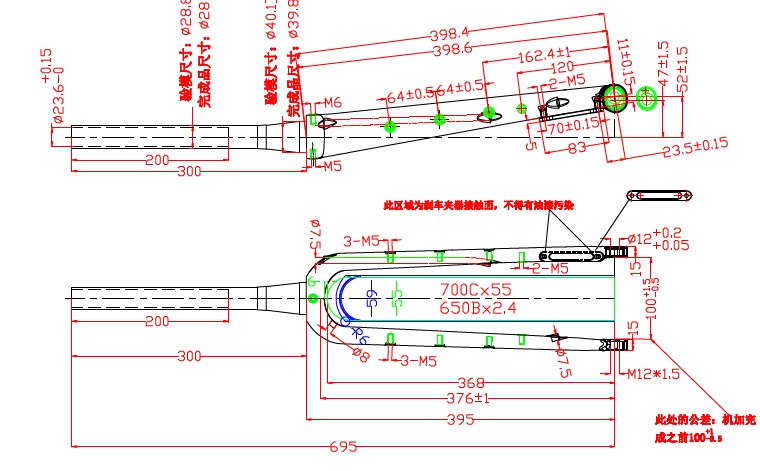

Specs

Type: Carbon Gravel & Adventure & Bikepacking Fork

Materials: Toray T700 Carbon

Finish: UD Matt Black

Steerer: 1 1/8" - 1 1/2"

Crown Width: 56mm

Rake: 47mm / 52mm (Adjustable)

Weight: 490g+/-15g (Carbon part) / 50g (Alloy drop-out part / mount bolts)

Thru Axle: 12x100mm

Axle to Crown: 398mm

Tire Clearance: 700 x 55c / 650b x 2.4"

Brake: Flat Mount Disc Brake

Max Rotor Size: 160mm

Light Mount: M6 Mount Front of Crown

Fender Mounts / Panniers Mounts / Triple Cage Mounts

Dynamo Cable Routing

Test: ISO 4210 (With a 15% increase in force)

Warranty: Two years


Cable Routing

Option 1: Standard internal cable routing.

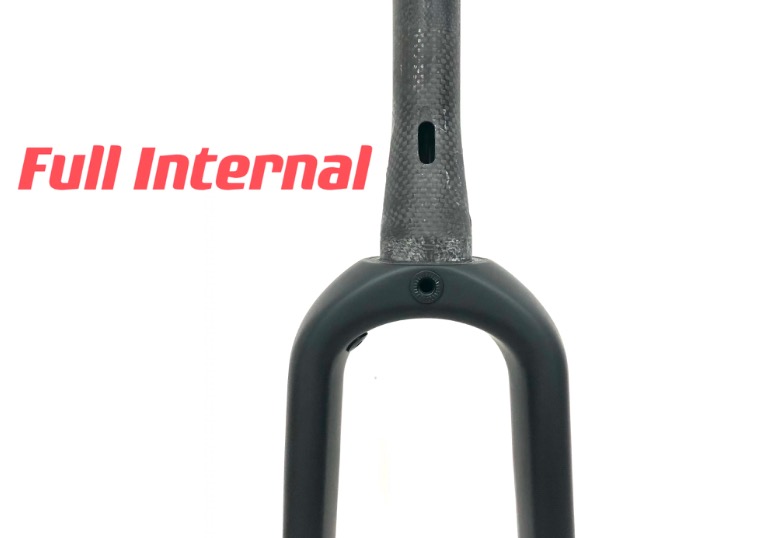

Option 2: Full internal cable routing to fit FSA ACR or SMR system.
