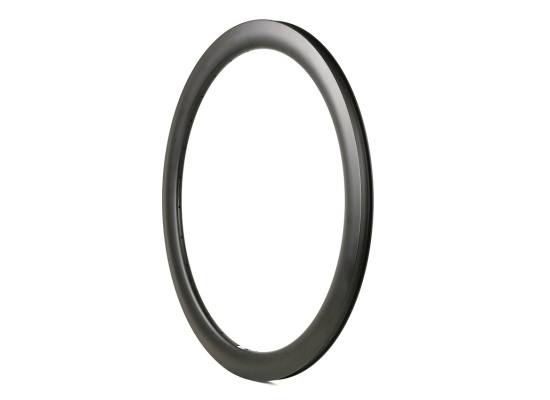

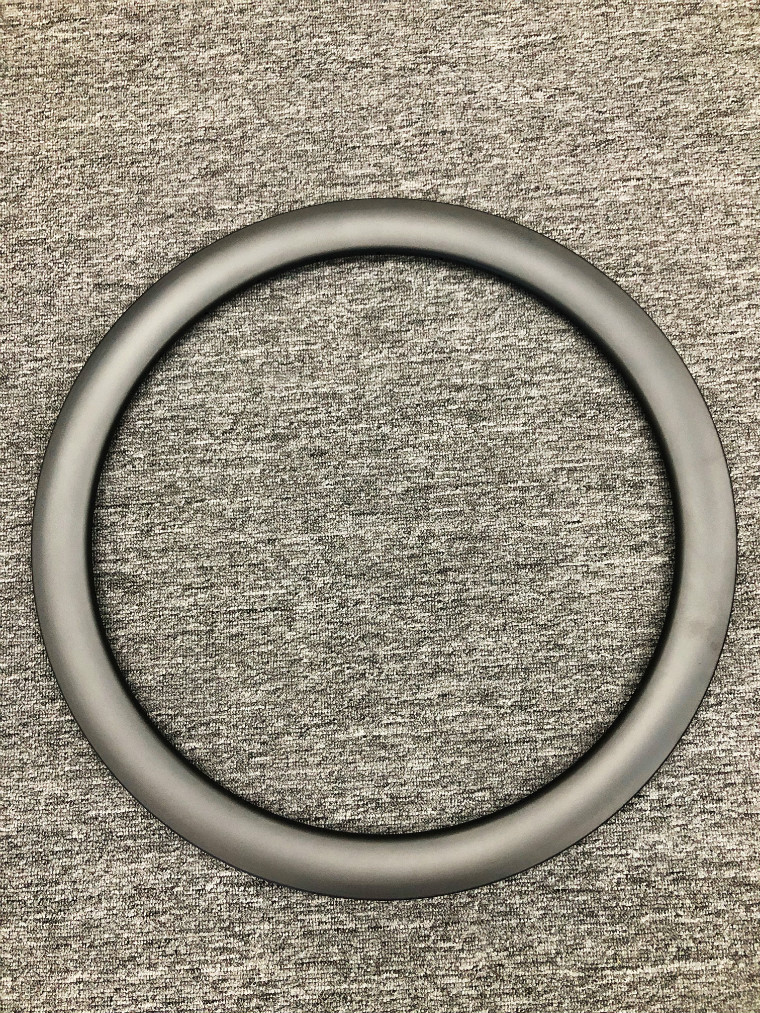

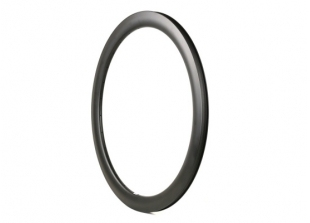

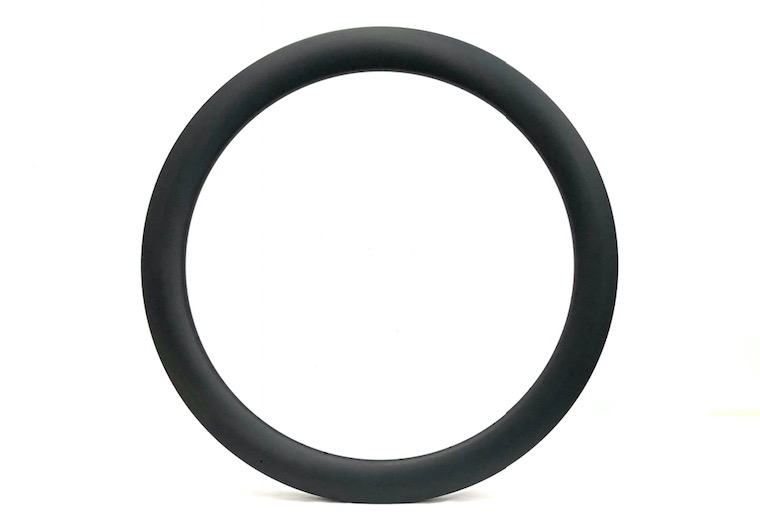

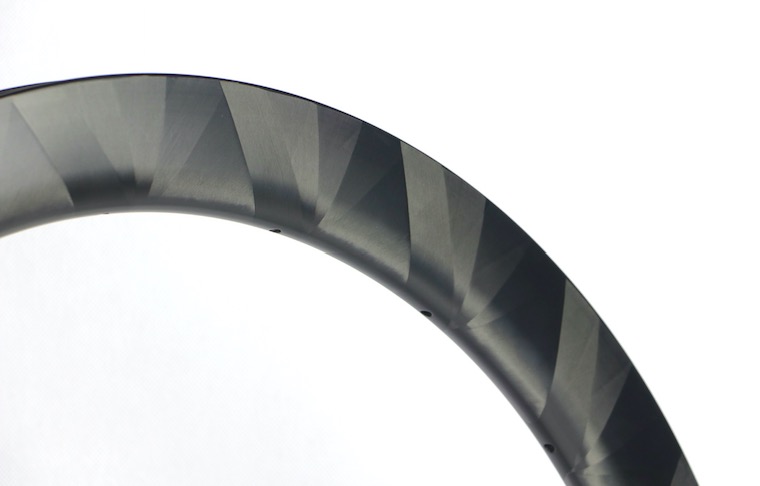

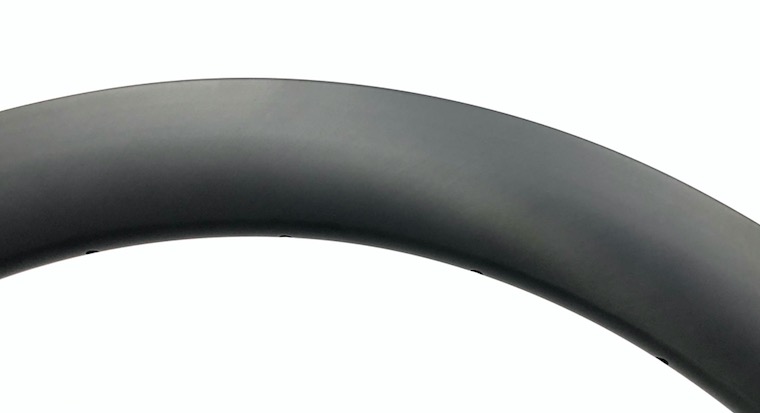

21mm Internal Wide Carbon Asym Road Disc Tubeless Clincher Rims

  • Item Num :
  • SC-28RD35AC / SC-28RD40AC / SC-28RD45AC / SC-28RD50AC / SC-28RD65AC / SC-28RD80AC
Product Details
Specs

Material: Toray T700 / T800

Size: 700C

Type: Without brake surface for disc brake only

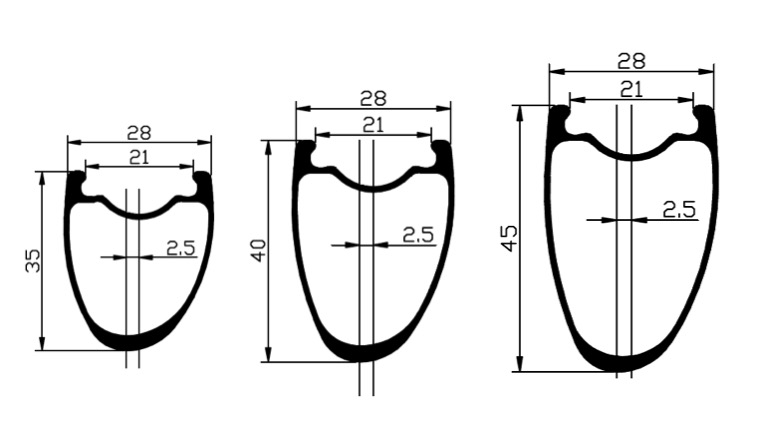

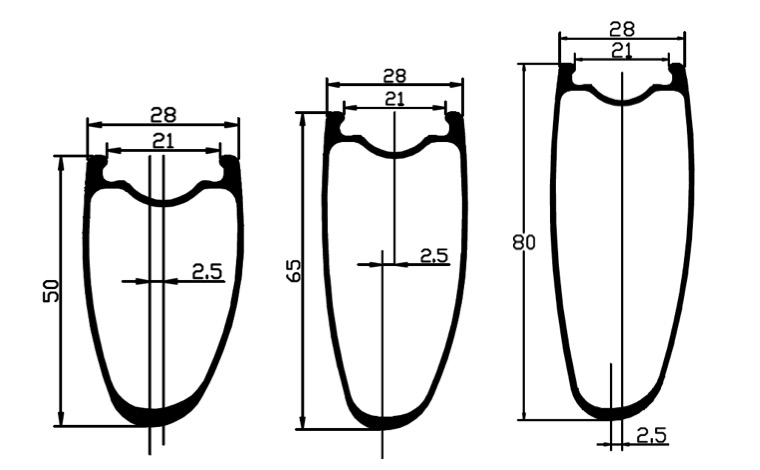

External Width: 28mm

Internal Width: 21mm

Depth: 35mm / 40mm / 45mm / 50mm / 65mm / 80mm

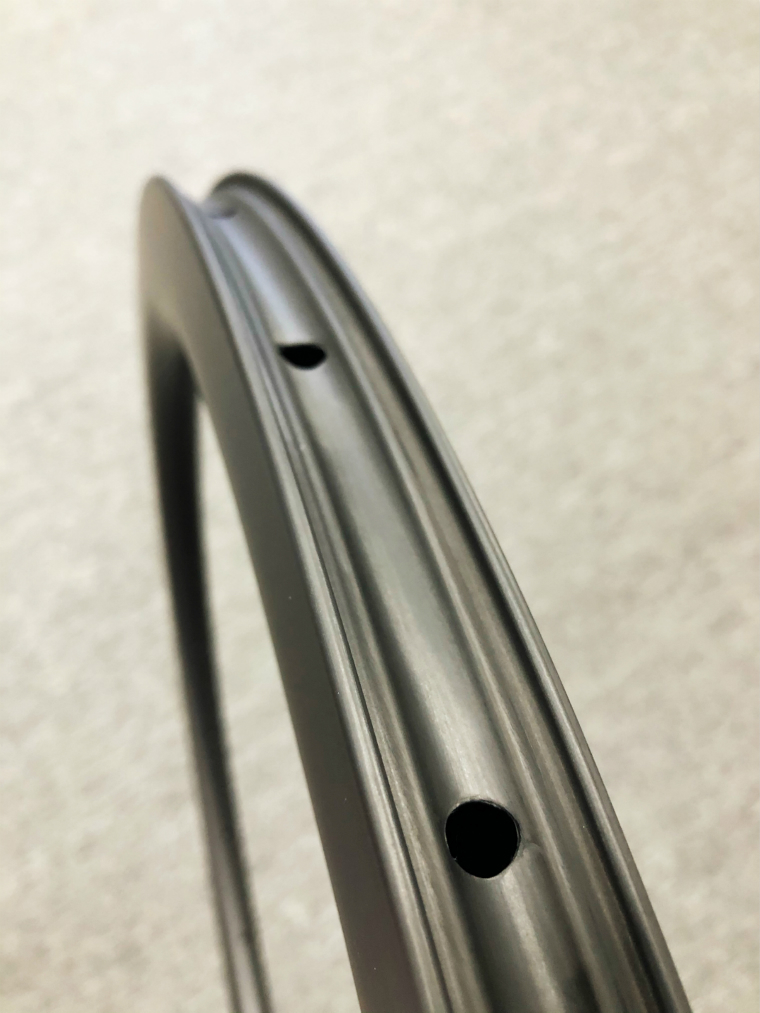

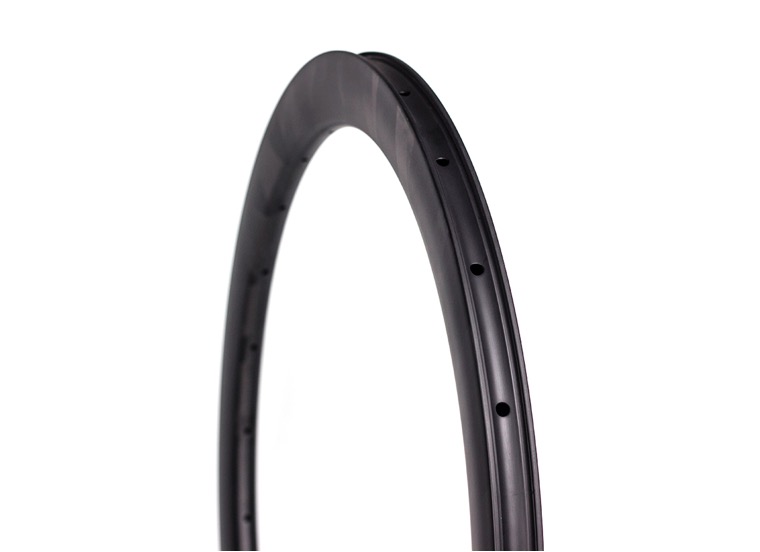

Offset: 2.5mm

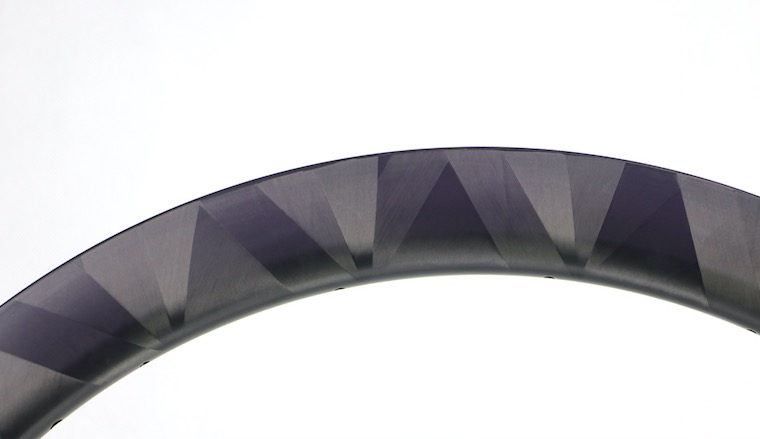

Weave: UD / 3K / 12K / Butterfly Pattern

Finish: Matte / Gloss / Non-Paint

Spoke count: 24H / 28H / 32H

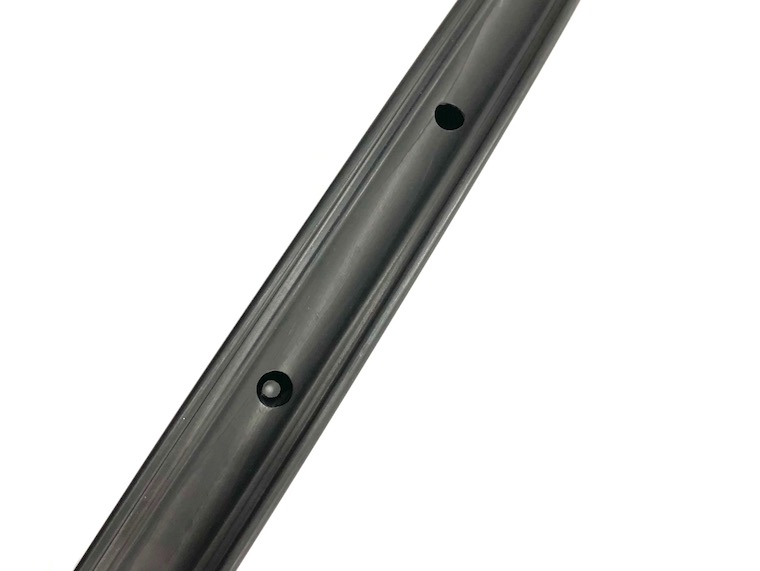

Nipple hole: External / Internal

Standard Weight: 410g (35mm) / 430g (40mm) / 450g (45mm) / 470g (50mm) / 550g (65mm) / 650g (80mm)

SL Weight: 370g (35mm) / 390g (40mm) / 410g (45mm) / 430g (50mm) / 510g (65mm) / 610g (80mm)

Rider weight limit: 120KG

Max tire pressure: 125PSI

Max spoke tension: 140KGF

Flatness: ≤0.2mm

Roundness: ≤0.3mm



Highlights

2.5mm offset helps even out the spoke tension for a more balanced wheel.

With a nice aero profile and rim shape designed to help crosswind stability.

Precise layup design with super smooth 3k inside wall results a light weight rim.
