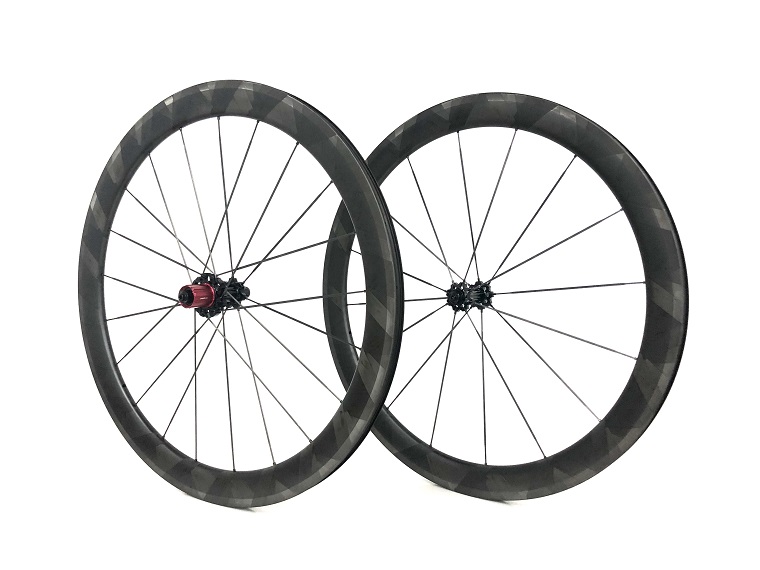

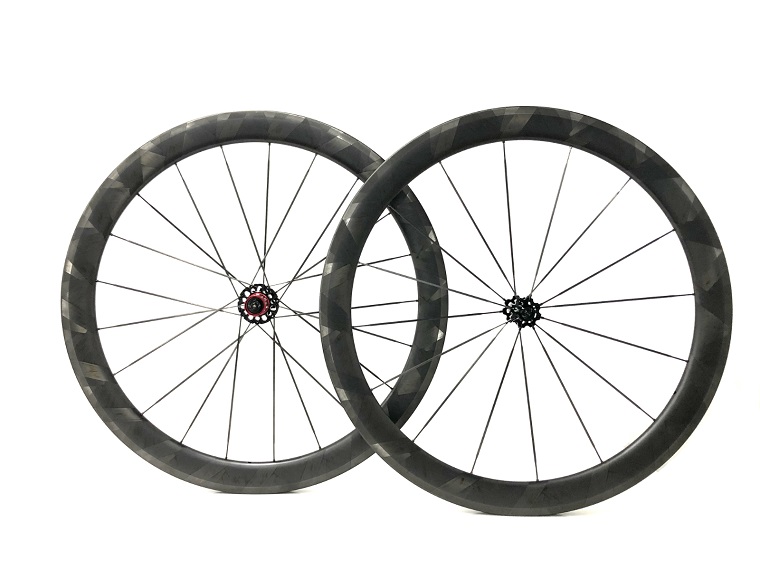

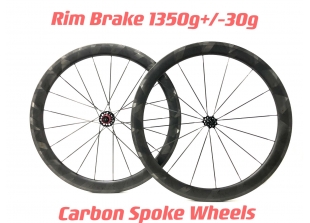

28mm Wide 45mm Super Light Pattern Carbon Spoke Road Tubeless Clincher Wheelset (SC-28WH45TL-CSW)

  • Item Num :
  • SC-28WH45TL-CSW
Product Details

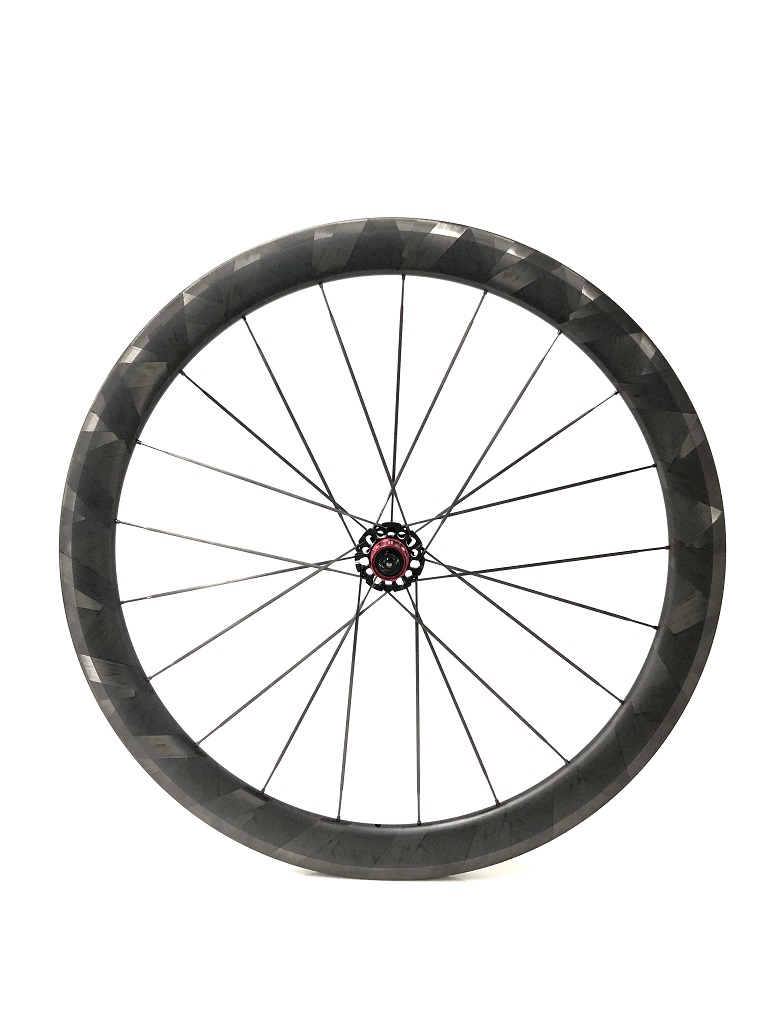

The Speeder carbon spoked wheelset features a totally new patented process for attaching carbon aero spokes, that along with a super light pattern filament wound carbon rim make this an exciting new super light all-carbon wheelset.

Rims: Filament winding offers precise and repeatable carbon construction, without the variability associated with hand layup, it results in a more consistent layup that allows a low proportion of resin to be used, reducing weight for the same strength.

Spokes: The carbon spokes provide both higher stiffness and better fatigue life in comparison to traditional steel spokes, also, it weighs 3.2g per only including nipple, which is 1.35g lighter than Sapim CX-Ray.

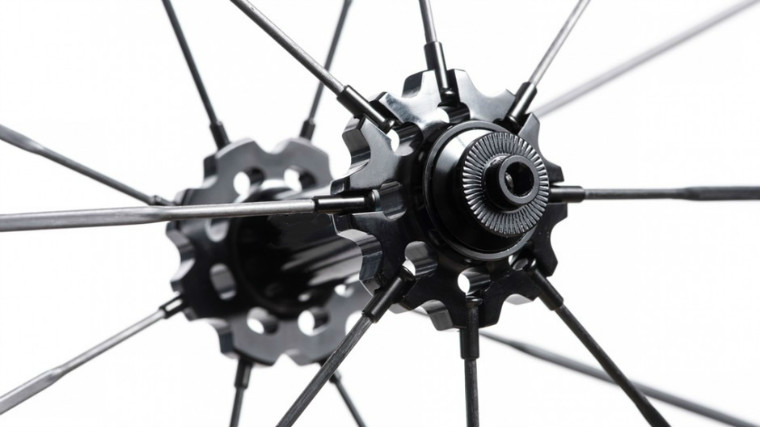

Hubs: Purpose-designed straight pull road hubs to match carbon spokes, with lower drag and loss-free power transmission.


Material: Toray T700

Size: 700C

External Width: 28mm

Internal Width: 21mm

Depth: 45mm

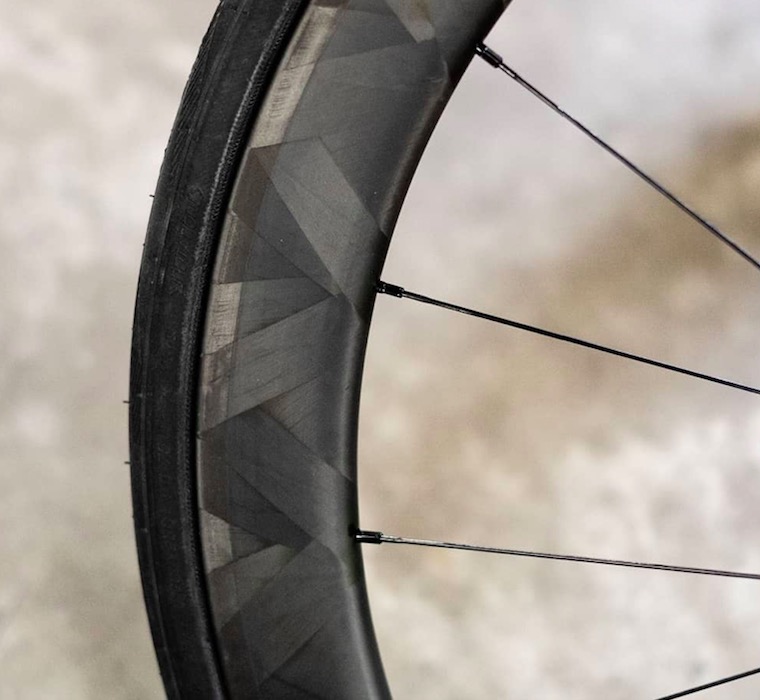

Weave: Unique pattern surface

Finish: Matt / Glossy (Customized with your logos)

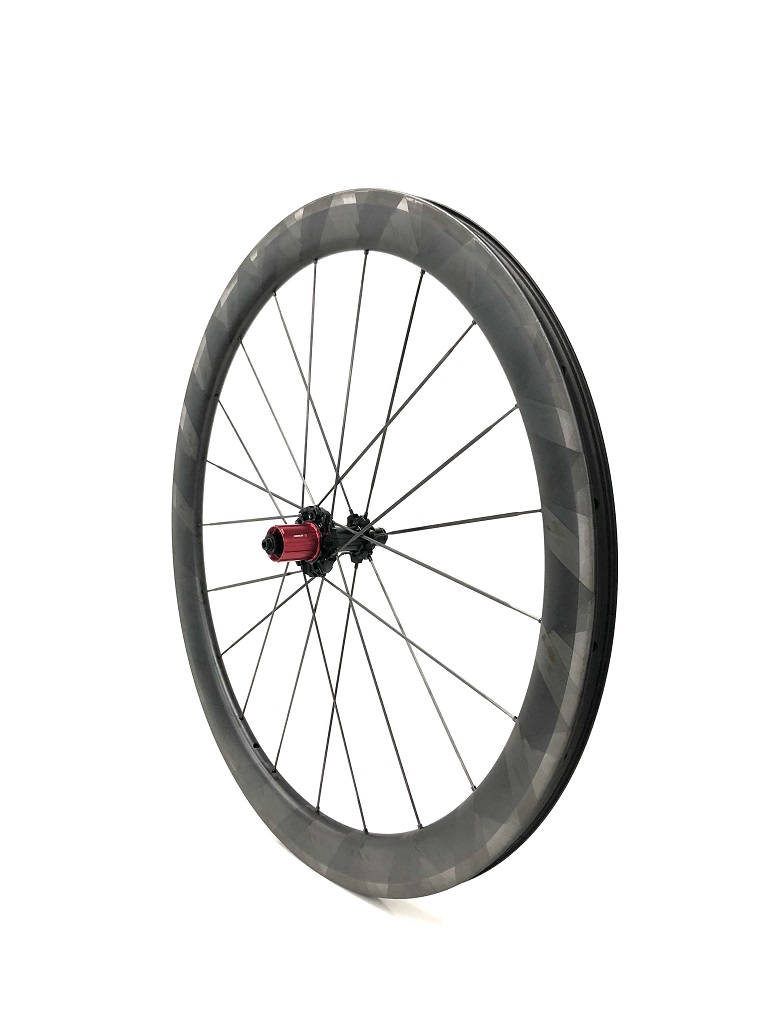

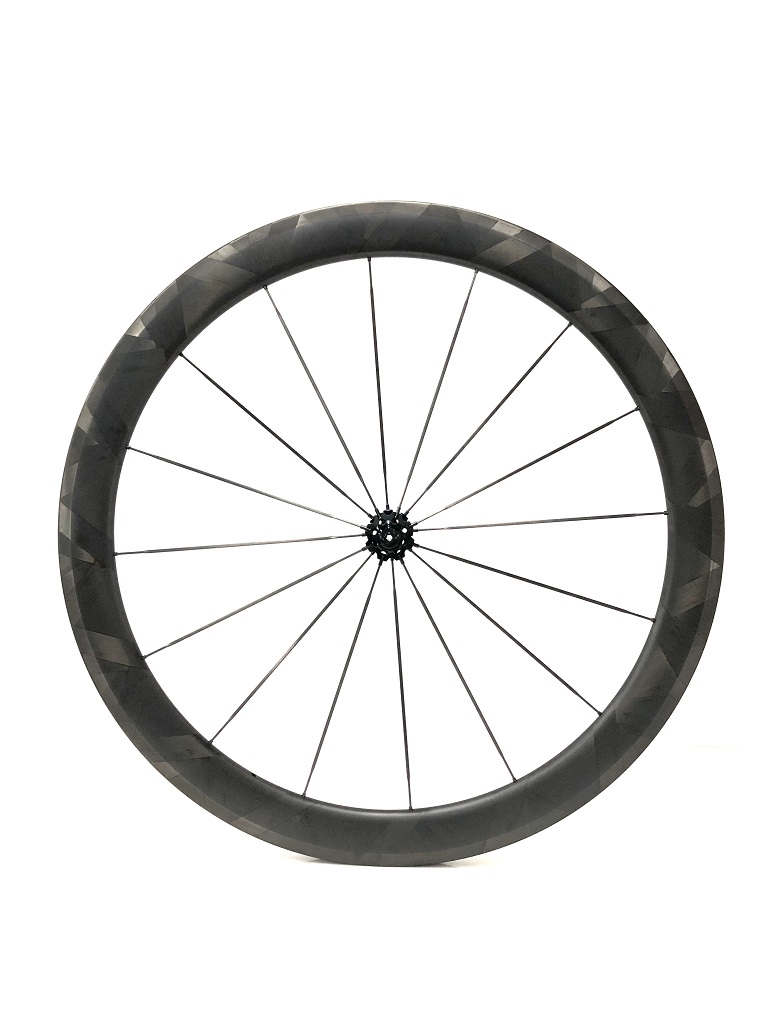

Spoke count: Front 16H, Rear 21H 2:1

Hubs: Speeder Road, Shimano 11s or SRAM XDR, Japanese EZO bearings

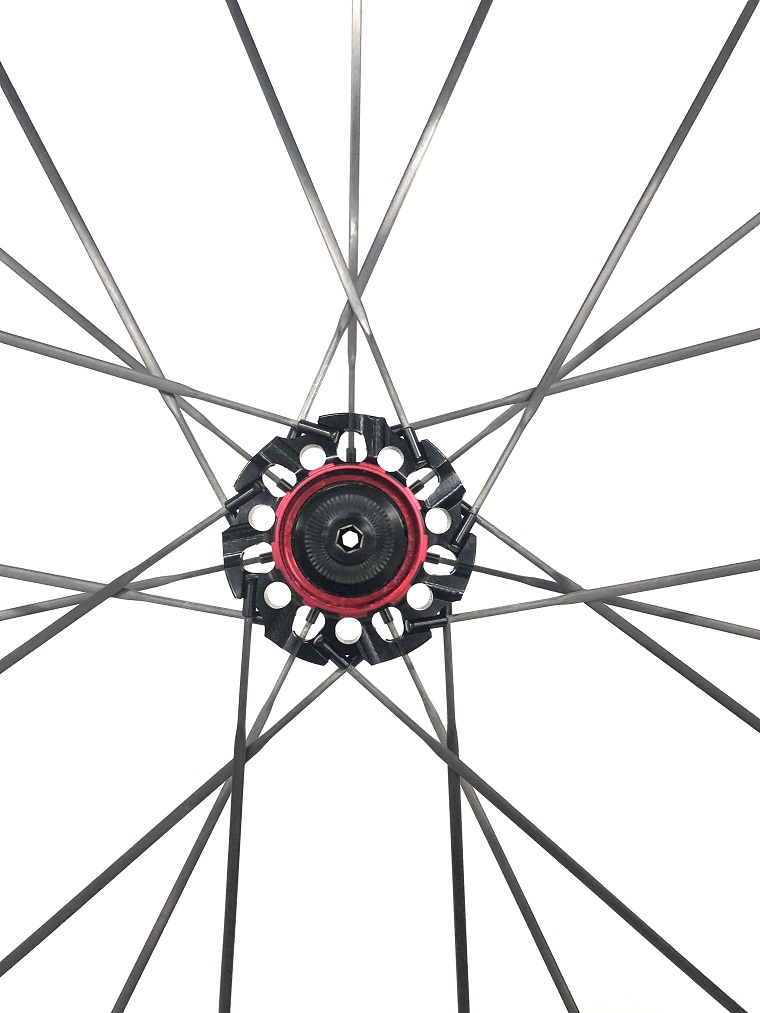

Spokes: Carbon ultra light aero spokes (3g)

Incl: Spare spokes / brake pads / skewers / rim strips

Weight: 1340g+/-30g

Rider weight limit: 120KG

Max tire pressure: 125PSI

Max spoke tension: 140KGF

Flatness: ≤0.2mm

Roundness: ≤0.3mm



-- Patented filament winding process to ensure that each carbon fiber layer can be distributed evenly and bonded tightly, enabling its strength to reach a maximum value. Also machine managed process can avoid the random layup errors and result higher accuracy & precision.

-- The rim bed is wound layer by layer in carbon fiber over a mandrel in a computer controlled process, this enables precise fiber orientation, continuous fiber paths, and higher fiber to resin ratios, resulting a more durable rim.

-- Carbon fiber pre-preg weaving in house, impregnating with own HTG resin system. The resin is tested and approved by DMA / DSC.

-- X-Ray machine applied to inspect the inside layup structure to guarantee the strength for every area.

-- Computational fluid dynamics applied to design the rim profiles to optimize the aerodynamics, enabling the rims to run faster at every yaw angle.

-- Much higher test standard in house than official UCI / ISO; Wind tunnel test in Arizona USA.
