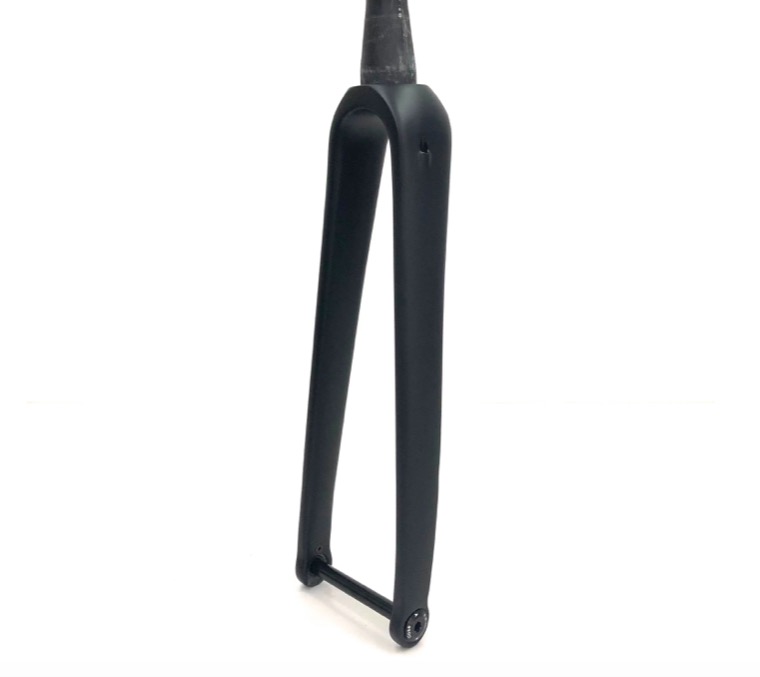

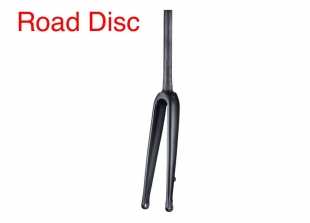

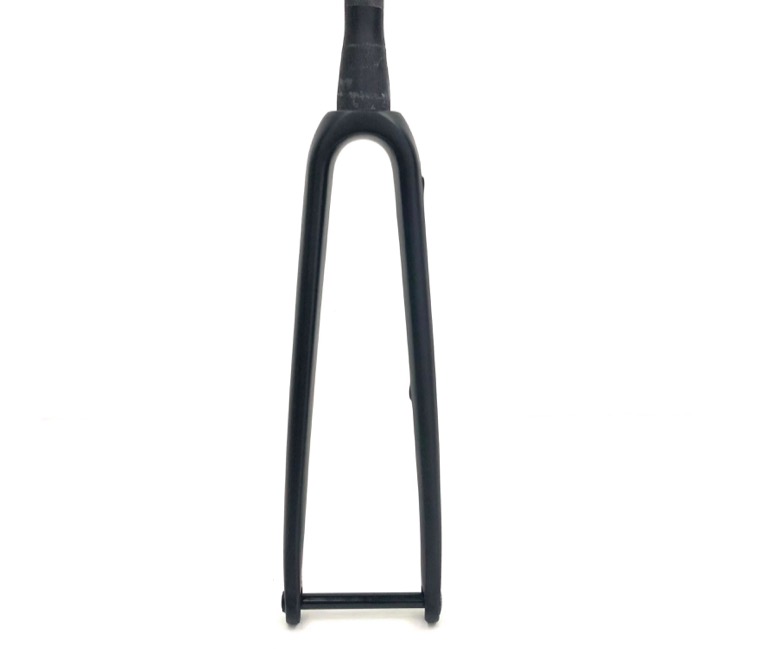

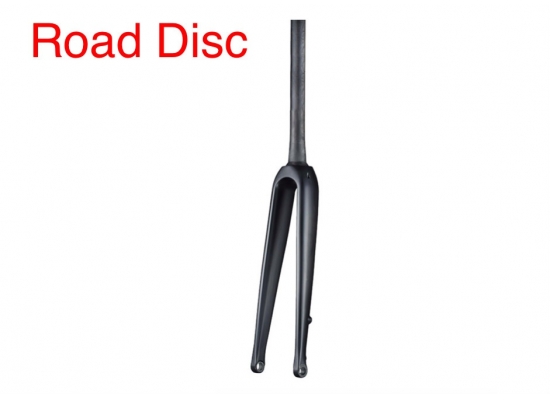

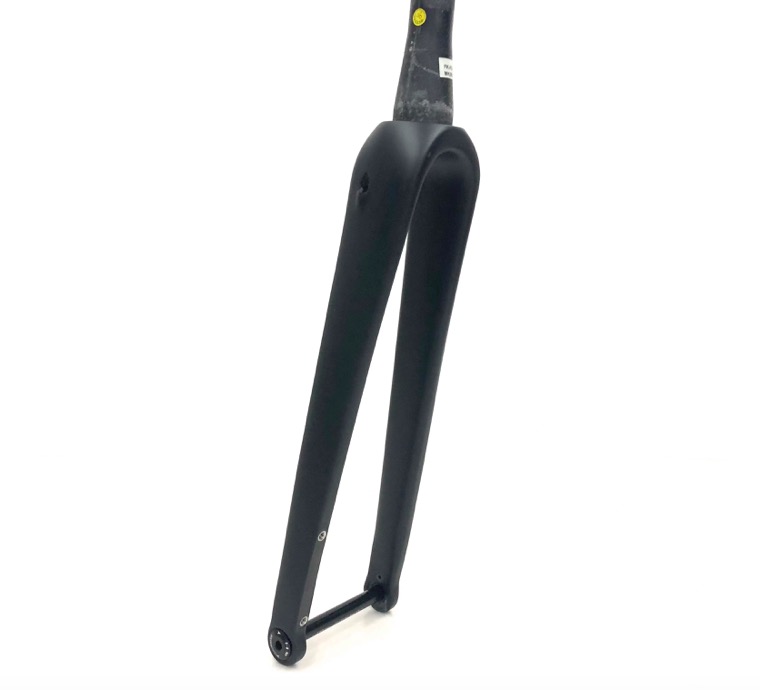

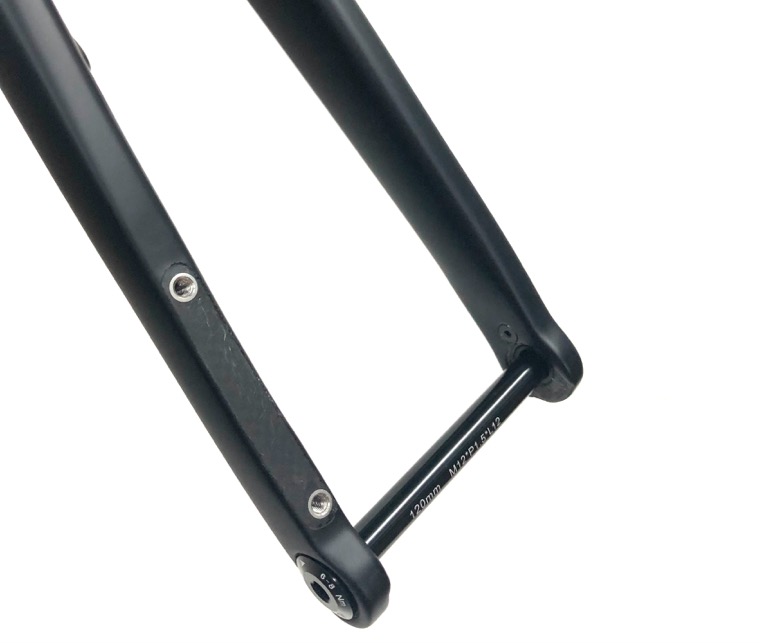

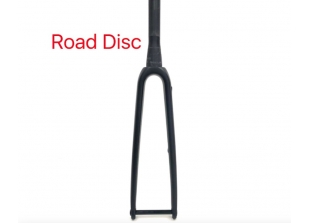

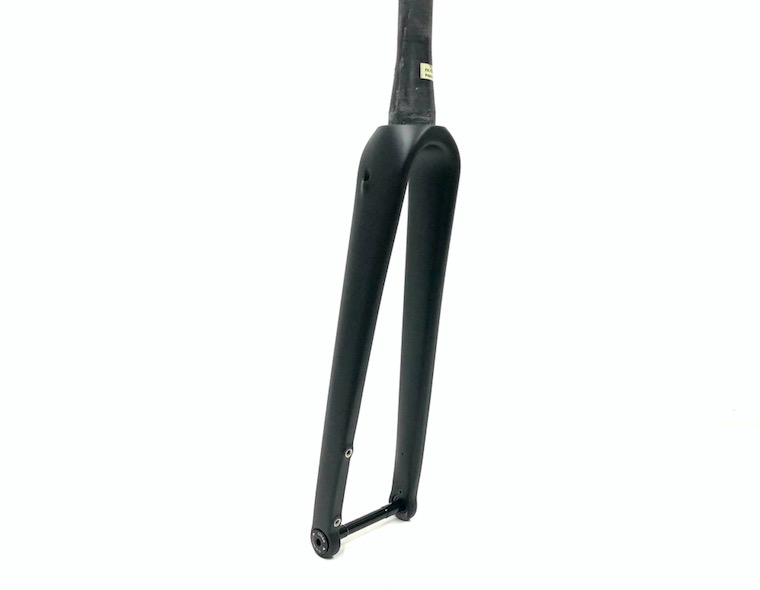

Carbon Road Disc Fork (SC-RDF04)

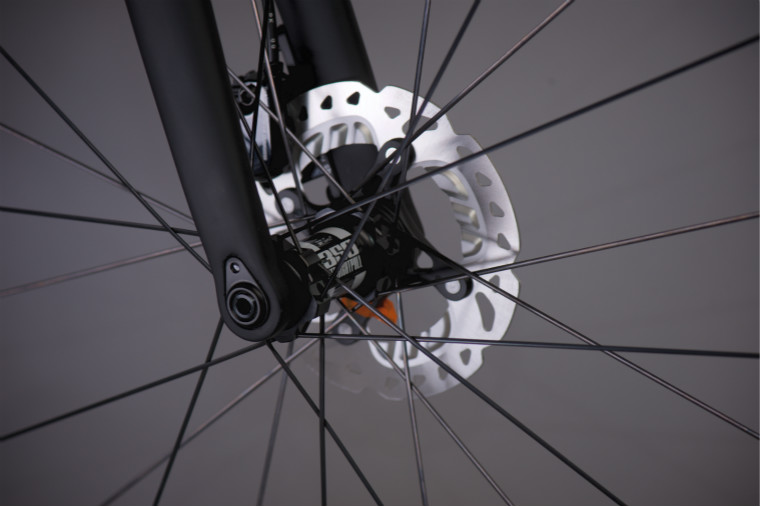

Our latest road disc fork features a modern 32mm of tire clearance, a low axle to crown height of 370mm, internal cable routing, and a light weight one-piece from drop-out to steerer construction developed specifically to handle the demands of disc brakes, rough roads and large volume tires.

Specs

Type: Road Disc Brake

Materials: Toray T700 Carbon

Finish: UD Matt Black

Steerer: 1 1/8" - 1 1/2"

Crown width: 56mm

Rake: 43mm

Weight: 420g+/-15g

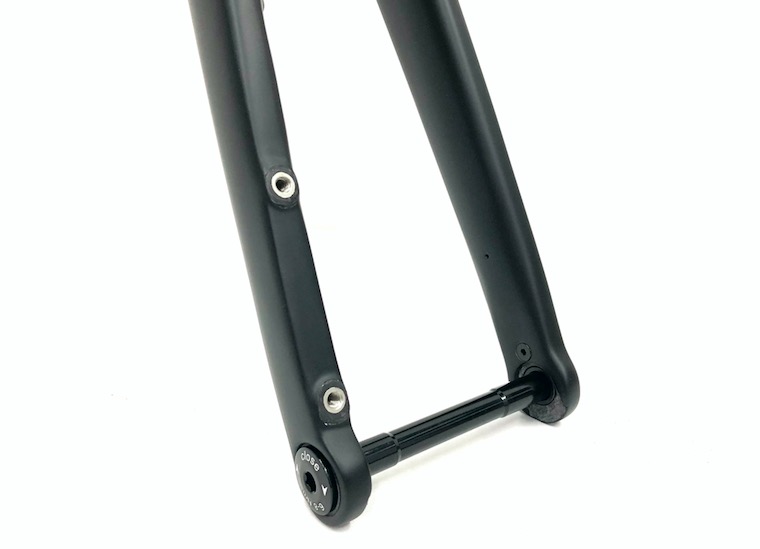

Thru Axle: 12x100mm

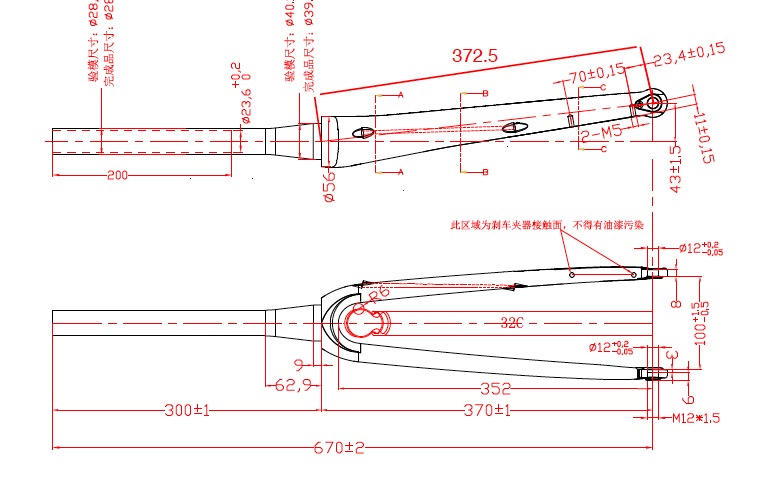

Axle to Crown: 372.5mm

Max Tire: 32C

Max rotor size: 140mm - 160mm

Brake: Flat Mount Disc Brake

Test: ISO 4210 (With a 15% increase in force)

Warranty: Two years

Cable Routing

Option 1: Regular cable routing

Option 2: Fully integrated cable routing
