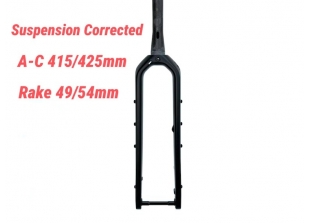

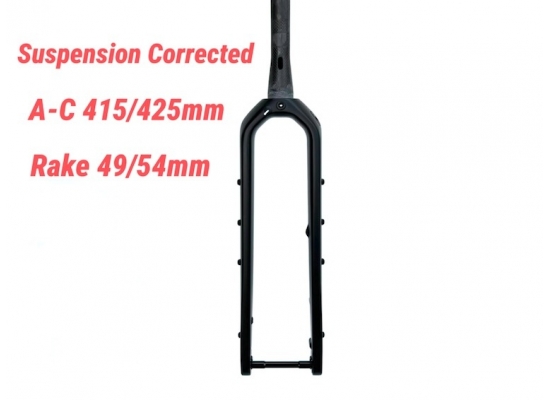

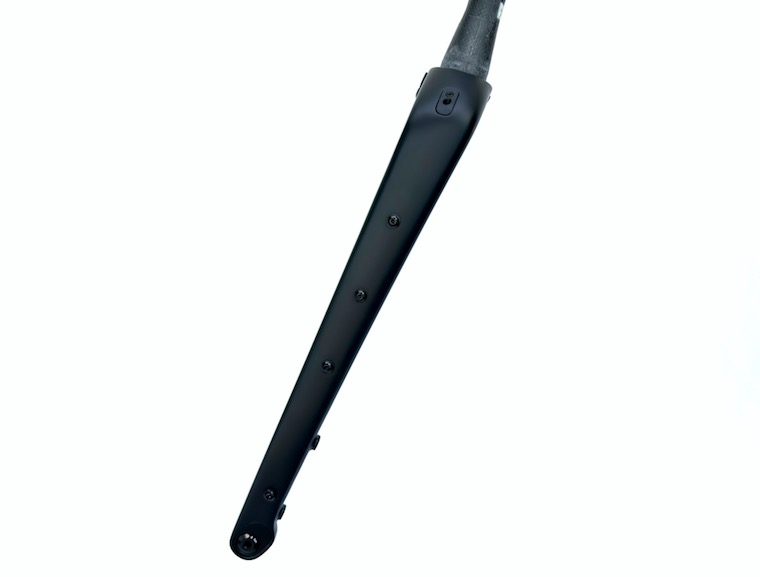

Carbon Suspension Corrected Gravel Fork (SC-MGV30)

Highlights

- Longer axle to crown 415/425mm for suspension corrected.

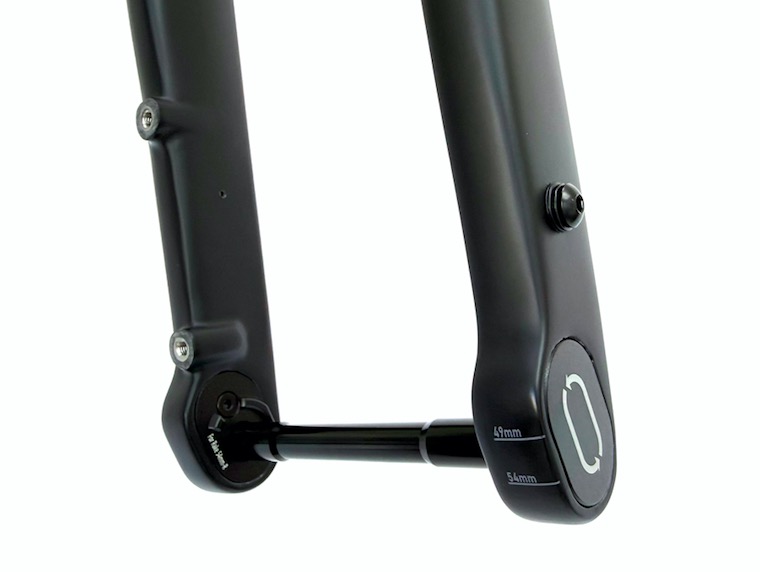

- Diagonal flip-chips for adjustable rake between 49mm and 54mm.

- Super wide tire clearance for up to 700 x 60c allows a great choice of tires.

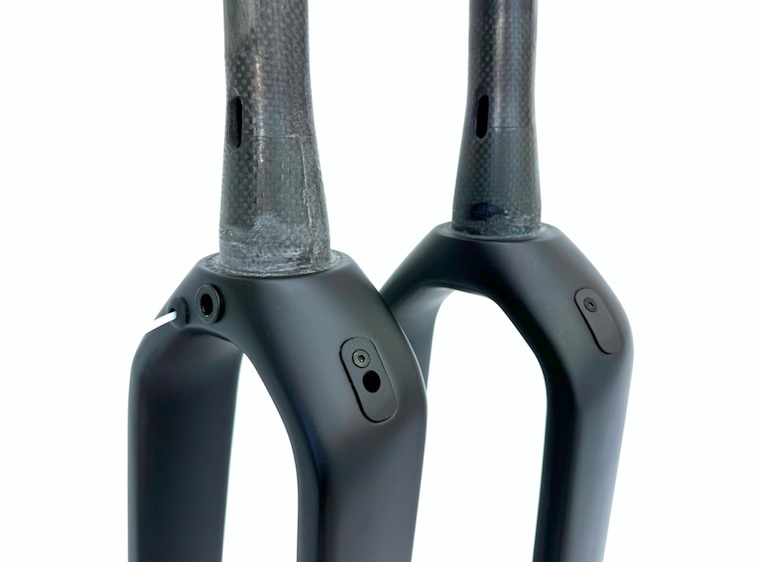

- Both regular and fully integrated cable routing compatible in one fork by changing the cable port.

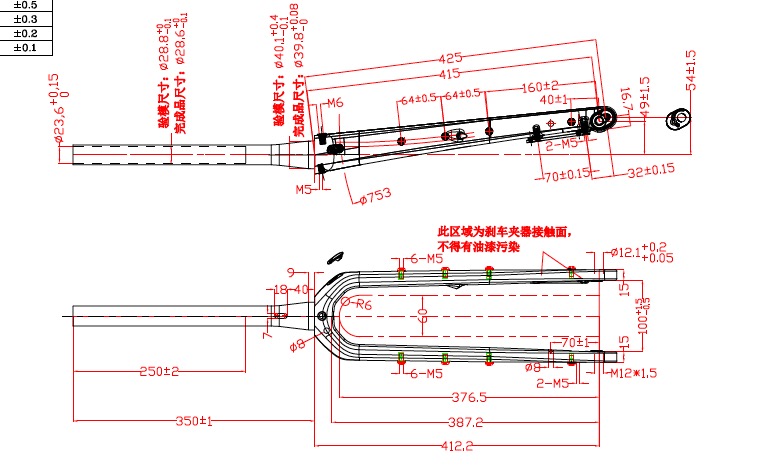

Specs

Type: Carbon Suspension Corrected Gravel Fork

Materials: Toray T700 Carbon Fiber

Finish: UD Matte Black

Steerer: 1 1/8" - 1 1/2"

Steerer Tube Length: 350mm

Crown Width: 56mm

Axle to Crown: 415/425mm

Rake: 49/54mm (Diagonal Flip-Chip)

Tire Clearance: 700 x 60c

Disc Rotor Size: 160/180mm

Weight: 525g+/-15g (Race Version)  545g+/-15g (Wild Version with 8 bolts)

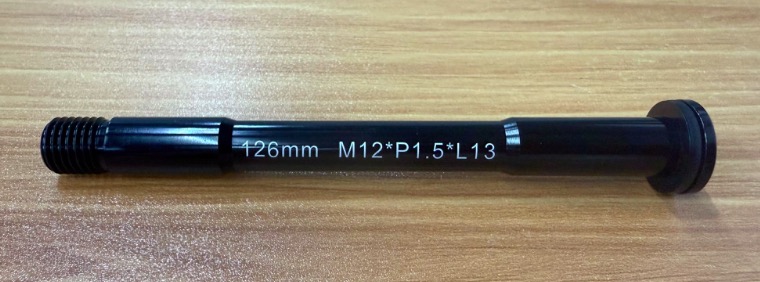

Thru Axle: 12x100mm

Brake: Flat Mount Disc Brake

Cable Routing: Regular And Fully Integrated (By changing the cable port)

Test: ISO 4210 (With a 15% increase in force)

Warranty: Two years

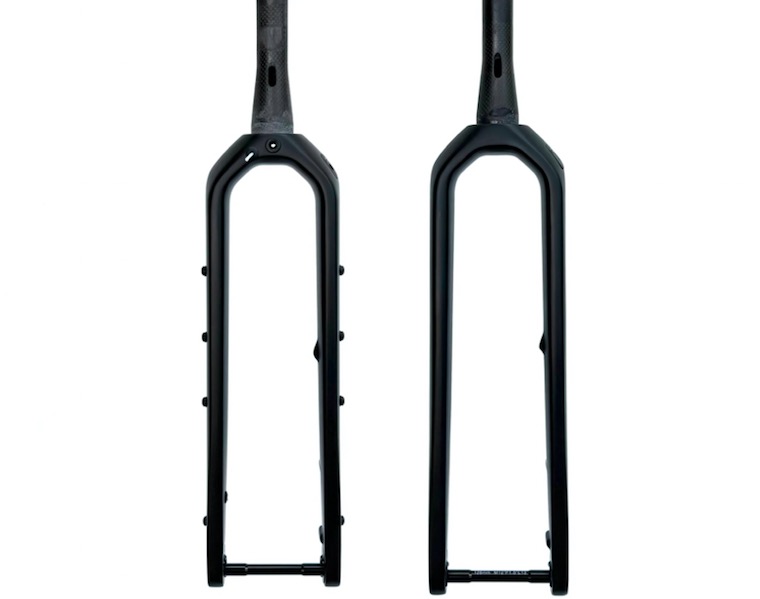

Version

Race: With no eyelets

Wild: With fender mounts / triple cage mounts / dynamo cable routing holes
