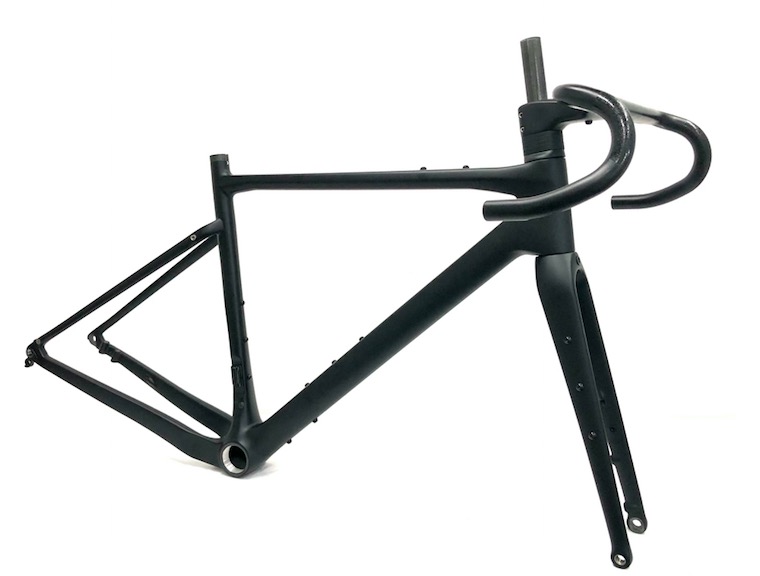

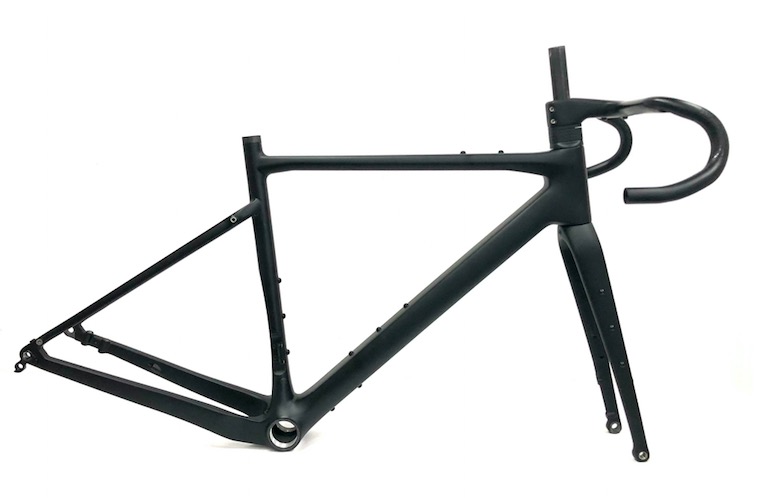

Carbon Integrated Gravel Frameset (SC-G54D)

  • Item Num :
  • SC-G54D
Product Details

Specs

Material: Toray M40J T700 / T800

Type: Gravel

Appearance: UD Marble

Finish: Gloss / Matt (can offer custom painting)

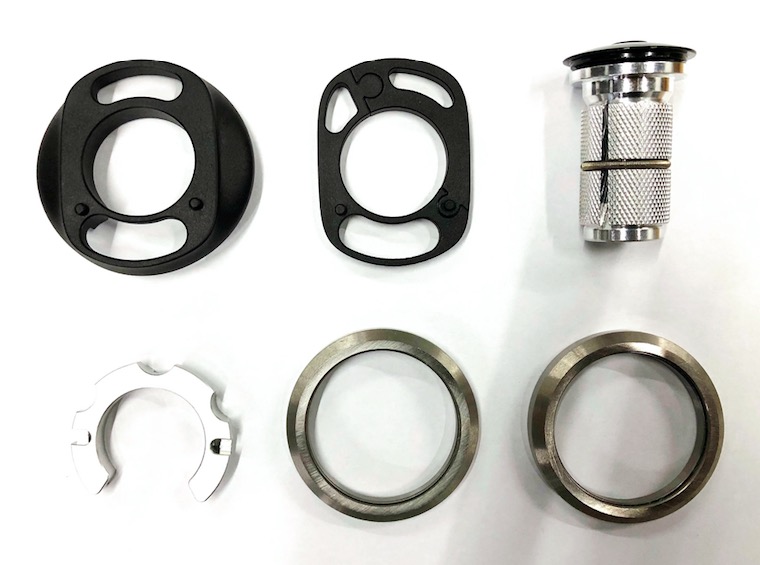

Headset: 1 1/2"

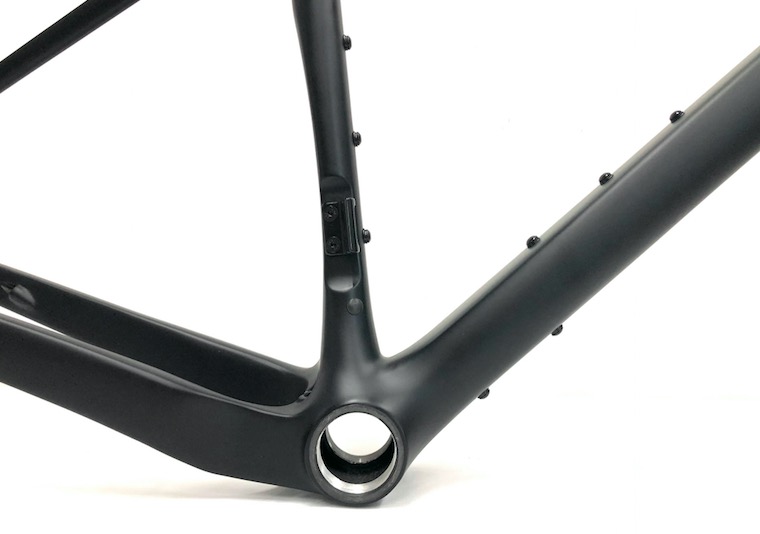

BB: T47*85.5

Weight: 1090g+/-35g (51cm) - With all the aluminum parts / bolts installed

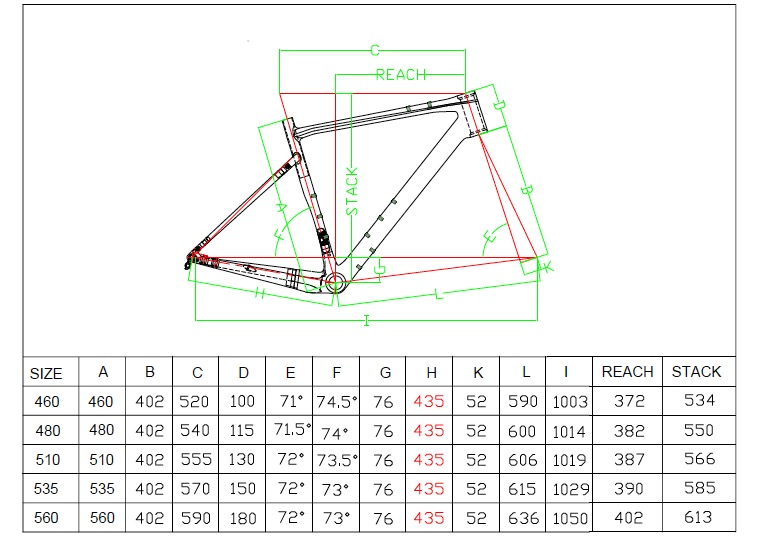

Frame Size: 46cm / 48cm / 51cm / 53.5cm / 56cm

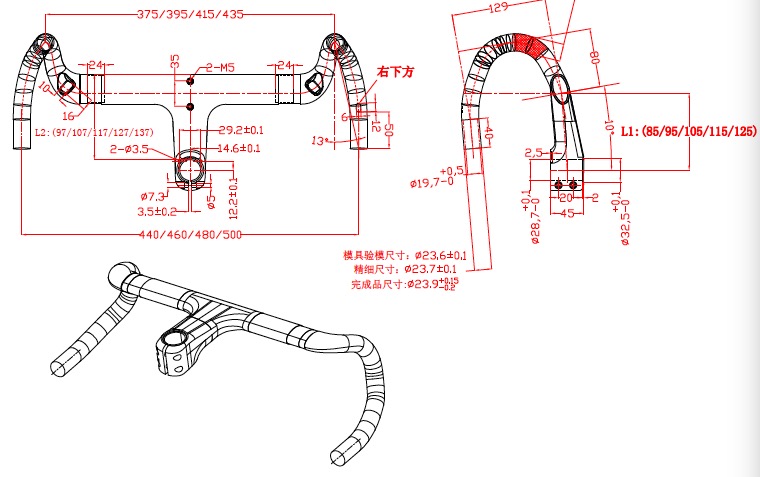

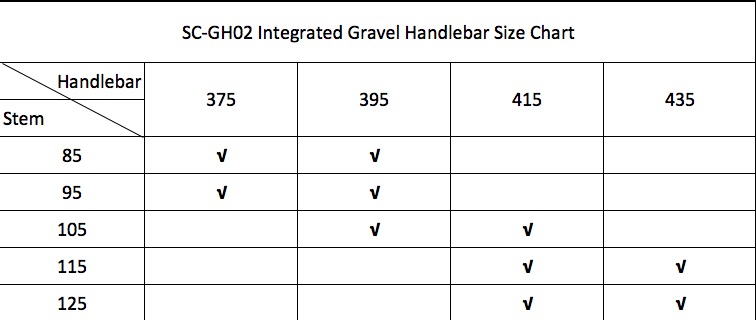

Handlebar Size: 375mm / 395mm / 415mm / 435mm (C to C in hoods)

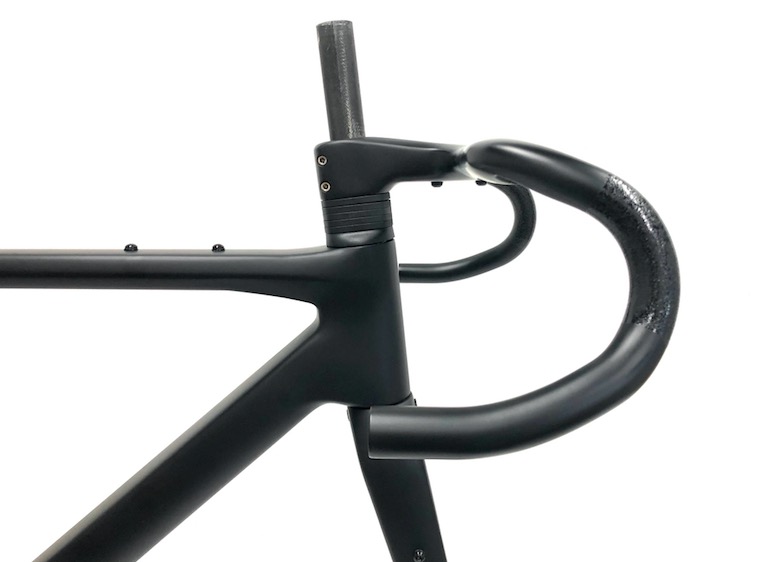

Stem Size: 85mm / 95mm / 105mm / 115mm / 125mm

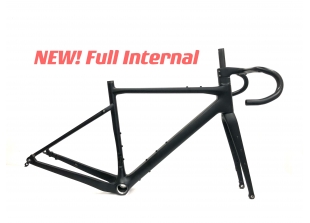

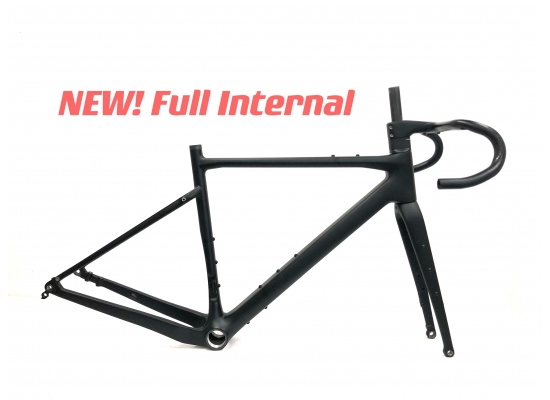

Cable Routing: Full Internal

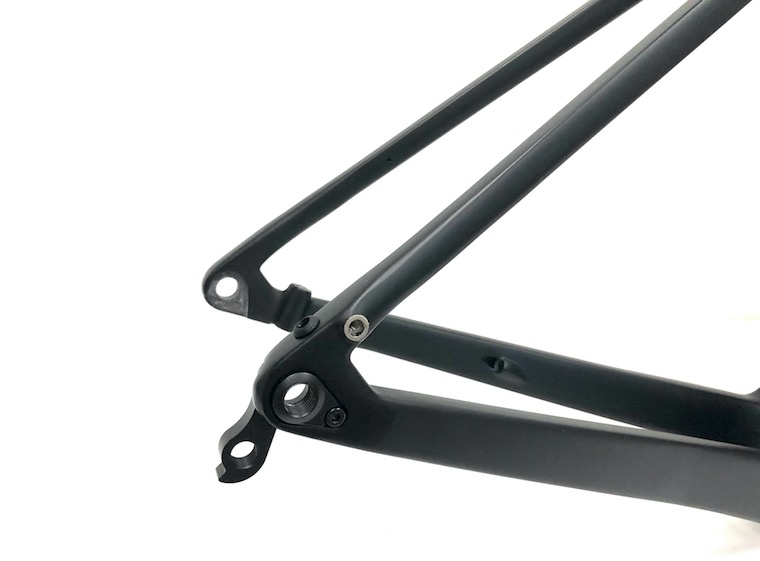

Hanger Syetem: UDH

Di2 Compatible: Yes

Disc Mount: Flat Mount

Rack Mounts: Yes

Tire: 700 x 40c

TA: 12x100mm / 12x142mm

Test: ISO 4210

Warranty: Two Years


Version

Race

425mm chain stay

no rack mounts on the rear triangle

no triple cage mounts on the fork

no extra bottle cage mounts on the top of top tube and bottom of down tube


Adventure

435mm chain stay

with rack mounts on the rear triangle

with triple cage mounts on the fork

with extra bottle cage mounts on the top of top tube and bottom of down tube
