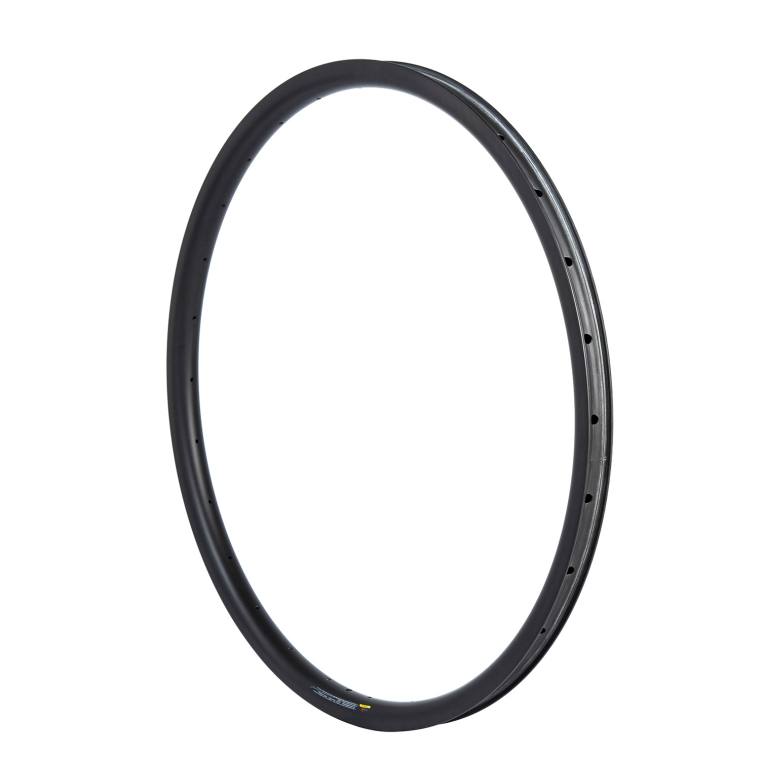

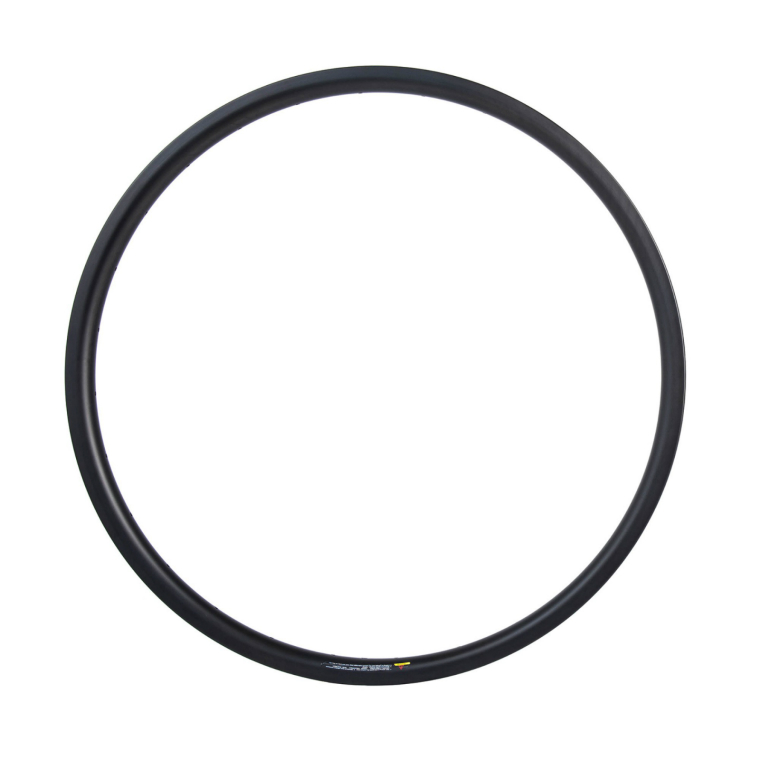

Carbon 27.5er MTB Asymmetric Hookless Rims

  • Item Num :
  • SC-30M24A275 / SC-35M25A275 / SC-40M25A275
Product Details


Material: Toray T700

Size: 27.5er / 650B

Type: Asymmetric Hookless

Weave: UD / 3K / 12K

Finish: Matt / Glossy

Spoke Count: 16-32H

Nipple Hole: External / Internal

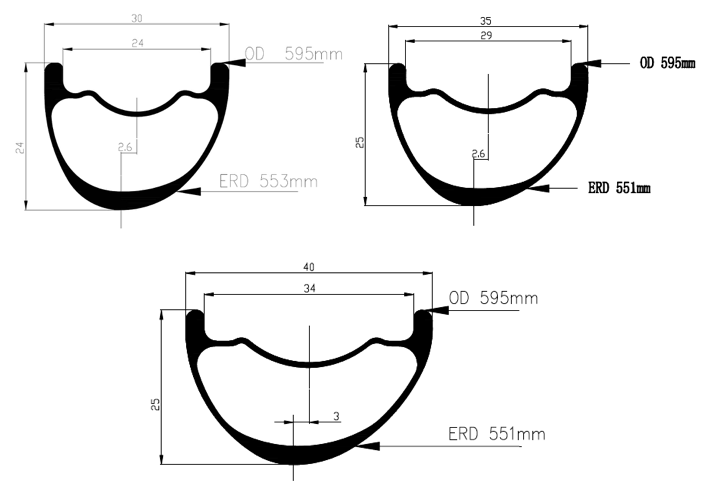

Outer Width: 30mm / 35mm / 40mm

Inner Width: 24mm / 29mm / 34mm

Depth: 24mm / 25mm

Hookless Sidewall: 3mm

Offset: 2.6mm / 3mm

Weight for 24mm internal wide: 340g+/-15g (XC)    360g+/-15g (AM)

Weight for 29mm internal wide: 380g+/-15g (AM)   430g+/-15g (DH)

Weight for 34mm internal wide: 410g+/-15g (AM)   460g+/-15g (DH)

Flatness: ≤0.2mm

Roundness: ≤0.3mm

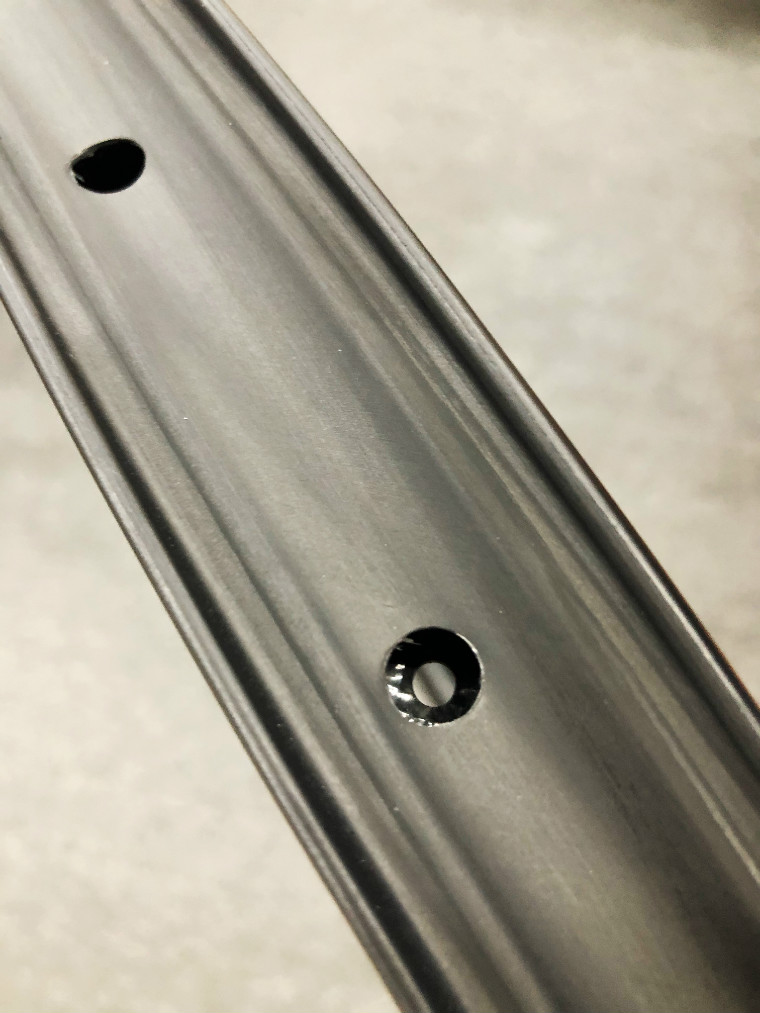

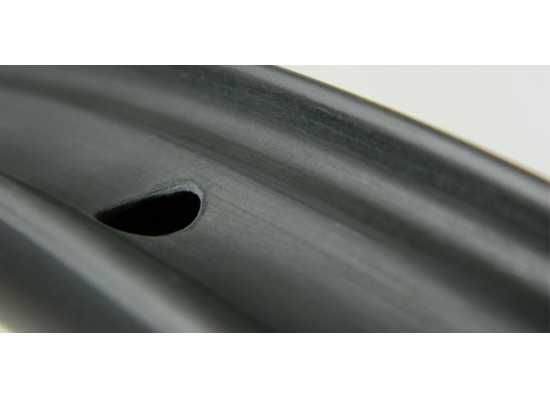

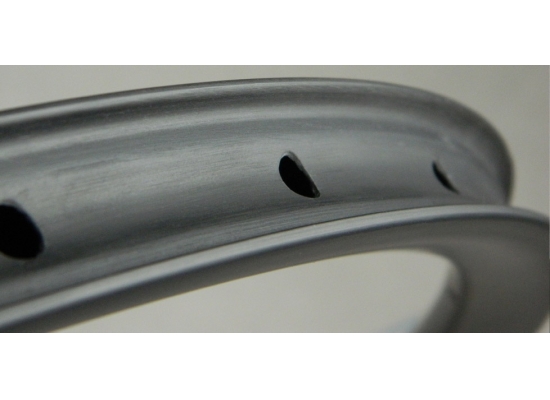

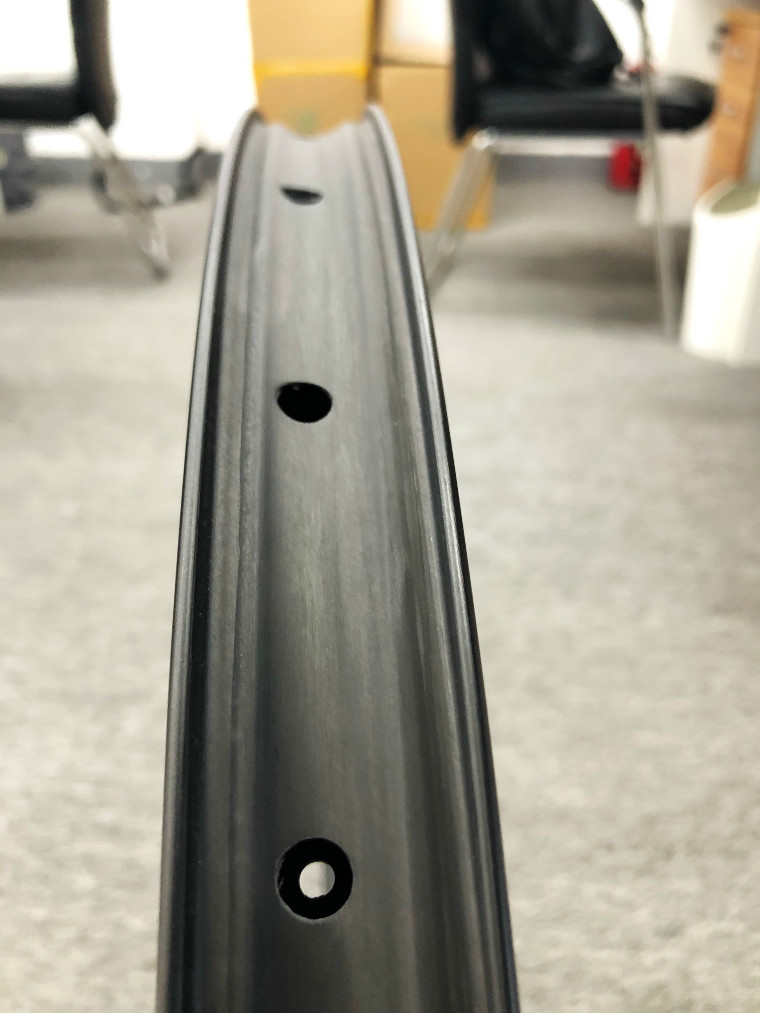

Super smooth 3k inside wall without excess resin.

Carbon fiber wrapped over to the bead area to provide the best impact resistance

Precise layup design results a light weight rim.

Lab impact test to guarantee the best strength.

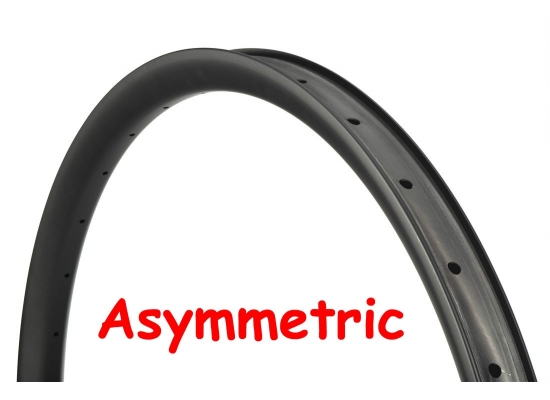

Asymmetric design for better balance and stiffness.
