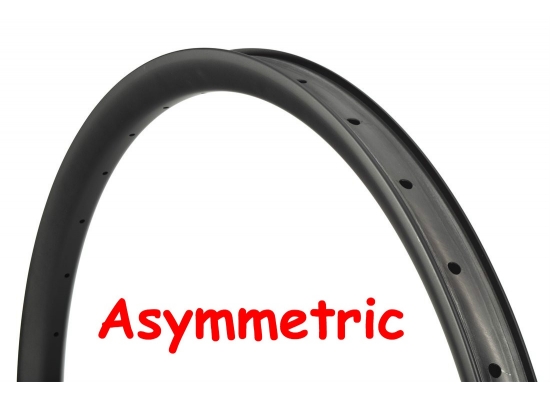

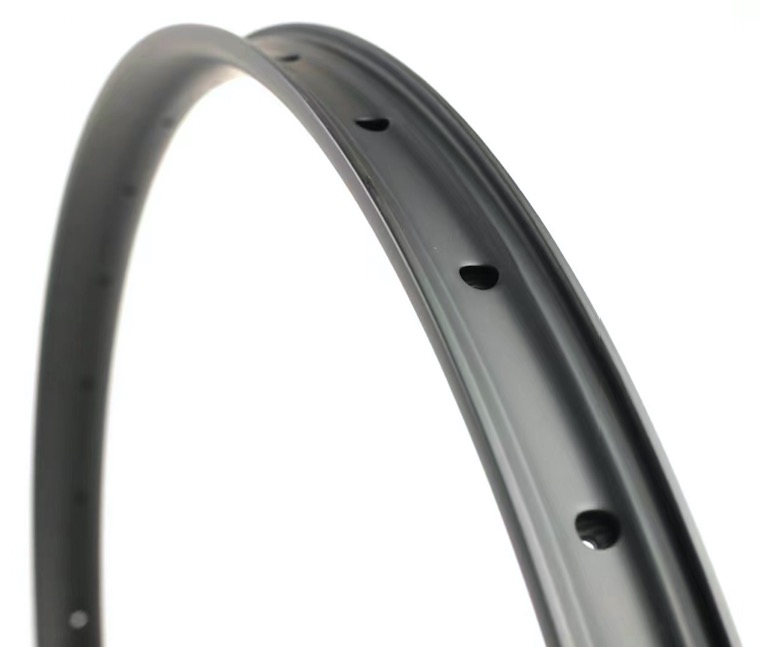

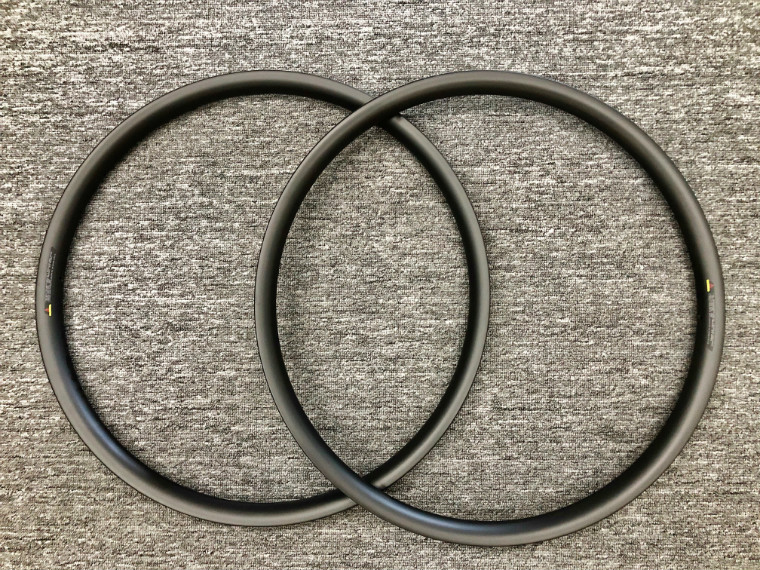

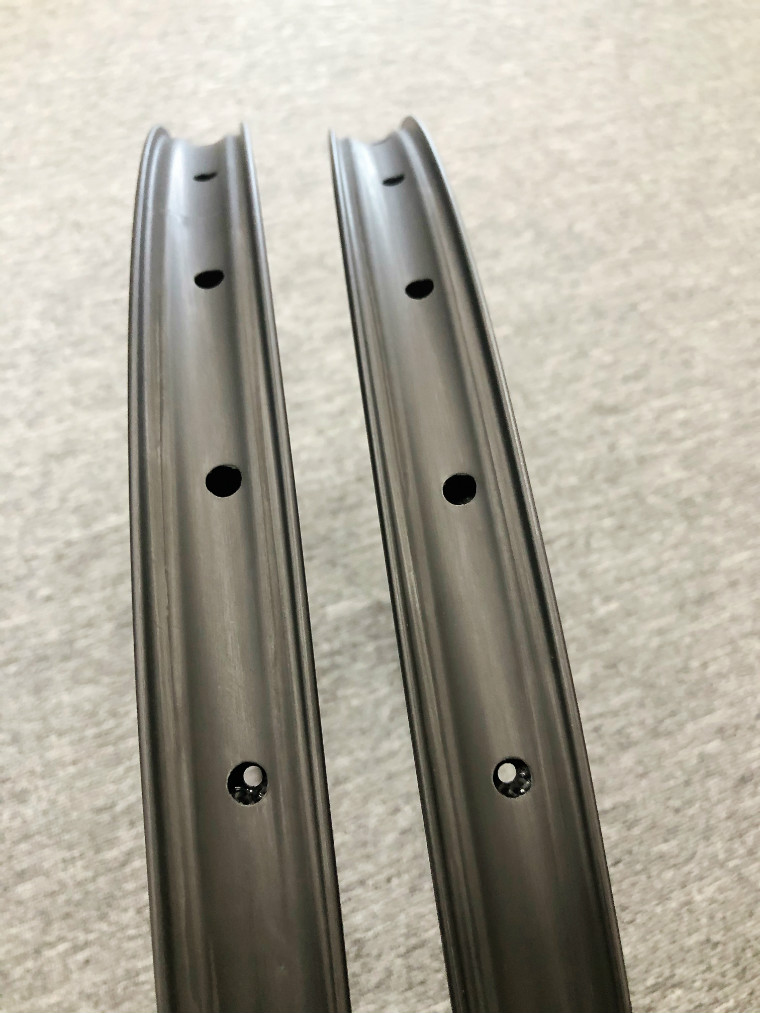

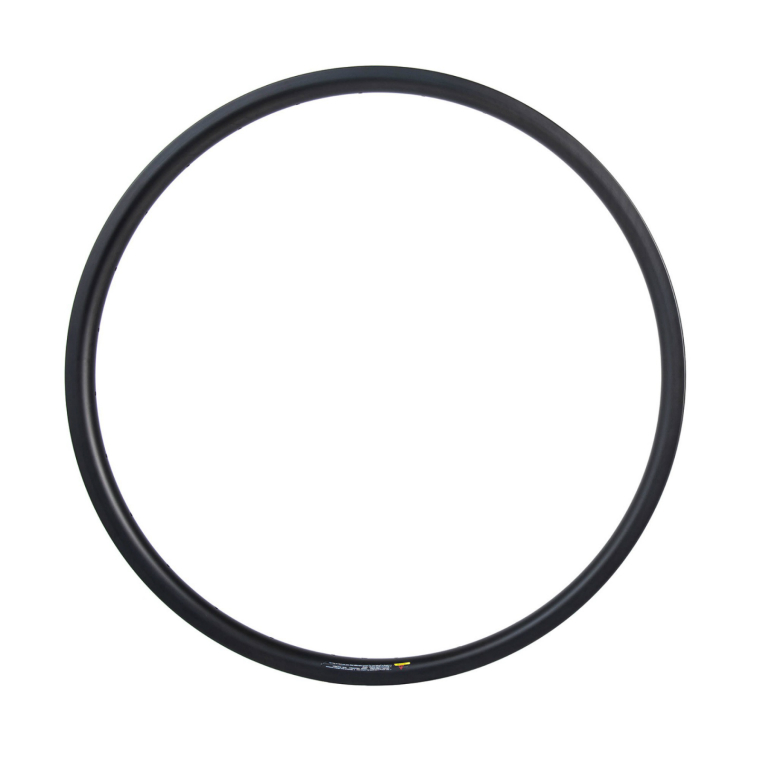

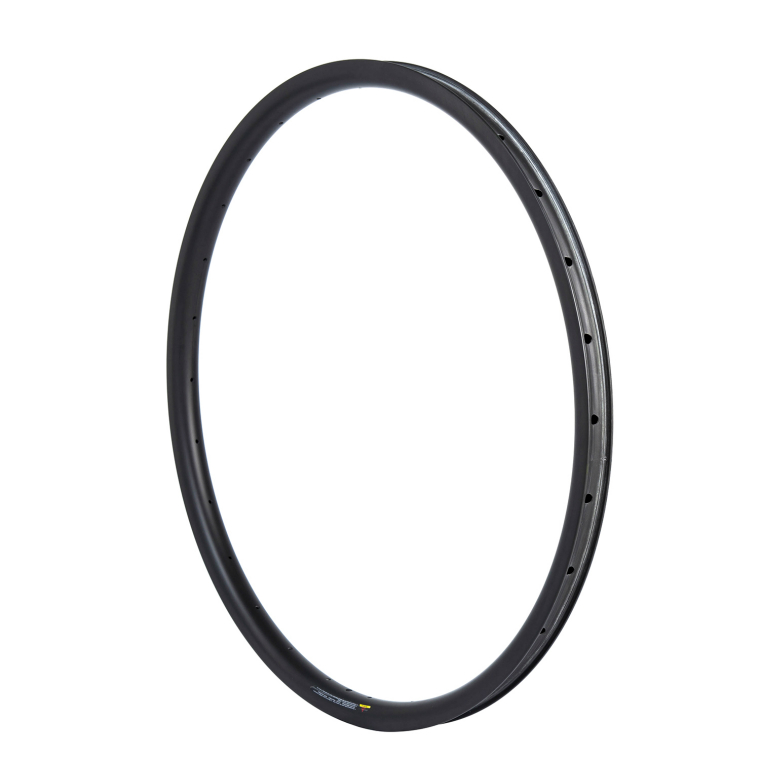

Carbon 29er MTB Asymmetric Hookless Rims

  • Item Num :
  • SC-27M23A29 / SC-30M24A29 / SC-35M25A29 / SC-40M25A29 / SC-45M25A29P
Product Details


Material: Toray T700

Size: 29er

Type: Asymmetric Hookless

Weave: UD / 3K / 12K

Finish: Matt / Glossy

Spoke Count: 16-32H

Nipple Hole: External / Internal

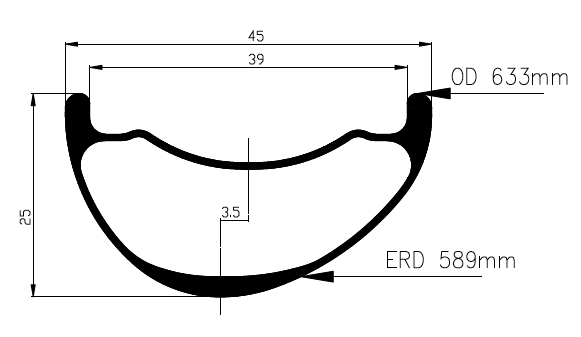

Outer Width: 27mm / 30mm / 35mm / 40mm / 45mm

Inner Width: 22mm / 24mm / 29mm / 34mm / 39mm

Depth: 23mm / 24mm / 25mm

Hookless Sidewall: 3mm

Offset: 2.6mm / 3mm

Weight for 22mm internal wide: 340g+/-15g (XC)

Weight for 24mm internal wide: 365g+/-15g (XC)   385g+/-15g (AM)

Weight for 29mm internal wide: 400g+/-15g (AM)   450g+/-15g (DH)

Weight for 34mm internal wide: 430g+/-15g (AM)   480g+/-15g (DH)

Weight for 39mm internal wide: 460g+/-15g (AM)   510g+/-15g (DH)

Flatness: ≤0.2mm

Roundness: ≤0.3mm

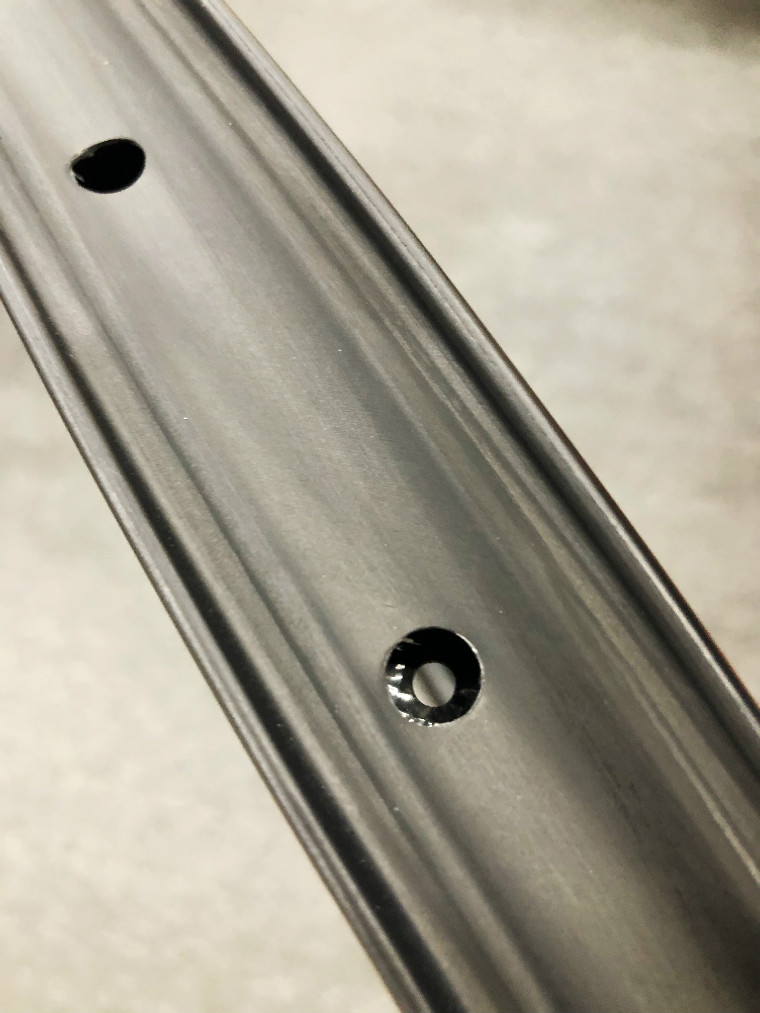

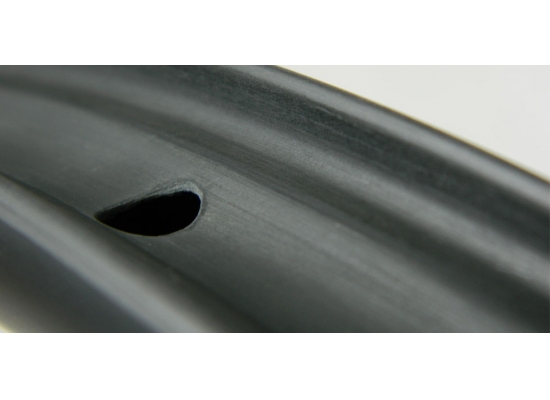

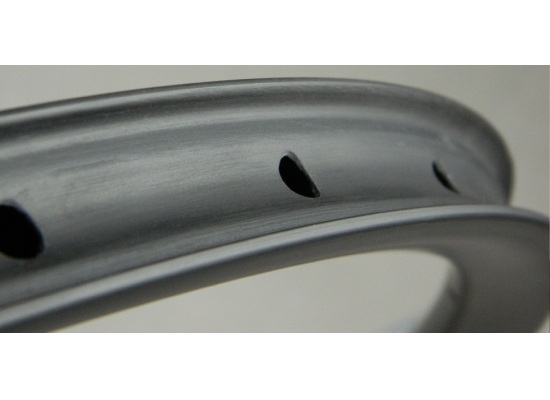

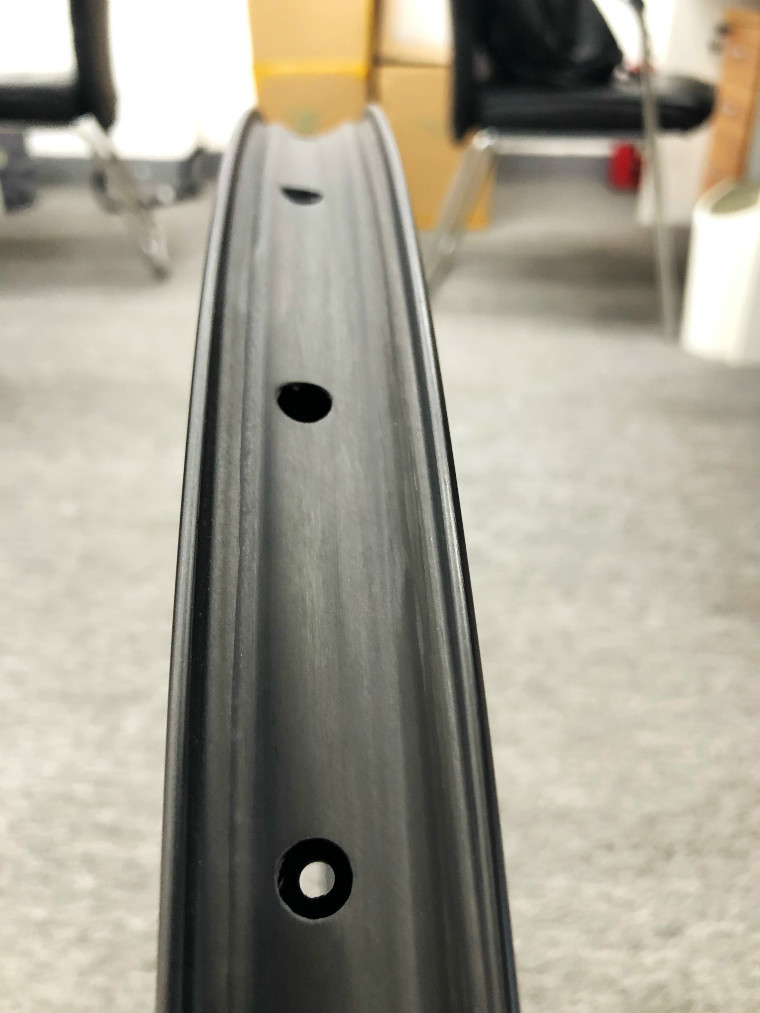

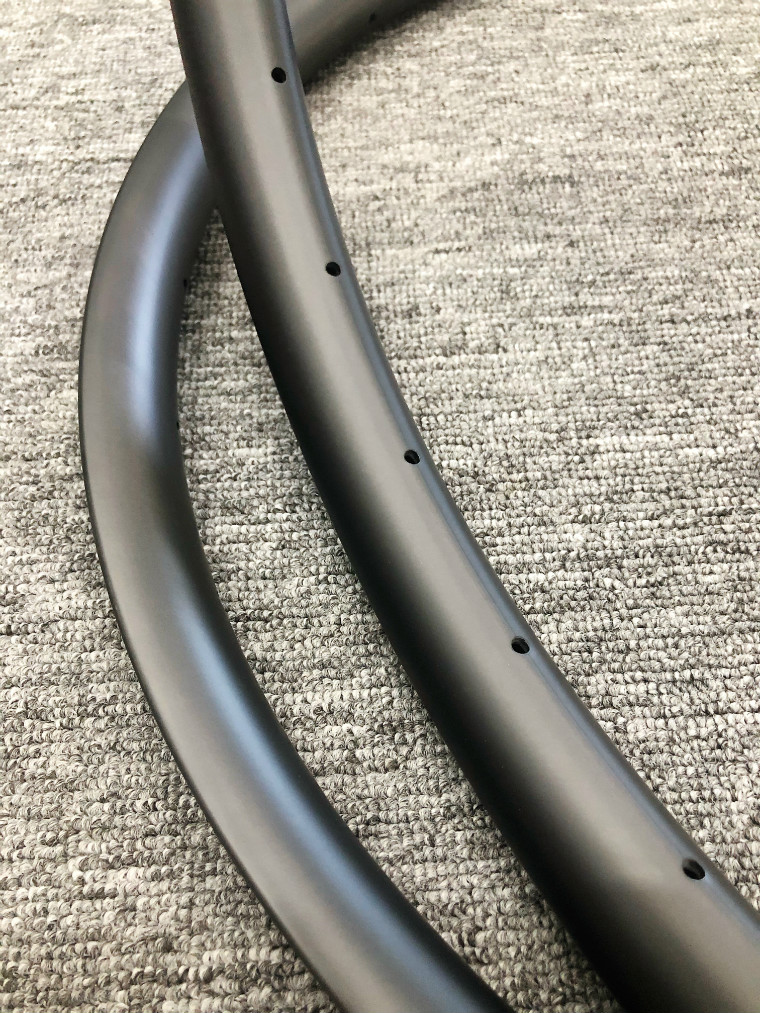

Super smooth 3k inside wall without excess resin.

Carbon fiber wrapped over to the bead area to provide the best impact resistance

Precise layup design results a light weight rim.

Lab impact test to guarantee the best strength.

Asymmetric design for better balance and stiffness.

Ability to run lower tire pressure and improve traction and rolling resistance.
