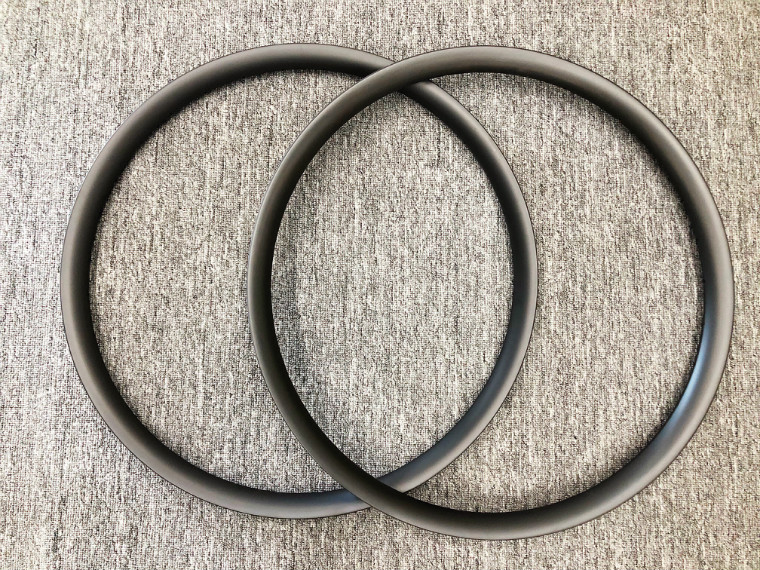

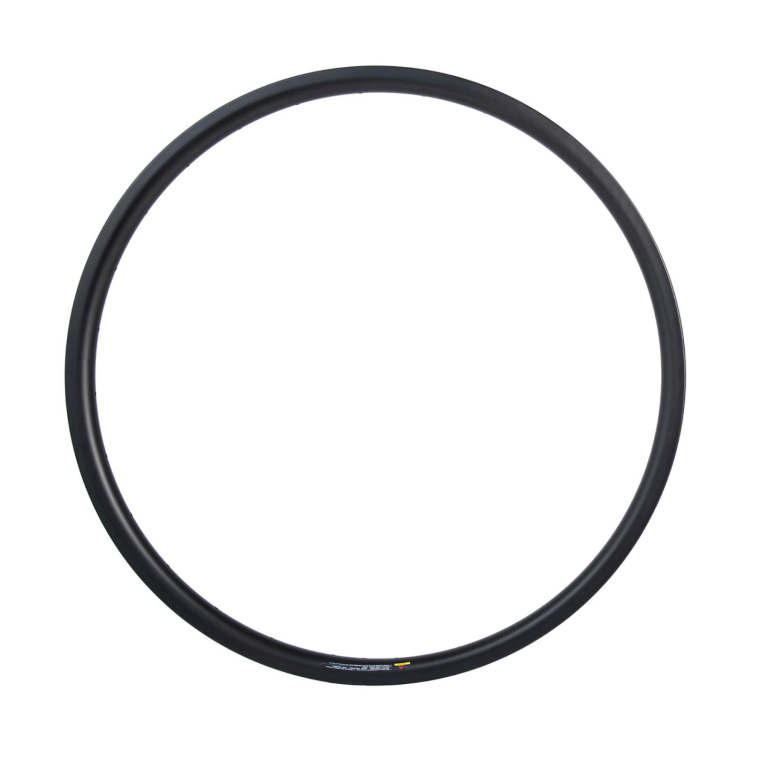

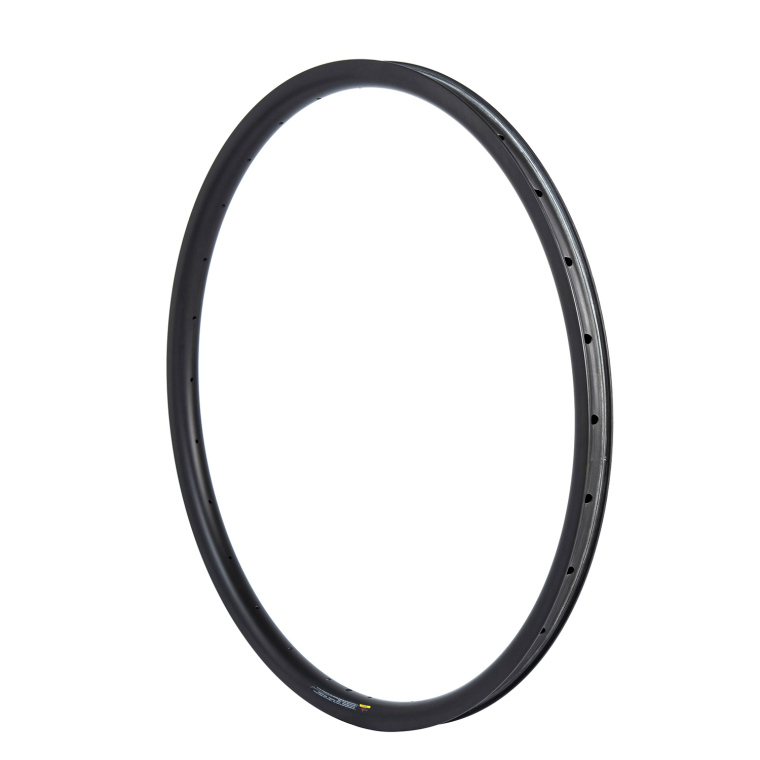

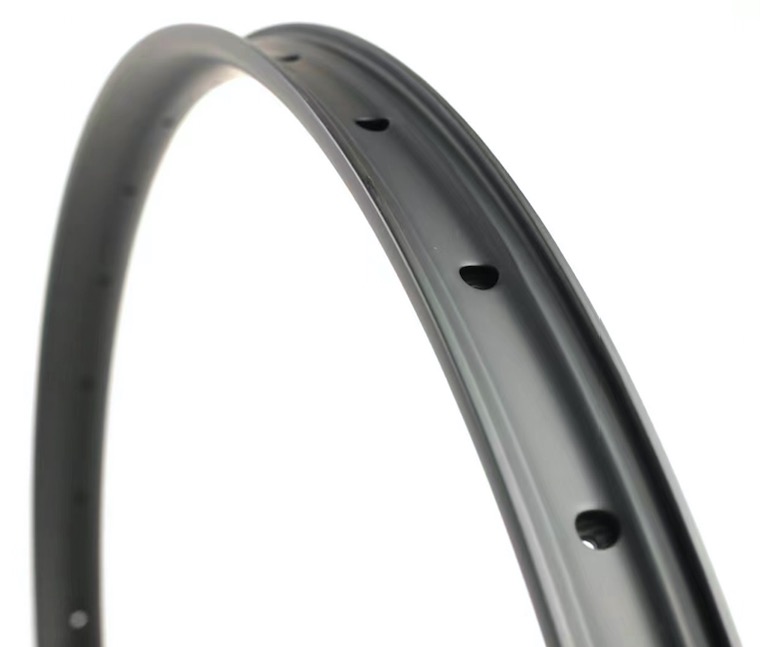

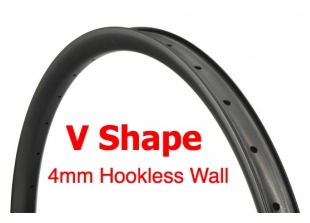

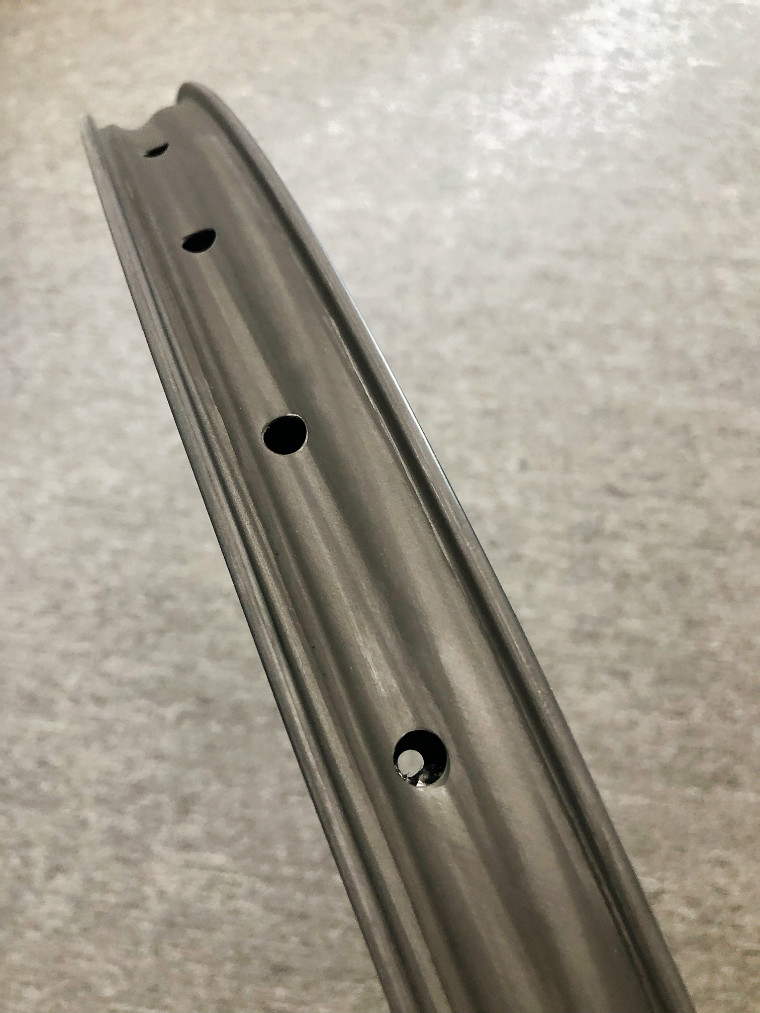

V Shape Carbon 29er MTB Asymmetric Hookless Rims

  • Item Num :
  • SC-33M25A29 / SC-38M28A29
Product Details

Specs

Material: Toray T700 / T800

Size: 29er

Type: Asymmetric Hookless

Weave: UD / 3K / 12K

Finish: Matt / Glossy

Spoke Count: 28H or 32H

Nipple Hole: External / Internal

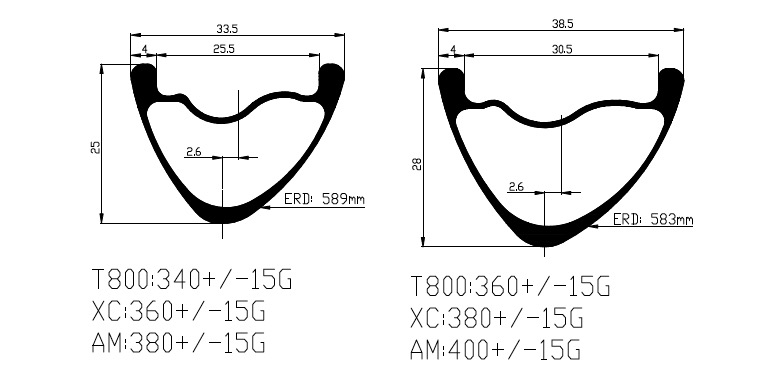

Outer Width: 33.5mm / 38.5mm

Inner Width: 25.5mm / 30.5mm

Depth: 25mm / 28mm

Hookless lip: 4mm

Offset: 2.6mm

Weight for 25.5mm internal wide: 340g+/-15g (T800 XC)  360g+/-15g (XC)  380g+/-15g (AM)

Weight for 30.5mm internal wide: 360g+/-15g (T800 XC)  380g+/-15g (XC)  400g+/-15g (AM)

Flatness: ≤0.2mm

Roundness: ≤0.3mm


Specs

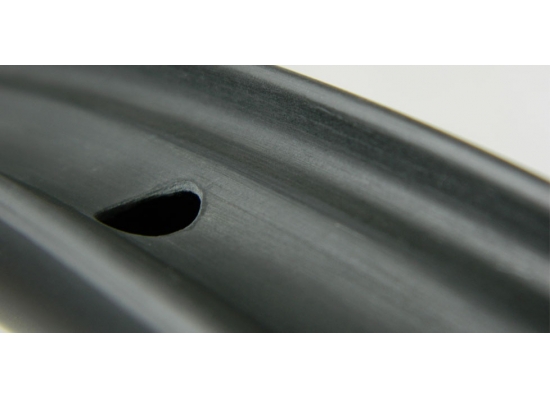

Super smooth 3k inside wall without excess resin.

Carbon fiber wrapped over to the bead area to provide the best impact resistance

Precise layup design results a light weight rim.

Lab impact test to guarantee the best strength.

Asymmetric design for better balance and stiffness.

Ability to run lower tire pressure and improve traction and rolling resistance.

Increased width at leading edge dissipates impact energy and prevent pinch flats.
